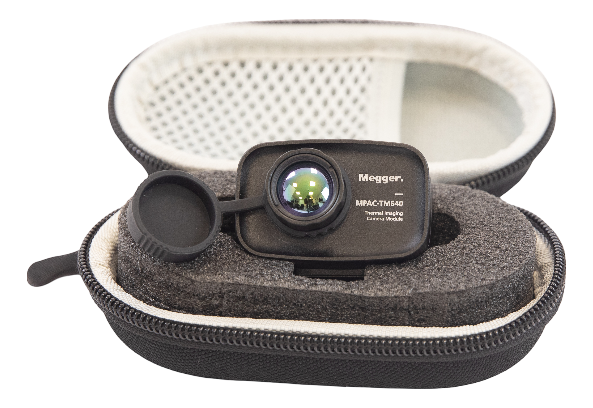

Thermal Camera Module, 384 x 288, for MPAC208

SKU: 1016-920

Optional thermal imaging module with 384 x 288 resolution for the MPAC208 and MPAC208-IECEx acoustic cameras. Adds side-by-side acoustic and thermal visualization to correlate heat signatures with ultrasonic anomalies.

$2,250.00

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Thermal Camera Module for MPAC208-Series Acoustic Cameras

Fitted to an MPAC208 or MPAC208-IECEx acoustic imaging camera, this module enables side-by-side acoustic and thermal visualization, letting users correlate heat signatures with acoustic anomalies for faster root-cause assessment.

Thermal resolution is 384 x 288. Requires an MPAC208 (1016-917) or MPAC208-IECEx (1016-918) camera. The module is not rated for use in explosive atmospheres.

Key Features

384 x 288 thermal resolution
Side-by-side acoustic and thermal visualization on the camera display
Correlates heat signatures with acoustic anomalies for root-cause assessment
Fits MPAC208 and MPAC208-IECEx cameras (1016-917 and 1016-918)
Not for use in explosive atmospheres

The Megger Thermal Camera Module, 384 x 288, for MPAC208 # 1016-920 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 6 models. Select a model below to view details.

Model	Description	Price
MPAC128 Professional Acoustic Imaging Camera 1015-886	Professional 128-microphone acoustic imaging camera for partial discharge detection in switchgear, corona inspection, and compressed-air leak surveys. Real-time visual overlay shows ultrasonic emission sources directly on the camera image.	$15,510.00	View Details →
MPAC128-ATEX Hazardous-Area Acoustic Imaging Camera 1015-885	Hazardous-area (II 3G Ex ic IIC T5 Gc) variant of the MPAC128 professional acoustic imaging camera. Detects partial discharge in switchgear, corona, and compressed-air leaks via 128-microphone array — rated for use in explosive atmospheres on gas platforms and petrochemical sites.	$28,955.00	View Details →
MPAC208 Acoustic Imaging Camera 1016-917	Professional 208-channel acoustic imaging camera for gas leak surveys, mechanical fault diagnosis, and partial discharge detection in high-voltage systems. Real-time visual overlay shows ultrasonic sources directly on the 13 MP camera image.	$19,500.00	View Details →
MPAC208 Pro Kit 1016-922	Complete acoustic imaging package: MPAC208 professional acoustic camera, MPAC-V verifier and ultrasound generator, and the high-resolution 640 x 512 thermal camera module.	$23,100.00	View Details →
MPAC208-IECEx Hazardous-Area Acoustic Imaging Camera 1016-918	IECEx-certified version of the MPAC208 acoustic imaging camera for inspection work in explosive atmospheres. Same 208-channel microphone array, three operating modes, and real-time acoustic overlay as the standard camera.	$25,250.00	View Details →
MPAC208-IECEx Pro Kit 1016-923	Hazardous-area acoustic imaging package: IECEx-certified MPAC208-IECEx camera, MPAC-V verifier and ultrasound generator, and the high-resolution 640 x 512 thermal camera module.	$28,700.00	View Details →

Accessories, replacement sensors, and parts for this product family.

Model	Description	Price
MPAC-V Acoustic Camera Verifier and Ultrasound Generator 1016-919	Field verification accessory and ultrasound generator for Megger MPAC acoustic imaging cameras. An automated routine in the camera verifies frequency response, measured sound pressure level, and microphone location calibration.	$2,450.00	View Details →
Thermal Camera Module, 384 x 288, for MPAC208Current 1016-920	Optional thermal imaging module with 384 x 288 resolution for the MPAC208 and MPAC208-IECEx acoustic cameras. Adds side-by-side acoustic and thermal visualization to correlate heat signatures with ultrasonic anomalies.	$2,250.00	Viewing
Thermal Camera Module, 640 x 512, for MPAC208 1016-921	Optional high-resolution thermal imaging module with 640 x 512 resolution for the MPAC208 and MPAC208-IECEx acoustic cameras. Adds side-by-side acoustic and thermal visualization to correlate heat signatures with ultrasonic anomalies.	$3,400.00	View Details →
