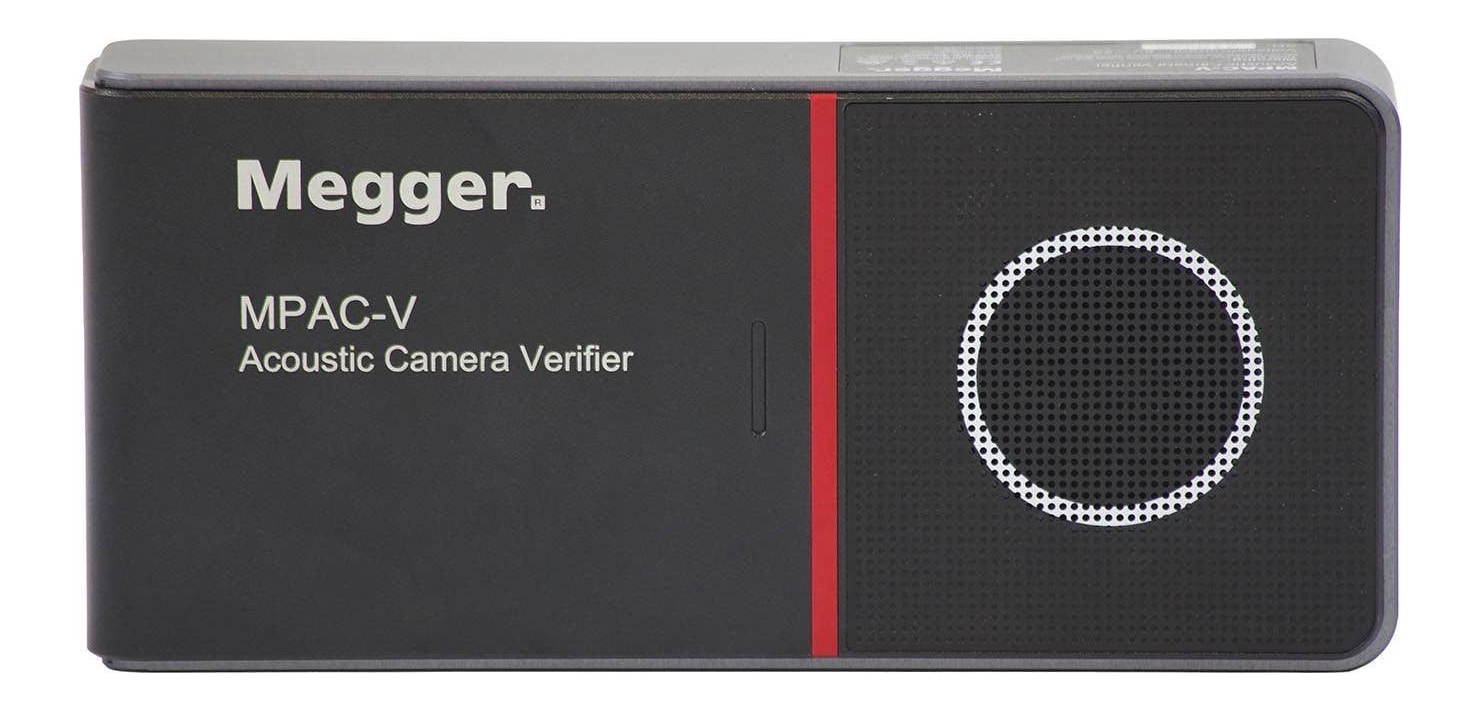

MPAC-V Acoustic Camera Verifier and Ultrasound Generator

SKU: 1016-919

Field verification accessory and ultrasound generator for Megger MPAC acoustic imaging cameras. An automated routine in the camera verifies frequency response, measured sound pressure level, and microphone location calibration.

$2,450.00

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Acoustic Camera Verifier and Ultrasound Generator

The Megger MPAC-V lets technicians verify the operational parameters of an MPAC acoustic imaging camera in the field. An automated routine built into the camera verifies the frequency response and the sound pressure level (SPL) the camera measures, and checks the visual location calibration of the microphone array.

The MPAC-V is used with the MPAC208 (1016-917), MPAC208-IECEx (1016-918), and MPAC128 cameras. It is not rated for use in explosive atmospheres.

Key Features

Combined camera verifier and ultrasound generator
Automated verification routine built into MPAC cameras
Verifies frequency response and measured sound pressure level (SPL)
Checks visual location calibration of the microphone array
Compatible with MPAC208, MPAC208-IECEx, and MPAC128
Not for use in explosive atmospheres

The Megger MPAC-V Acoustic Camera Verifier and Ultrasound Generator # 1016-919 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 6 models. Select a model below to view details.

Model	Description	Price
MPAC128 Professional Acoustic Imaging Camera 1015-886	Professional 128-microphone acoustic imaging camera for partial discharge detection in switchgear, corona inspection, and compressed-air leak surveys. Real-time visual overlay shows ultrasonic emission sources directly on the camera image.	$15,510.00	View Details →
MPAC128-ATEX Hazardous-Area Acoustic Imaging Camera 1015-885	Hazardous-area (II 3G Ex ic IIC T5 Gc) variant of the MPAC128 professional acoustic imaging camera. Detects partial discharge in switchgear, corona, and compressed-air leaks via 128-microphone array — rated for use in explosive atmospheres on gas platforms and petrochemical sites.	$28,955.00	View Details →
MPAC208 Acoustic Imaging Camera 1016-917	Professional 208-channel acoustic imaging camera for gas leak surveys, mechanical fault diagnosis, and partial discharge detection in high-voltage systems. Real-time visual overlay shows ultrasonic sources directly on the 13 MP camera image.	$19,500.00	View Details →
MPAC208 Pro Kit 1016-922	Complete acoustic imaging package: MPAC208 professional acoustic camera, MPAC-V verifier and ultrasound generator, and the high-resolution 640 x 512 thermal camera module.	$23,100.00	View Details →
MPAC208-IECEx Hazardous-Area Acoustic Imaging Camera 1016-918	IECEx-certified version of the MPAC208 acoustic imaging camera for inspection work in explosive atmospheres. Same 208-channel microphone array, three operating modes, and real-time acoustic overlay as the standard camera.	$25,250.00	View Details →
MPAC208-IECEx Pro Kit 1016-923	Hazardous-area acoustic imaging package: IECEx-certified MPAC208-IECEx camera, MPAC-V verifier and ultrasound generator, and the high-resolution 640 x 512 thermal camera module.	$28,700.00	View Details →

Accessories, replacement sensors, and parts for this product family.

Model	Description	Price
MPAC-V Acoustic Camera Verifier and Ultrasound GeneratorCurrent 1016-919	Field verification accessory and ultrasound generator for Megger MPAC acoustic imaging cameras. An automated routine in the camera verifies frequency response, measured sound pressure level, and microphone location calibration.	$2,450.00	Viewing
Thermal Camera Module, 384 x 288, for MPAC208 1016-920	Optional thermal imaging module with 384 x 288 resolution for the MPAC208 and MPAC208-IECEx acoustic cameras. Adds side-by-side acoustic and thermal visualization to correlate heat signatures with ultrasonic anomalies.	$2,250.00	View Details →
Thermal Camera Module, 640 x 512, for MPAC208 1016-921	Optional high-resolution thermal imaging module with 640 x 512 resolution for the MPAC208 and MPAC208-IECEx acoustic cameras. Adds side-by-side acoustic and thermal visualization to correlate heat signatures with ultrasonic anomalies.	$3,400.00	View Details →
