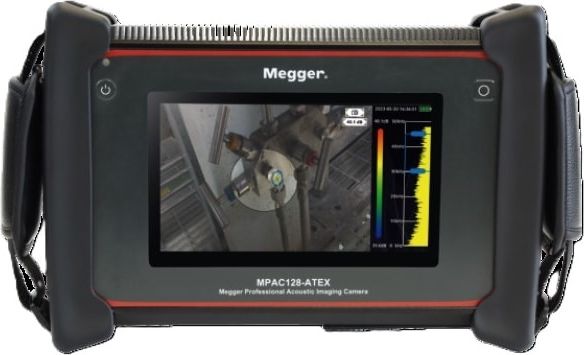

MPAC128-ATEX Hazardous-Area Acoustic Imaging Camera
SKU: 1015-885
Hazardous-area (II 3G Ex ic IIC T5 Gc) variant of the MPAC128 professional acoustic imaging camera. Detects partial discharge in switchgear, corona, and compressed-air leaks via 128-microphone array — rated for use in explosive atmospheres on gas platforms and petrochemical sites.
List price. Volume pricing available.
Professional Acoustic Imaging Camera (II 3G Ex ic IIC T5 Gc explosion-proof)
The MPAC128-ATEX is designed for hazardous Zone 2 areas and provides ATEX-certified safety without compromising performance. Identifying gas, pressure, and vacuum leaks, as well as corona, arcing, and partial discharge faults up to 120 meters away, including challenging areas, this model ensures prompt action to restore safety and system integrity in finished products, process plants, and electrical installations. The MPAC 128-ATEX quipped with 128 sensors, this high-resolution acoustic imager
The MPAC128 series also packs impressive reliability with the units ingenious self-check function, meticulously verifying internal components’ integrity and guaranteeing flawless operation of the microphone array, providing unwavering performance day in, day out.
Megger Professional Acoustic Imaging Cameras Overview
Megger MPAC128 and MPAC128-ATEX are hand-held professional acoustic imagers that support both audible and ultrasonic frequencies. The MPAC128-ATEX features a II 3G Ex ic IIC T5 Gc explosion-proof rating.
Key Features
- Designed for hazardous Zone 2 areas, and provides ATEX-certified safety
- Detects multiple gas types, pressurized gas leaks, and partial discharge
- Phase Resolved Partial Discharge (PRPD) for discrimination between different types of partial discharge
- Analyze waveform, spectrum, spectrogram, leakage assessment, discharge type discrimination
- IP54 rating; Wide operating temperature range from -20 to 50 degrees Celsius
- 8MP optical camera resolution; 3.04mm fixed focal length; Sound/Camera FOV: Horiz. - 62°; Vert. - 48°
- Microphone array: 128 channels MEMS microphones; Detection range: 0.3 – 120 meters
- Frequency band: 2kHz to 48kHz; Dynamic range: 0.5 dB to 12 dB (user adjustable)
- Leak detection rate: 1m 7 bar 0.37ml/s; 10m 7 bar 0.7ml/s
- 7in touchscreen display (Grayscale, Ironbow, Rainbow); Resolution 1024 x 600
The Megger MPAC128-ATEX Hazardous-Area Acoustic Imaging Camera # 1015-885 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681This product is part of a family with 6 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
MPAC128 Professional Acoustic Imaging Camera 1015-886 | $15,510.00 | View Details → |
MPAC128-ATEX Hazardous-Area Acoustic Imaging CameraCurrent 1015-885 | $28,955.00 | Viewing |
MPAC208 Acoustic Imaging Camera 1016-917 | $19,500.00 | View Details → |
MPAC208 Pro Kit 1016-922 | $23,100.00 | View Details → |
MPAC208-IECEx Hazardous-Area Acoustic Imaging Camera 1016-918 | $25,250.00 | View Details → |
MPAC208-IECEx Pro Kit 1016-923 | $28,700.00 | View Details → |
Accessories, replacement sensors, and parts for this product family.
| Model | Price | |
|---|---|---|
MPAC-V Acoustic Camera Verifier and Ultrasound Generator 1016-919 | $2,450.00 | View Details → |
Thermal Camera Module, 384 x 288, for MPAC208 1016-920 | $2,250.00 | View Details → |
Thermal Camera Module, 640 x 512, for MPAC208 1016-921 | $3,400.00 | View Details → |
