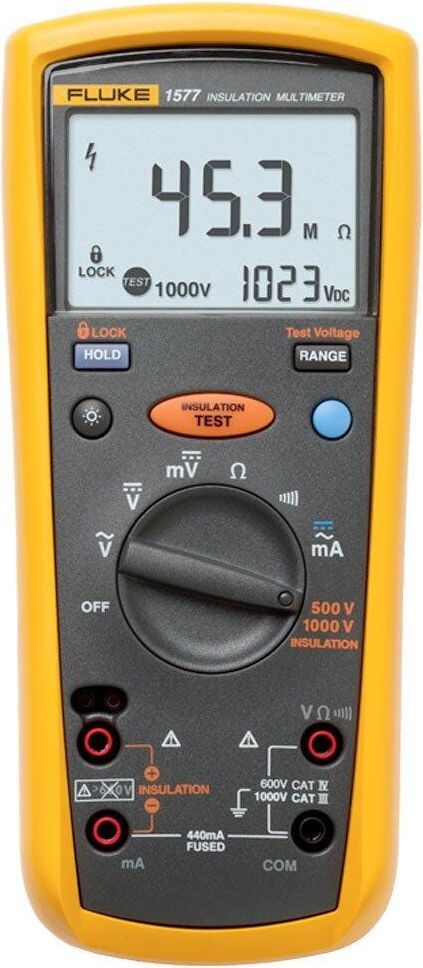

1577 Insulation Multimeter

SKU: FLUKE-1577

The Fluke 1577 Insulation Tester Multimeter combines an insulation resistance tester with a 1000V true RMS digital multimeter in one compact, handheld tool.

$1,011.91

List price. Volume pricing available.

Qty:

Electrical Test & Measurement Safety Power & Energy

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

The Fluke 1577 Insulation Tester Multimeter combines an insulation resistance tester with a 1000V true RMS digital multimeter in one compact, handheld tool.

Key Features

Insulation test voltages 500 V, 1000 V
Insulation test: 0.1 MΩ to 600 MΩ
Auto discharge of capacitive voltage
AC/DC Voltage and milliamps
Three-year warranty

The Fluke 1577 Insulation Multimeter # FLUKE-1577 is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 5 models. Select a model below to view details.

Model	Description	Maximum voltage	Warranty	Price
FLUKE-1587 FC	Fluke i400 AC current clamps extend the use of digital multimeters. Get a single range 400 A AC clamp in a compact shape.	1000 V AC rms from earth to ground, in compliance with EN61010	1 year	$1,080.55	View Details →
FLUKE-1587/I400 FC	Fluke i400 AC current clamps extend the use of digital multimeters. Get a single range 400 A AC clamp in a compact shape.	1000 V AC rms from earth to ground, in compliance with EN61010	1 year	$1,237.59	View Details →
FLUKE-1587 T	Fluke i400 AC current clamps extend the use of digital multimeters. Get a single range 400 A AC clamp in a compact shape.	1000 V AC rms from earth to ground, in compliance with EN61010	1 year	$1,245.91	View Details →
FLUKE-1577Current	The Fluke 1577 Insulation Tester Multimeter combines an insulation resistance tester with a 1000V true RMS digital multimeter in one compact, handheld tool.	1000 V	3 years	$1,011.91	Viewing
FLUKE-1587/MDT FC	2-in-1 Advanced Motor & Drive Kit with 9040, I400	1000 V AC rms from earth to ground, in compliance with EN61010	1 year	$1,631.75	View Details →

General	Specifications
Maximum voltage	1000 V
Accuracy	±(0.2%+2)
Maximum resolution	0.001 V
Maximum amps	400 mA
Amps accuracy	±(1.0%+2)
Maximum resistance	50 MΩ
maximum resolution	0.1Ω
Resistance	Insulation Test
Minimum test current @ 1kΩ/V	1 mA
Test voltages	500, 1000 V
1000 V	600 MΩ
50 V	0.01 MΩ
100 V	0.01 MΩ
250 V	0.1 MΩ
500 V	0.1 MΩ
Accuracy per test voltage	Environmental Specifications
Operating temperature	–20°C to +55°C
Storage temperature	-40°C to +60°C
Humidity (without condensation)	0% - 95% (10°C – 30°C)0% - 75% (30°C – 40°C)0% - 40% (40°C – 55°C)
Operating altitude	2000 m
Measurement	IEC 61010-2-033: CAT IV 600V / CAT III 1000V
Size	203 x 100 x 50 mm (with holster)
Weight	624 g
Warranty	3 years
Meter use	1000 hours
Insulation test use	Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
IP rating	IP40
