AC/DC Current Probe Model SL306 (2A, 1mV/mA & 80A, 10mV/a, Lead) - Model SL206

SKU: SL306

$453.00

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

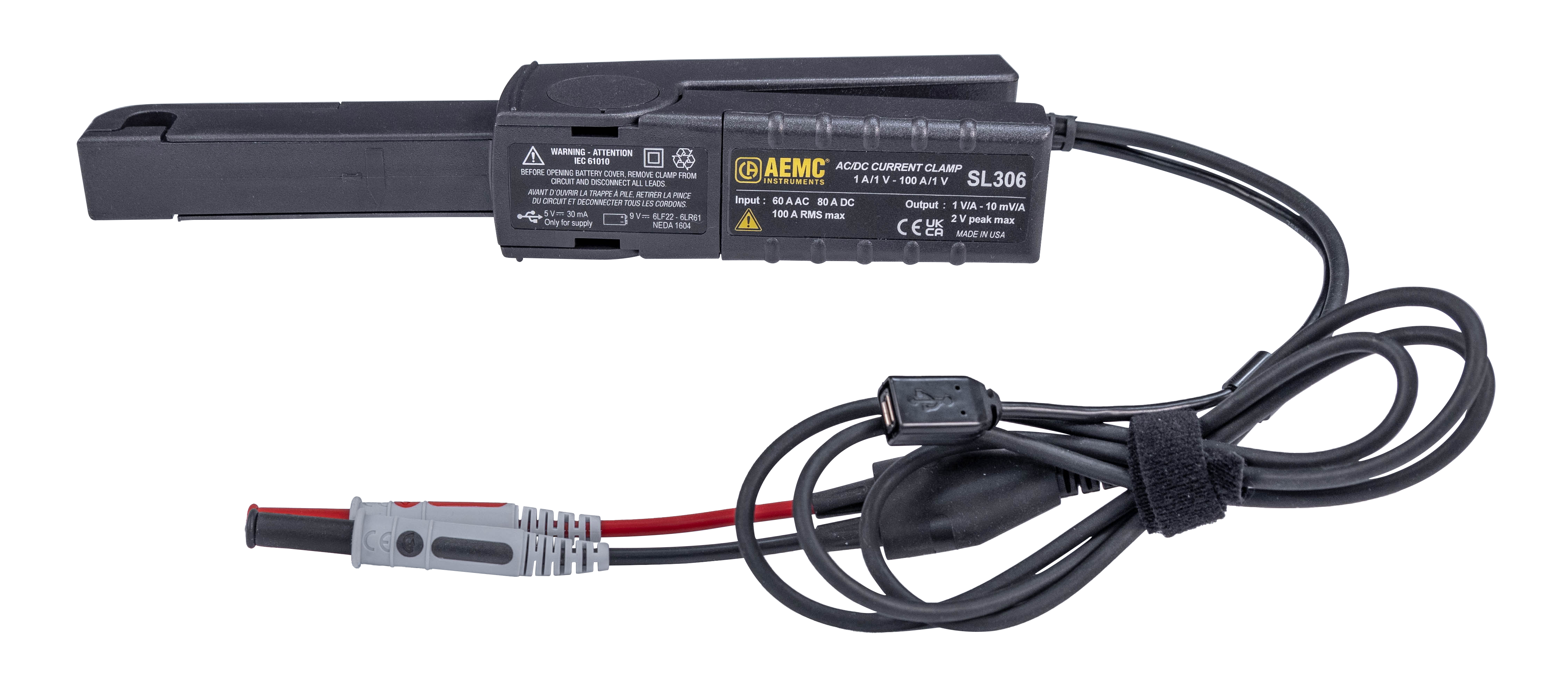

The SL306 AC/DC Current Probe – a compact Hall-effect current clamp designed to measure both AC and DC currents with high accuracy. The probes narrow jaws are designed to easily clamp around conductors in tight, crowded wiring spaces, allowing for non-intrusive current measurements without breaking the circuit, making it ideal for industrial and automotive environments. It offers dual sensitivity settings, enabling precise measurements from just a few milliamps up to 80 A, with a 20 kHz bandwidth. Powered by an internal battery or a standard 5V DC power adapter via its micro-USB port, the SL306 features automatic DC zero adjustment and a built-in standby function to extend battery life. The SL306 adapts to your power preferences, ensuring it’s ready whenever you are. The AC/DC Current Probe Model SL306 is universally compatible. Its cord is equipped with 2 insulated male banana plugs allowing it to be connected to and compatible with any AEMC and non-AEMC digital multimeters, voltmeters, or any voltage-measuring instruments.

The AEMC Instruments AC/DC Current Probe Model SL306 (2A, 1mV/mA & 80A, 10mV/a, Lead) - Model SL206 # SL306 is manufactured by AEMC Instruments. Valley Instrument Service is an authorized AEMC Instruments dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
