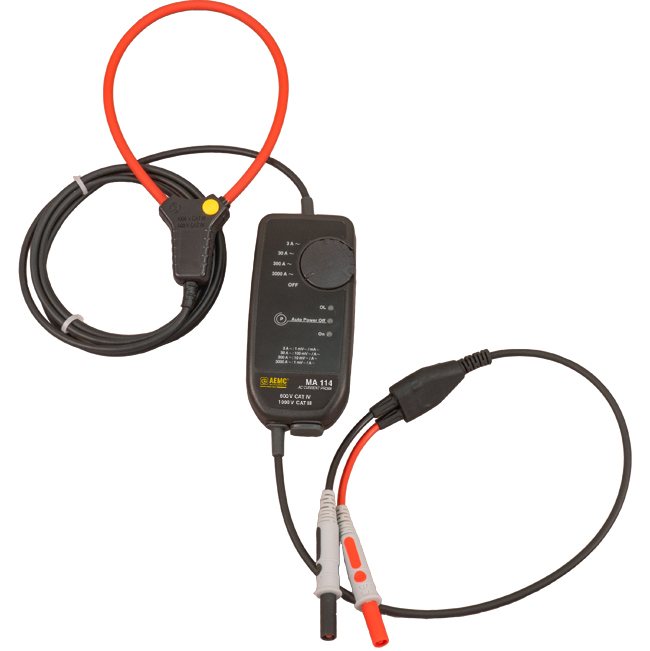

MiniFlex 14" Model MA114 (3A/1mV/mA, 30A/100mV/a, 300A/10mV/a, 3000A/1mV/A)

The Miniflex MA114 is an AC current sensor composed of a flexible Rogowski coil and an electronic module. The sensor permits measurements on conductors where standard clamp-on probes cannot be used. It can be installed in tight spaces, around cable bundles, bus bars, or even wrapped around irregular shapes. The Miniflex has a mV output proportional to the current measured for direct readings on digital multimeters, loggers, oscilloscopes and power or harmonic meters. The length of the flexible sensor is 14 in (35 cm) and clamp around conductor up to 4 in (10 cm). Four ranges are available, 3 A | 3 V, 30 A | 3 V, 300 A | 3 V and 3000 A | 3 V. The model MA114 is power by AA batteries or by a standard mains adapter (5 VDC, 100 mA) by a type B micro-USB connector

The AEMC Instruments MiniFlex 14" Model MA114 (3A/1mV/mA, 30A/100mV/a, 300A/10mV/a, 3000A/1mV/A) # MA114 is manufactured by AEMC Instruments. Valley Instrument Service is an authorized AEMC Instruments dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
