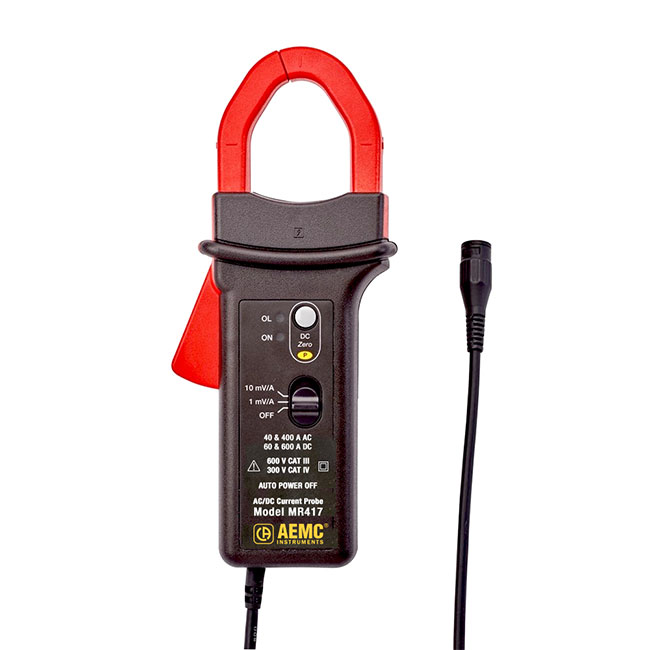

AC/DC Current Probe Model MR417 (40A AC, 60A DC, 10mV/A & 400A AC, 600A DC, 1mV/a, BNC Output)

SKU: MR417

$409.00

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

The MR417 is a hall effect current probe with 2 ranges designed for oscilloscopes, waveform displaying instruments, and other frequency sensitive displaying instruments with BNC inputs. The probe has a 6.5 ft (2m) lead terminated by a BNC connector and can measure up to 400AAC and 600ADC. The probe is powered by a 9V battery or by a standard 5V external power supply via a micro-USB connector (not supplied). The instruments design includes internal temperature compensation.

The AEMC Instruments AC/DC Current Probe Model MR417 (40A AC, 60A DC, 10mV/A & 400A AC, 600A DC, 1mV/a, BNC Output) # MR417 is manufactured by AEMC Instruments. Valley Instrument Service is an authorized AEMC Instruments dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

Accessories, replacement sensors, and parts for this product family.

Model	Description	Price
SR759	AC Current Probe Model SR759 (1A, 10A, 100A, 1000A, mV/a, Lead)	$474.00	View Details →
2138.66	Cable - Replacement 6 ft. USB Type A - Type B Micro for Models L452, 1110, 1227, 1246, 1510, 1821, 1822, 1823, & MR415 to MR527 Series	$20.75	View Details →
SL306	AC/DC Current Probe Model SL306 (2A, 1mV/mA & 80A, 10mV/a, Lead) - Model SL206	$453.00	View Details →
MA114	MiniFlex 14" Model MA114 (3A/1mV/mA, 30A/100mV/a, 300A/10mV/a, 3000A/1mV/A)	$650.00	View Details →
400D-10	Digital Flexprobe Model 400D-10 w/6' Lead (TRMS, 4A AC, 40A AC, 400A AC)	$336.00	View Details →
400D-24	Digital Flexprobe Model 400D-24 w/6' Lead (TRMS, 4A AC, 40A AC, 400A AC)	$390.00	View Details →
2620	Leakage Current Probe Model 2620 (4A, 1V/A & 400A, 1mV/A Output)	$840.00	View Details →
MN379	AC Current Probe Model MN379 (5A, 200mV/A & 100A, 10mV/a, Lead)	$310.00	View Details →
MN379T	AC Current Probe Model MN379T (5A, 200nV/A & 100A, 10mV/a, 10 ft. BNC Lead)	$359.00	View Details →
MN134	AC Current Probe Model MN134 (10A, 100mV/a, Lead) Probe Is CE - MN114	$220.00	View Details →
MN375	AC Current Probe Model MN375 (10A, 100mV/a, Lead)	$299.00	View Details →
SR661	AC Current Probe Model SR661 (10A, 100mV/a; 100A, 10mV/A & 1000A, 1mV/a, BNC)	$384.00	View Details →
SL261	ACDC Current Probe Model SL261 (10A, 100mV/A & 100A, 10mV/a, BNC) Replaced by CAT #2153.09 - Model SL361	$494.00	View Details →
SL361	AC/DC Current Probe Model SL361 (10A, 100mV/A & 100A, 10mV/a, BNC) - Model SL261	$509.00	View Details →
MN307	AC Current Probe Model MN307 (12A, 100mV/A AC, Lead)	$273.00	View Details →
MN255	AC Current Probe Model MN255 (20A, 100mV/A & 200A, 10mV/a, Lead) - Model MN253	$245.00	View Details →
MN261	AC Current Probe Model MN261 (20A, 100mV/A & 200A, 10mV/a, BNC)	$282.00	View Details →
JM861	AC Current Probe Model JM861 (30A, 10mV/a; 300A, 1mV/A & 3000A, 0.1mV/a, BNC)	$835.00	View Details →
4000D-14	Digital Flexprobe Model 4000D-14 w/6' Lead (TRMS, 40A AC, 400A AC, 4000A AC)	$320.00	View Details →
MR416	AC/DC Current Probe Model MR416 (40A AC, 60A DC, 10mV/A & 400A AC, 600A DC, 1mV/a, 4mm Banana Plug Lead)	$405.00	View Details →
MR417Current	AC/DC Current Probe Model MR417 (40A AC, 60A DC, 10mV/A & 400A AC, 600A DC, 1mV/a, BNC Output)	$409.00	Viewing
4000D-24	Digital Flexprobe Model 4000D-24 w/6' Lead (TRMS, 40A AC, 400A AC, 4000A AC)	$430.00	View Details →
MN02	AC Current Probe Model MN02 (100A, 1mA/a, Lead, 1% Accuracy)	$209.00	View Details →
MN05	AC Current Probe Model MN05 (100A, 1mV/A & 10A, 1mV/mA, Lead) - Model MN103	$240.00	View Details →
MR526	AC/DC Current Probe Model MR526 (100A AC, 150A DC, 10mV/A & 1000A AC, 1400A DC, 1mV/a, 4mm Banana Plug Lead)	$468.00	View Details →
MR527	AC/DC Current Probe Model MR527 (100A AC, 150A DC, 10mV/A & 1000A AC, 1400A DC, 1mV/a, BNC Output)	$519.00	View Details →
MH60	AC/DC Current Probe Model MH60 (100A, 1MHz, BNC) for use with any Oscilloscope	$750.00	View Details →
MN01	AC Current Probe Model MN01 (150A, 1mA/a, Lead) - MN106 & CAT #2115.75 - MN213	$99.00	View Details →
MN09	AC Current Probe Model MN09 (150A, 100mVDC/Aac, Lead)	$149.00	View Details →
MN312	AC Current Probe Model MN312 (150A, 1mA/a, Jack) Replacement for CAT #2116.25 - Model MN313	$230.00	View Details →
MN352	AC Current Probe Model MN352 (150A, 10mV/a, Jack)	$243.00	View Details →
MN353	AC Current Probe Model MN353 (150A, 10mV/a, Lead) - Model MN251	$279.00	View Details →
C177A	AC Current Probe Model C177A for use with Models C.A 6116/6116N, & C.A 6117	$495.00	View Details →
196A-24-BK	AmpFlex Sensor 24" (Waterproof - IP67) Model 196A-24-BK for Use Only with Models 8435, 8436, PEL 105, & PEL 115	$374.00	View Details →
MN291	AC Current Probe Model MN291 (200A, 100mV DC /a, Lead)	$250.00	View Details →
MN251T	AC Current Probe Model MN251T (200A, 1mV/a, 10 ft BNC Lead)	$295.00	View Details →
LM102	AC Current Probe Model LM102 (200A/1mA/a, Lead) - Model MN213	$320.00	View Details →
LM103	AC Current Probe Model LM103 (200A/1mv/a, Lead) - Model MN251	$325.00	View Details →
300-24-2-10	AmpFlex 30/300A, 24", 100mV/10mV/A	$509.00	View Details →
MF 300-10-2-10 HF	MiniFlex 30/300A, 10", 100mV/10mV/A High Frequency (For Any BNC Oscilloscope)	$695.00	View Details →
MR415	AC/DC Current Probe Model MR415 (400A AC, 1mV/A & 600A DC, 1mV/a, 4mm Banana Plug Lead)	$384.00	View Details →
MD301	AC Current Probe Model MD301 (500A, 1mVDC/Aac, Lead)	$265.00	View Details →
MD305	AC Current Probe Model MD305 (600A, 1mA/a, Lead)	$370.00	View Details →
JM810A	AC Current Probe Model JM810A (2000A, 1mA/a, Lead)	$740.00	View Details →
JM830A	AC Current Probe Model JM830A (3000A,.333mA/a, Lead)	$620.00	View Details →
SR600	AC Current Probe Model SR600 (1000A, 1mA/a, Jack) Replaced by CAT #2113.44 - Model SR604	$184.00	View Details →
SR601	AC Current Probe Model SR601 (1000A, 1mA/a, Jack)	$250.00	View Details →
SR651	AC Current Probe Model SR651 (1000A, 1mV/a, Jack)	$267.00	View Details →
SR604	AC Current Probe Model SR604 (1000A, 1mA/a, Lead)	$275.00	View Details →
SR701	AC Current Probe Model SR701 (1000A, 1mA/a, Jack)	$382.00	View Details →
