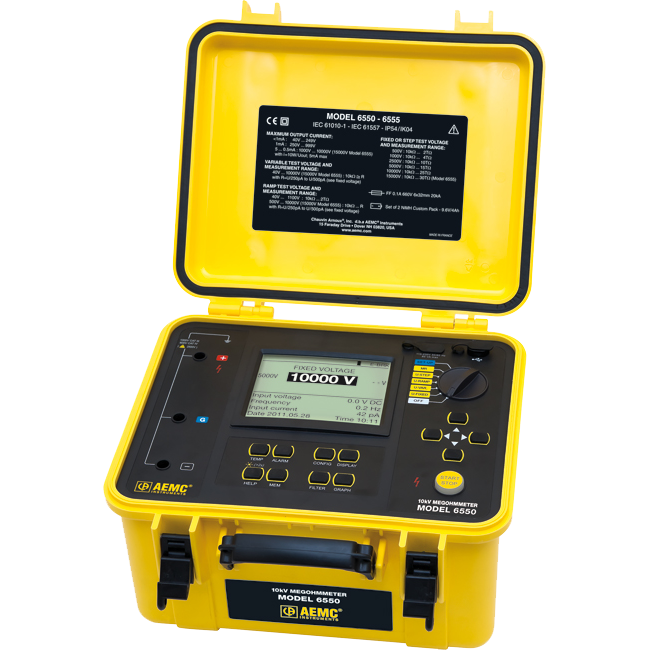

Megohmmeter Model 6550 (Graphical, Analog Bargraph, Backlight, Alarm, Timer, 500V, 1000V, 2500V, 5000V, 10kV, Ramp, Step V, Variable, Auto DAR/PI/DD, USB, w/DataView Software)

The Megohmmeter Model 6550 is a high-end portable measuring instrument intended for the measurement of a wide variety of electrical insulation resistance values on cables and devices operating at high voltage. It is the only fully automated 10,000 V graphical insulation tester. The True Megohmmeter Model 6550 is packaged in a rugged case that is IP65 when closed. Test results and configuration information are displayed on a graphical LCD screen, and are exportable via DataView (provided). This megohmmeter can operate on battery or AC power. The Model 6550 also offers the ability to program up to three step voltage profiles (40 to 10,000) V, each containing up to ten steps. There are also ramp profiles and three programmable test voltages in addition to the standard fixed voltages of (500, 1000, 2500, 5000 and 10,000) V.

The AEMC Instruments Megohmmeter Model 6550 (Graphical, Analog Bargraph, Backlight, Alarm, Timer, 500V, 1000V, 2500V, 5000V, 10kV, Ramp, Step V, Variable, Auto DAR/PI/DD, USB, w/DataView Software) # 6550 is manufactured by AEMC Instruments. Valley Instrument Service is an authorized AEMC Instruments dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
