Megohmmeter Model 1015 (Analog, 500V, 1000V, Resistance, Continuity)

SKU: 1015

$930.00

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

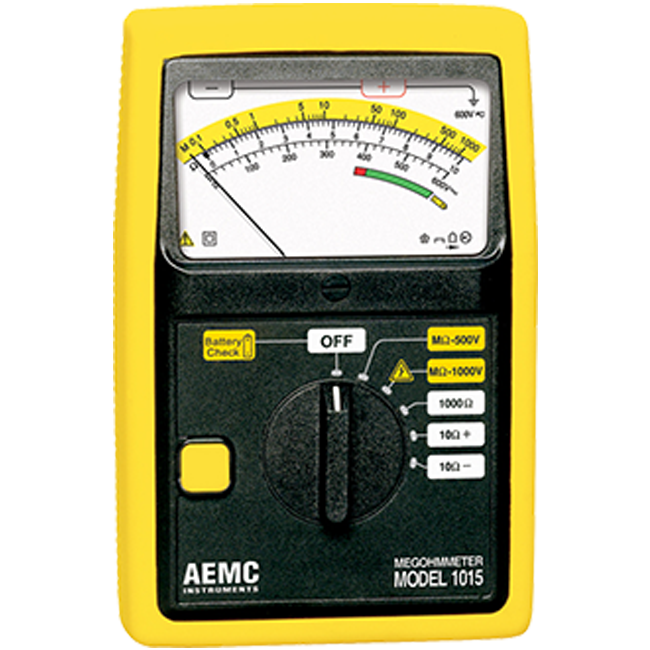

The Megohmmeter Model 1015 is a compact, self-contained, battery-operated True Megohmmeter. This practical, dependable and rugged insulation tester can be used for a broad range of plant and field service applications and is designed for use in harsh environments. The Model 1015 permits insulation resistance testing at 500V and 1000V, and resistance measurements up to 1000Ω. The Model 1015 is an analog instrument with four easy-to-read scales. The megohm scale is an easy-to-read log scale graduated from 0.1 to 1000MΩ. The ohm scale is linear with a range from 0 to 10Ω. The Model 1015 comes complete with carrying case, shockproof rubber housing, a pair of color-coded leads, with black test probe, red alligator clip. spare fuse, batteries and a user manual.

The AEMC Instruments Megohmmeter Model 1015 (Analog, 500V, 1000V, Resistance, Continuity) # 1015 is manufactured by AEMC Instruments. Valley Instrument Service is an authorized AEMC Instruments dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 16 models. Select a model below to view details.

Model	Description	Price
2155.55	Megohmmeter Model 6534 (Digital w/Analog Bargraph, Alarm, 10V, 25V, 100V, 250V, 500V, Ohm, Continuity, V, kΩ, Memory, w/DataView Bluetooth Software)	$1,110.00	View Details →
6536	Megohmmeter Model 6536 (Digital w/Analog Bargraph, Alarm, Variable 10V to 100V, Ohm, Continuity, V, kΩ)	$1,110.00	View Details →
6529	Megohmmeter Model 6529 (Digital, 50V, 100V, 250V, 500V, 1kV, 420kΩ, V, Continuity, Alarm, Timer, PI/DAR)	$359.00	View Details →
6526	Megohmmeter Model 6526 (Digital w/Analog Bargraph, Alarm, 50V, 100V, 250V, 500V, 1000V, Ohm, Continuity, V, kΩ, Capacitance, Memory, Bluetooth, w/DataView Software)	$985.00	View Details →
1060	Megohmmeter Model 1060 (Digital, Analog Bargraph, Alarm, Timer, 50V, 100V, 250V, 500V, 1000V, Auto DAR/PI, Resistance, Continuity, RS-232 w/DataView Software, 128kB Memory)	$2,750.00	View Details →
6527	Megohmmeter Model 6527 (Digital, 250V, 500V, 1000V, Continuity, 400kΩ, V)	$299.00	View Details →
6503	Megohmmeter Model 6503 (Hand-Cranked, 250V, 500V, 1000V)	$680.00	View Details →
6522	Megohmmeter Model 6522 (Digital w/Analog Bargraph, 250V, 500V, 1000V, Continuity, V)	$860.00	View Details →
1015Current	Megohmmeter Model 1015 (Analog, 500V, 1000V, Resistance, Continuity)	$930.00	Viewing
6505	Megohmmeter Model 6505 (Digital, Analog Bargraph, Backlight, 500V, 1000V, 2500V, 5000V, Auto DAR/PI)	$3,010.00	View Details →
