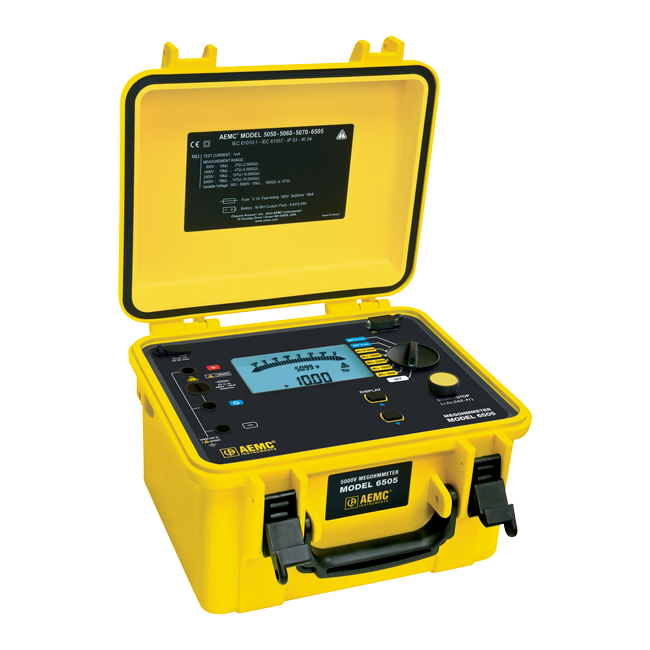

Megohmmeter Model 6505 (Digital, Analog Bargraph, Backlight, 500V, 1000V, 2500V, 5000V, Auto DAR/PI)

The Megohmmeter Model 6505 is a True Megohmmeter portable instrument housed in a rugged field case that operates on either battery or line power. It performs voltage, insulation, and capacitance measurements. This instrument contributes to the safety of electrical installations and equipment. Features include automatic calculation and presentation of the Dielectric Absorption Ratio (DAR) and Polarization Index (PI). The Model 6505 displays the test voltage, insulation resistance and the leakage current during the test. Capacitance of the sample and discharge voltage present at the test leads is displayed at the conclusion of the test. The Model 6505 is designed with a high level of built-in safety features. This meter incorporates test inhibit capabilities which will not allow test voltages to be generated if a live sample is detected. The test terminals are recessed to ensure operating safety.

The AEMC Instruments Megohmmeter Model 6505 (Digital, Analog Bargraph, Backlight, 500V, 1000V, 2500V, 5000V, Auto DAR/PI) # 6505 is manufactured by AEMC Instruments. Valley Instrument Service is an authorized AEMC Instruments dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
