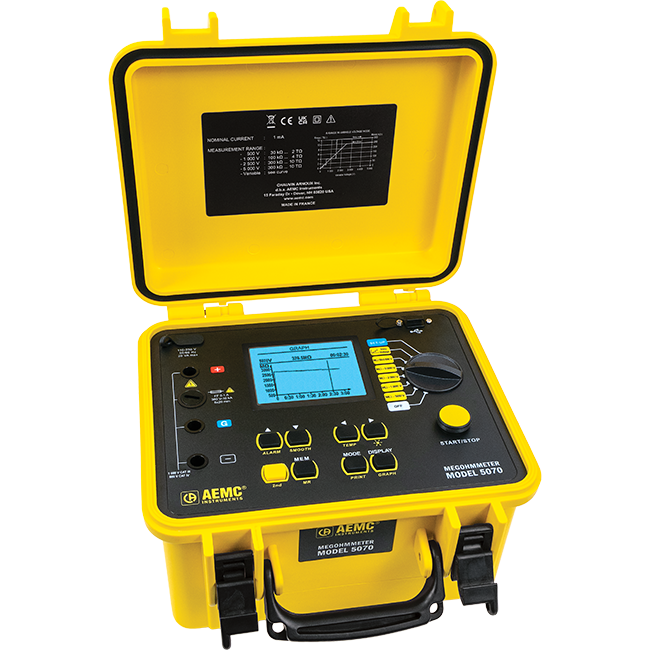

Megohmmeter Model 5070 (Graphical, Analog Bargraph, Backlight, Alarm, Timer, 500V, 1000V, 2500V, 5000V, Ramp, Auto DAR/PI/DD, USB Cable, w/DataView Software)

SKU: 5070

$4,845.00

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

The Megohmmeter Model 5070 is a fully automated 5000 V graphical insulation tester. This True Megohmmeter features selectable and programmable test voltage (40 to 5100) V and programmable temperature correction of resistance readings. The Model 5070 is the only megohmmeter to offer both a graphical plot of the test right on the instrument, as well as a digital presentation of the test results. It has a large graphic display with five line alphanumeric display and graph. It also offers the ability to program up to three step voltage profiles, each containing up to five steps. The Model 5070 has a USB port which provides the ability to configure the unit and run the test from a PC. Test results can be generated directly to a printer using the DataView graphing and analysis software.

The AEMC Instruments Megohmmeter Model 5070 (Graphical, Analog Bargraph, Backlight, Alarm, Timer, 500V, 1000V, 2500V, 5000V, Ramp, Auto DAR/PI/DD, USB Cable, w/DataView Software) # 5070 is manufactured by AEMC Instruments. Valley Instrument Service is an authorized AEMC Instruments dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 16 models. Select a model below to view details.

Model	Description	Price
2155.55	Megohmmeter Model 6534 (Digital w/Analog Bargraph, Alarm, 10V, 25V, 100V, 250V, 500V, Ohm, Continuity, V, kΩ, Memory, w/DataView Bluetooth Software)	$1,110.00	View Details →
6536	Megohmmeter Model 6536 (Digital w/Analog Bargraph, Alarm, Variable 10V to 100V, Ohm, Continuity, V, kΩ)	$1,110.00	View Details →
6529	Megohmmeter Model 6529 (Digital, 50V, 100V, 250V, 500V, 1kV, 420kΩ, V, Continuity, Alarm, Timer, PI/DAR)	$359.00	View Details →
6526	Megohmmeter Model 6526 (Digital w/Analog Bargraph, Alarm, 50V, 100V, 250V, 500V, 1000V, Ohm, Continuity, V, kΩ, Capacitance, Memory, Bluetooth, w/DataView Software)	$985.00	View Details →
1060	Megohmmeter Model 1060 (Digital, Analog Bargraph, Alarm, Timer, 50V, 100V, 250V, 500V, 1000V, Auto DAR/PI, Resistance, Continuity, RS-232 w/DataView Software, 128kB Memory)	$2,750.00	View Details →
6527	Megohmmeter Model 6527 (Digital, 250V, 500V, 1000V, Continuity, 400kΩ, V)	$299.00	View Details →
6503	Megohmmeter Model 6503 (Hand-Cranked, 250V, 500V, 1000V)	$680.00	View Details →
6522	Megohmmeter Model 6522 (Digital w/Analog Bargraph, 250V, 500V, 1000V, Continuity, V)	$860.00	View Details →
1015	Megohmmeter Model 1015 (Analog, 500V, 1000V, Resistance, Continuity)	$930.00	View Details →
6505	Megohmmeter Model 6505 (Digital, Analog Bargraph, Backlight, 500V, 1000V, 2500V, 5000V, Auto DAR/PI)	$3,010.00	View Details →

Accessories, replacement sensors, and parts for this product family.

Model	Description	Price
2119.84	Fuse - Set of 3, FF, 0.1A, 380V, 10kA, 5 x 20mm, for Models 5050, 5060, 5070 & 6505	$38.00	View Details →
2151.31	Lead - Replacement 1 ft 5kV Blue Jumper Lead for Megohmmeter Models 5050, 5060, 5070, & 6505	$152.00	View Details →
2136.80	Cable – 10 ft USB Type A to Type B for use with Models 8333, 8335, 8336, 8435, 8436, PEL 102,103,105, & 115 {Replacement DTR for Models 8510, 5060, 5070, CA 6116, CA1727, DL913, & DL914} Replaces Cat #2140.46	$19.50	View Details →
2151.30	Lead - Replacement Set of 3, 10 ft 5kV Safety w/Clips for Megohmmeter Models 5050, 5060, 5070, & 6505, 2119.77, & 2119.85	$599.00	View Details →
2119.45	Cable - Replacement PC RS-232, DB9 F/F 6 ft Null Modem Cable for 1060, 5060, 5070, 6250 & 6255	$21.00	View Details →
2151.32	Lead - Set of 3, 25 ft 5kV Safety w/Clips for Megohmmeter Models 5050, 5060, 5070, & 6505	$910.00	View Details →
2960.21	Battery - Rechargeable 9.6V NiMH (Replacement for Models 1060, 5050, 5060, 5070, 4630, 6470/6470-B, 6471, 6472 & 6505)	$195.00	View Details →
2135.43	12V DC to 120V AC 200 Watt for Vehicle Use (Use with Ground Testers, Megohmmeters & Micro-Ohmmeters)	$95.00	View Details →
2151.33	Lead - Set of 3, 45 ft 5kV Safety w/Integral Clips for Megohmmeter Models 5050, 5060, 5070, & 6505	$1,375.00	View Details →
5000.14	Power cord 115V for Micro-ohmmeters, Megohmmeters, Power Instruments, Oscilloscopes & Ground Testers	$11.60	View Details →
5000.97	Probe - Black Test Probe (1000V CAT IV, 15A, UL V2)	$9.40	View Details →
5000.60	Adapter - RS-232 to USB 2.0 Replacement for Models 3945-B, 1060, 5060, 5070, 6250, & 6255	$61.50	View Details →
2133.73	Bag - Extra Large Classic Tool Bag (18x9x12") (Replacement for Models 3945/3945-B, 6240, 6250, 6471, 6505, 5050, 5060, 5070, 8333, 8335, 8336, PEL 105, & PEL 115)	$60.00	View Details →
2133.72	Bag - Small Classic Tool Bag (13x9.8x9.5")	$39.00	View Details →
5100.02		$14.00	View Details →
5000.66	Megohmmeter Calibration Checker	$148.00	View Details →
