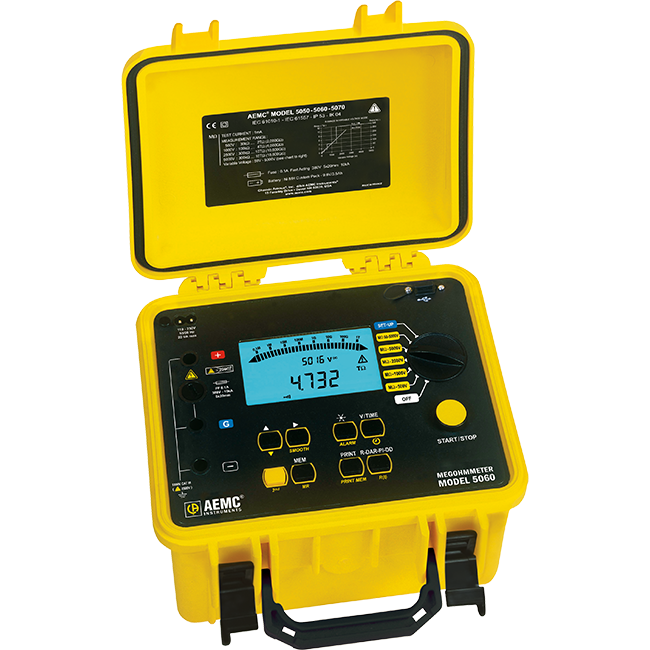

Megohmmeter Model 5060 (Digital, Analog Bargraph, Backlight, Alarm, Timer, 500V, 1000V, 2500V, 5000V, Auto DAR/PI/DD, USB Cable, w/DataView Software)

The Digital/Analog Megohmmeter Model 5060 is the latest design in 5000 V insulation testers. Features include automatic calculation and presentation of the Dielectric Absorption Ratio (DAR), Polarization Index (PI) and Dielectric Discharge (DD). The True Megohmmeter Model 5060 displays the test voltage, insulation resistance and the leakage current during the test. Capacitance of the sample and discharge voltage present at the test leads are displayed at the conclusion of the test. This meter is designed with the highest level of built in safety features. The Model 5060 can be operated from an internal rechargeable battery or from AC line power. A USB port provides the ability to configure the unit and run a test from the PC. Test reports can be generated directly from the instruments to a printer or through the PC using the DataView analysis software.

The AEMC Instruments Megohmmeter Model 5060 (Digital, Analog Bargraph, Backlight, Alarm, Timer, 500V, 1000V, 2500V, 5000V, Auto DAR/PI/DD, USB Cable, w/DataView Software) # 5060 is manufactured by AEMC Instruments. Valley Instrument Service is an authorized AEMC Instruments dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
