All Megger Products

Megger Cable Fault Location, Testing and Diagnostics

A–Z Most popular

38 products across 15 product families

Megger

Easyloc Cable Locator

Megger Easyloc Standard System — complete cable-location kit with the Easyloc RX Standard receiver and Easyloc TX transmitter. 33 kHz active mode plus passive radio (15–23 kHz) and power (50–250 Hz) frequencies for tracing cable runs and pipe networks. Push-button depth measurement: 0.3–5 m for cables, 0.3–7 m for sondes. Includes grounding set, ground stake, carry bag, and English user manual. IP56 receiver, IP54 transmitter, >40 hr battery operation.

$3,938.00

3 models

Megger

Cable Tracers

Click to compare & select →

Starting at $1,355.00

Megger

CFL535G Dual-Channel TDR

Compact dual-channel time domain reflectometer for locating high- and low-impedance faults on paired metallic telecom cables. 0.1 m resolution, up to 20 km range, velocity factor 0.2–0.99, five output impedances (25–125 Ω) with auto-match. Xpert mode auto-positions the cursor on fault events; stores up to 100 traces. IP54 ingress protection, CAT IV 150 V / CAT III 300 V; ships with TraceXpert PC software.

$4,872.00

3 models

Megger

CHM Series Cable Height Meters

Click to compare & select →

Starting at $1,160.00

Megger

TDR500 Time Domain Reflectometer

TDR500/3 handheld time domain reflectometer (cable fault locator) for telecom and communications cable work.

$1,370.25

Megger

CFL510G Time Domain Reflectometer

CFL510G handheld cable fault locator (time domain reflectometer) with 2 ns fast pulse and 5 km range. Supplied with bed-of-nails test lead set and BNC adapter for the US market.

$2,908.50

Megger

EZ-Thump 4 kV V3 Cable Fault Location System

Portable cable fault location system for low-voltage shielded and unshielded power cables. Combines TDR pre-location, 500 J / 4 kV surge pinpointing, DC breakdown testing, insulation resistance measurement and sheath fault testing in one battery- or mains-powered unit. Easy Go guided workflow; compact enough to fit in a car trunk for rapid response.

$21,280.00

Megger

MCT105 Cable and Circuit Tracer

Cable and circuit tracer for identifying individual circuits in distribution panels and tracing energized or de-energized cable routes. Transmitter/receiver pair with audible and visual indication.

$330.00

Megger

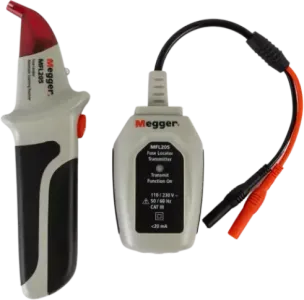

MFL205 Fuse and Circuit Breaker Locator

Identifies the individual fuse or circuit breaker feeding a circuit. Transmitter connects via 4 mm leads or supplied crocodile clips; receiver auto-tunes sensitivity and pinpoints the breaker with LED + audible indication.

$140.70
