Easyloc-S Cable and Pipe Locator Standard Set

SKU: 1015109

Megger Easyloc Standard System — complete cable-location kit with the Easyloc RX Standard receiver and Easyloc TX transmitter. 33 kHz active mode plus passive radio (15–23 kHz) and power (50–250 Hz) frequencies for tracing cable runs and pipe networks. Push-button depth measurement: 0.3–5 m for cables, 0.3–7 m for sondes. Includes grounding set, ground stake, carry bag, and English user manual. IP56 receiver, IP54 transmitter, >40 hr battery operation.

$3,938.00

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

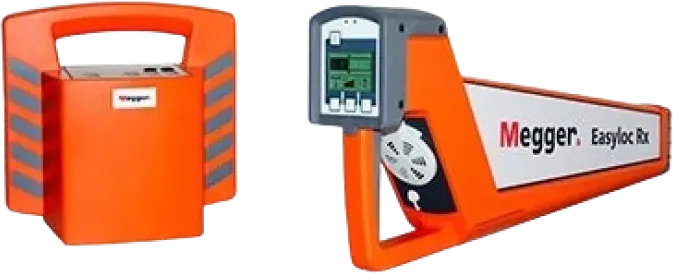

Easyloc Standard System — Cable Location Kit.

The Megger Easyloc Standard is a fast, simple-to-operate utility-locating system designed to detect and trace cable runs and pipe networks ahead of excavation work. It pairs the Easyloc RX Standard receiver with the Easyloc TX transmitter to give operators both audio signal and visual confirmation of buried services at all times — minimizing the risk of striking power cables or other utilities.

Active-mode tracing operates at 33 kHz with selectable 0.1 W or 0.5 W transmitter power (continuous or pulsed). Passive-mode detection covers radio frequencies (15–23 kHz) and power frequencies (50–250 Hz) so cables radiating from in-service distribution can be located without a transmitter at all. Push-button depth measurement is available even in passive mode: 0.3–5 m for energized cables, 0.3–7 m for sondes such as the Megger MLS 55-3.

A semi-automatic sensitivity control simplifies operation in noisy electromagnetic environments, and the receiver's big backlit display walks operators through the menu structure. The mains-voltage-proof transmitter output means no separating filter is required when injecting signal directly onto live cables (use the optional Easyclamp 100 mm transmitter clamp, P/N 2010176, for non-intrusive coupling without breaking power).

Suitable for water, rail, gas, power, highways, and telecommunication utilities — plus contractors, groundworks, building, civil engineering, street lighting, and landscaping companies. The complete sales-set bundle (P/N 1015109) ships with the RX Standard receiver, TX transmitter, grounding set, ground stake, carry bag, and English-language user manual.

Receiver: 10× AA cells, >40 hr operation, IP56 (IP67 to bottom of battery case), 2.5 kg, –20 °C to +55 °C operating range. Transmitter: 6× D cells, >40 hr operation, IP54, 2.6 kg.

The Megger Easyloc-S Cable and Pipe Locator Standard Set # 1015109 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

Accessories, replacement sensors, and parts for this product family.

Model	Description	Price
Easy Clamp 100 2010176	Megger Easyclamp 100 mm transmitter clamp — couples a 33 kHz signal from the Easyloc TX transmitter onto a live cable WITHOUT interrupting power, for non-intrusive route tracing. Clamps around cables up to 100 mm diameter; ideal where direct connection isn't possible or service can't be taken offline.	$1,028.50	View Details →
Easyloc Tx Transmitter 890005586	Megger Easyloc TX Basic/Standard transmitter set — high-performance 33 kHz transmitter for cable location with mains voltage-proof output (no separating filter required when injecting onto live cables). Selectable 0.1 W / 0.5 W output, continuous or pulsed signal. Ships with grounding set, ground stake, and English user manual. IP54, >40 hr operation on 6× D cells. Pairs with Easyloc RX Basic (890010236) or RX Standard (890003780).	$1,754.50	View Details →
Easyloc Rx Standard 890003780	Megger Easyloc RX Standard receiver — 33 kHz active-mode cable locator with semi-automatic sensitivity control and push-button depth measurement (0.3–5 m for cables, 0.3–7 m for sondes). Pairs with the Easyloc TX transmitter (P/N 890005586) or compatible 33 kHz sondes (e.g. MLS 55-3 / 810696). IP56 (IP67 to battery case), >40 hr operation on 10× AA cells. Ships with English user manual.	$2,106.50	View Details →
Easyloc House Connection Kit (US) 890008854	Megger Easyloc House Connection Set, US-Plug Version - Connection-Lead Bundle for Tracing Services from a Building to the Main Line. Direct-Connect Leads for Standard Mains, Cable Tv, and Telephone Sockets; the Easyloc TX Transmitter Plugs Into the Relevant Socket to Inject Signal Onto the in-House Circuit. Pairs with Any Easyloc RX Receiver. (German-Plug = 890008852; UK-Plug = 890008853.)	$434.50	View Details →
Headphones 890008650	Megger Easyloc headphones — for use with the Easyloc receiver in loud environments where the on-board audio cannot be heard reliably (heavy traffic, noisy job sites, plant rooms). Plugs into the receiver's headphone jack.	$114.40	View Details →
