TDR2050 US Dual Channel Power Plus

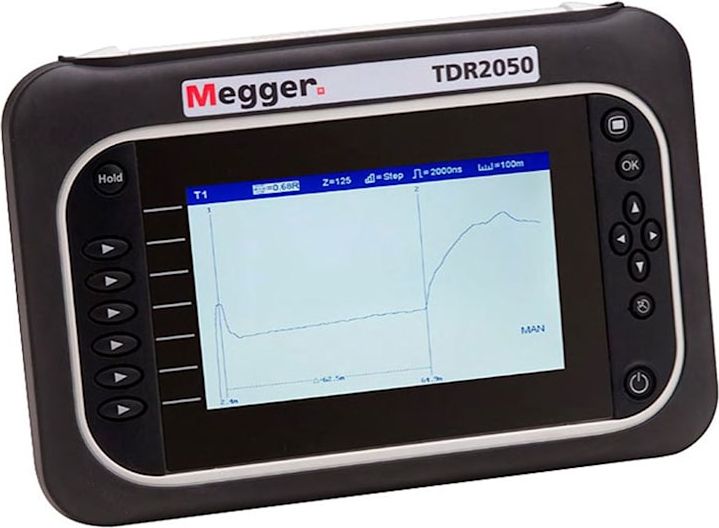

The Megger TDR2050 Advanced Dual Channel Time Domain Reflectometer is part of the TDR2000 series of TDR devices available from Megger. All of these instruments have been specifically designed to locate faults in electrical power supply cables. The TDR2050 is at the top of this range and includes some of the most advanced TDR features currently available on any device.

The unit features a full-color high resolution 800x480 pixel WVGA display with backlight and adjustable contrast, making it easier to find faults on paired metallic cables. Minimum resolution is 0.1m / 0.3ft with a maximum range of 20km / 65kft depending on velocity factor and cable type. Velocity factor can be adjusted depending on the application between 0.2 and 0.99.

The TDR2050 features an IP54 rating, meaning the unit's outer casing is secure against limited dust ingress and light water spray. The unit is safety rated to CAT IV 600 V and features an EMC rating of BS EN 61326-1. The included standard fused test leads are also rated to CAT IV 600 V and are dust and weatherproof to IP54 as well.

The TDR2050 also includes an AUTO selection feature which makes TDR trace diagnosis faster by automatically choosing the best trace parameters depending on the range required. Users are able to manually override this function in order to fine tune and identify difficult faults.

With dual trace and dual cursor functions on the TDR2050, users are in complete control and can instantly determine distances between two points.

Key Features

• CAT IV 600 V input protection filter built-in
• Step and pulse TDR selections
• Distance dependent gain
• Trace tagging
• 2ns pulse width
• Designed for use on all metallic paired cables
