Easy Clamp 100

SKU: 2010176

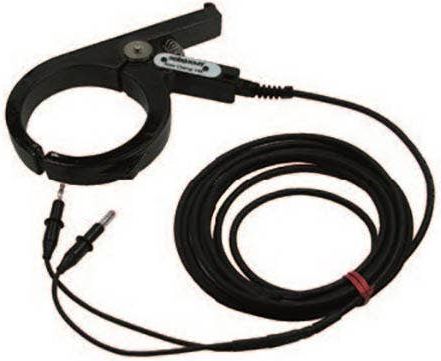

Megger Easyclamp 100 mm transmitter clamp — couples a 33 kHz signal from the Easyloc TX transmitter onto a live cable WITHOUT interrupting power, for non-intrusive route tracing. Clamps around cables up to 100 mm diameter; ideal where direct connection isn't possible or service can't be taken offline.

$1,028.50

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

The Megger Easy Clamp 100 # 2010176 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

Accessories, replacement sensors, and parts for this product family.

Model	Description	Price
Easy Clamp 100Current 2010176	Megger Easyclamp 100 mm transmitter clamp — couples a 33 kHz signal from the Easyloc TX transmitter onto a live cable WITHOUT interrupting power, for non-intrusive route tracing. Clamps around cables up to 100 mm diameter; ideal where direct connection isn't possible or service can't be taken offline.	$1,028.50	Viewing
Easyloc Tx Transmitter 890005586	Megger Easyloc TX Basic/Standard transmitter set — high-performance 33 kHz transmitter for cable location with mains voltage-proof output (no separating filter required when injecting onto live cables). Selectable 0.1 W / 0.5 W output, continuous or pulsed signal. Ships with grounding set, ground stake, and English user manual. IP54, >40 hr operation on 6× D cells. Pairs with Easyloc RX Basic (890010236) or RX Standard (890003780).	$1,754.50	View Details →
Easyloc Rx Standard 890003780	Megger Easyloc RX Standard receiver — 33 kHz active-mode cable locator with semi-automatic sensitivity control and push-button depth measurement (0.3–5 m for cables, 0.3–7 m for sondes). Pairs with the Easyloc TX transmitter (P/N 890005586) or compatible 33 kHz sondes (e.g. MLS 55-3 / 810696). IP56 (IP67 to battery case), >40 hr operation on 10× AA cells. Ships with English user manual.	$2,106.50	View Details →
Easyloc House Connection Kit (US) 890008854	Megger Easyloc House Connection Set, US-Plug Version - Connection-Lead Bundle for Tracing Services from a Building to the Main Line. Direct-Connect Leads for Standard Mains, Cable Tv, and Telephone Sockets; the Easyloc TX Transmitter Plugs Into the Relevant Socket to Inject Signal Onto the in-House Circuit. Pairs with Any Easyloc RX Receiver. (German-Plug = 890008852; UK-Plug = 890008853.)	$434.50	View Details →
Headphones 890008650	Megger Easyloc headphones — for use with the Easyloc receiver in loud environments where the on-board audio cannot be heard reliably (heavy traffic, noisy job sites, plant rooms). Plugs into the receiver's headphone jack.	$114.40	View Details →
