PD Scan Set 3 — Professional Switchgear Set + Cable Sensor
SKU: 1011123
Professional Switchgear PD Scan Kit (Set 3) with Parabolic Acoustic Sensor and Bluetooth Headphones
List price. Volume pricing available.
PD Scan Set 3 is the professional switchgear configuration with a cable sensor. The PD Scan is Megger's handheld partial discharge scanner for medium and high voltage switchgear. It detects and logs partial discharge activity using internal TEV and airborne acoustic sensors, and accepts external TEV, HFCT, acoustic, and contact-probe sensors, helping maintenance teams find insulation defects before they lead to failure.

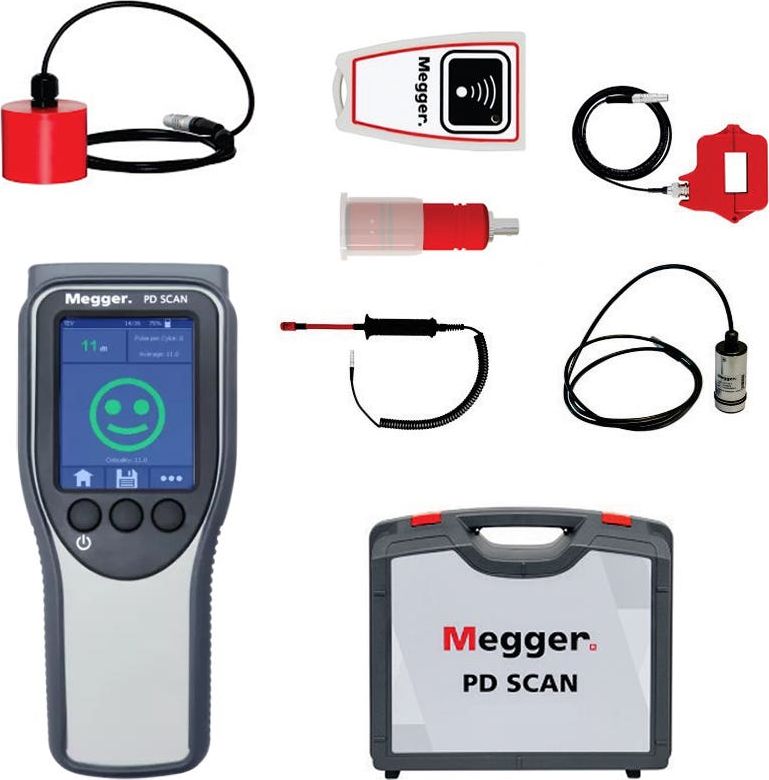

Included in the set: PD Scan main unit, flexible acoustic sensor, acoustic contact probe, HFCT cable sensor, external TEV sensor, temperature and humidity sensor, function tester, charger with USB cable, Bluetooth headphone, UNI transport case, and a USB stick with the operating manual and reporting software.
The Megger PD Scan Set 3 — Professional Switchgear Set + Cable Sensor # 1011123 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681This product is part of a family with 4 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
1 — Basic Switchgear Set 1011121 | $8,860.50 | View Details → |
2 — Basic Switchgear Set + Cable Sensor 1011122 | $9,168.50 | View Details → |
3 — Professional Switchgear Set + Cable SensorCurrent 1011123 | $11,456.50 | Viewing |
4 — Professional Switchgear Set + Cable & Outdoor Sensors 1011124 | $12,958.00 | View Details → |
Accessories, replacement sensors, and parts for this product family.
| Model | Price | |
|---|---|---|
Adapter Cable USB-C to 3.5 mm (for PD Scan Headphone) 90026230 | $46.20 | View Details → |
AA FR130 Flexible Acoustic Receiver 1009757 | $819.50 | View Details → |
AA PR400-1 Parabolic Acoustic Sensor 1012287 | $1,820.50 | View Details → |
ACP 30-1 Piezo Acoustic Sensor 1012924 | $1,028.50 | View Details → |
Bluetooth Headphone (for PD Scan) 90028677 | $159.50 | View Details → |
FC 1 Function Checker 1010219 | $125.40 | View Details → |
HFCT-20 Permanent Mini High-Frequency Current Transformer 1006296 | $231.00 | View Details → |
PD Scan Demonstrator Box 1011423 | $1,628.00 | View Details → |
PD Scan WMSD Wireless Measurement Storage Device 1012538 | $1,914.00 | View Details → |
PDK Standard Transport Case (for PD Scan Sets 1 and 2) 90026227 | $319.00 | View Details → |
PDK UNI Universal Transport Case (for PD Scan) 90031295 | $742.50 | View Details → |
SC40 HFCT Sensor 1009667 | $275.00 | View Details → |
SC60 HFCT Sensor 1012681 | $1,160.50 | View Details → |
Standard Headphone (for PD Scan) 90026232 | $46.20 | View Details → |
TEV C900-PD External TEV Sensor 1010524 | $264.00 | View Details → |
THS 55 Temperature/Humidity Sensor 1010217 | $401.50 | View Details → |
VK 132 HFCT Sensor Cable (for PD Scan) 90026538 | $159.50 | View Details → |
