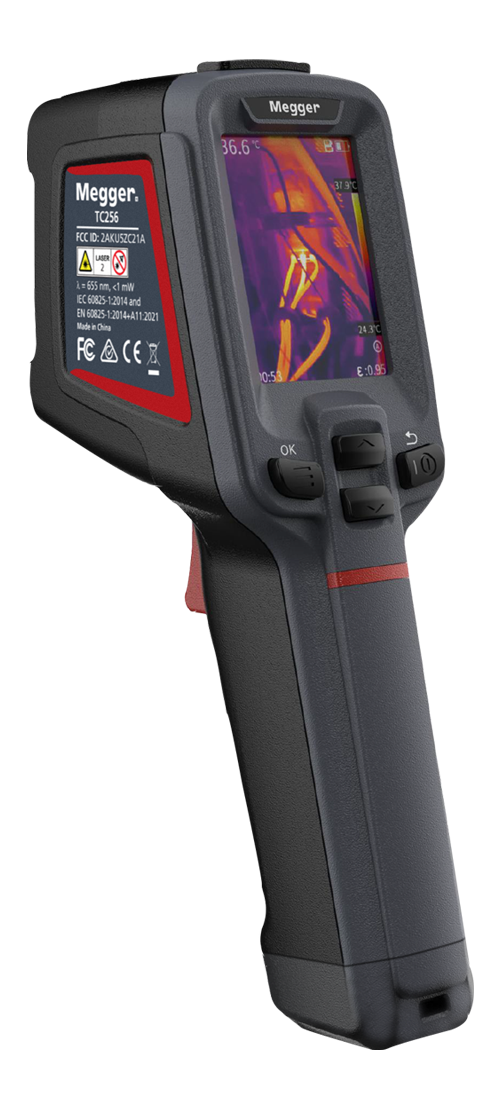

TC256 Thermal Camera

Professional Thermal Camera with Wi-Fi and Autofocus

The Megger TC256 thermal camera provides 256 x 192 resolution with IR-Perfclear real-time image enhancement and super-resolution reconstruction to 512 x 384, presented on a 2.4-inch color screen with InfraRed, Visible Light, Multi-Image Fusion, and Picture-in-Picture modes from its 2 MP visible-light camera. Automatic focusing and a 45 mK detector deliver crisp thermal detail.

The measurement range spans -20°C to 550°C with automatic range switching and accuracy of ±2°C or ±2%, whichever is greater. Center-spot and three fixed-area analysis, a full-screen temperature threshold alarm, and adjustable emissivity, reflected temperature, and target distance cover routine diagnostic work.

Wi-Fi connects the camera to a mobile device for image transfer and real-time video through the Thermography app, while the ThermoLink PC application receives streamed video for analysis. Photos and video record to 16 GB of internal storage as JPG and IRGD files with embedded temperature data, and firmware updates arrive over the air.

The camera runs up to 11 hours per charge, charges over USB-C including while operating, and carries an IP54 rating with a 2-meter drop test at 375 g. Each camera ships with a rigid protective case, wrist strap, power adapter with plug adaptors, USB-C cable, quick start guide, and calibration certificate.

Typical applications include domestic, commercial, and industrial electrical circuits, distribution boards and cabling, motor and rotating-machine maintenance, air conditioning and heating systems, solar PV installations, heat-loss surveys and building insulation, IT systems, and air-leak and moisture investigations.

Key Features

• 256 x 192 high-sensitivity VOx infrared detector (7.5 to 14 µm), 45 mK NETD
• Real-time super-resolution reconstruction to 512 x 384
• Automatic focus; IR-Perfclear image enhancement
• -20°C to 550°C auto-switching range; ±2°C or ±2% accuracy
• Wi-Fi image and real-time video transmission to the Thermography mobile app
• 2.4-inch color LCD with fusion and picture-in-picture modes
• 2 MP visible-light camera; laser indication
• Video streaming to the ThermoLink PC application; OTA firmware updates
• 16 GB internal storage; USB-C interface; tripod mount
• Up to 11 hours per charge; IP54; 2-meter drop tested; 375 g

The Megger TC256 Thermal Camera # 1016-972 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
