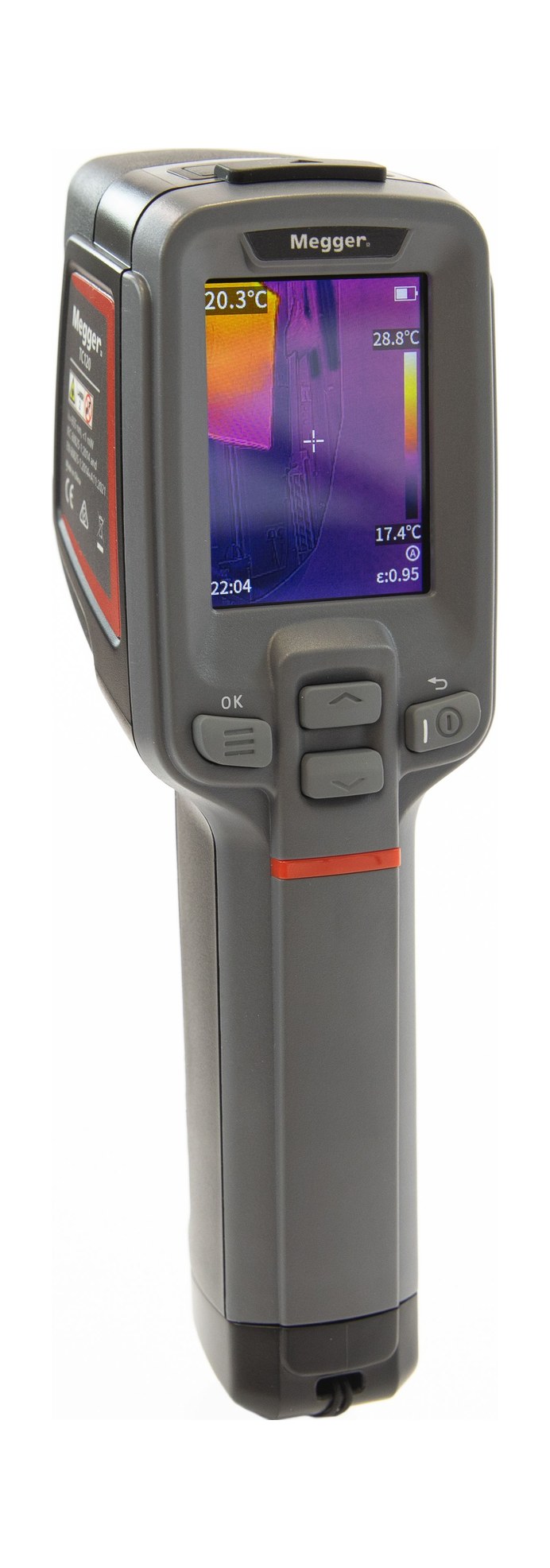

TC120 Thermal Camera

Easy-to-Use Professional Thermal Camera

The Megger TC120 thermal camera provides 120 x 90 resolution with IR-Perfclear real-time image enhancement that sharpens detail and reduces noise, plus super-resolution reconstruction to 240 x 180. A 2 MP visible-light camera feeds InfraRed, Visible Light, Multi-Image Fusion, and Picture-in-Picture display modes on the 2.4-inch color screen.

The measurement range spans -20°C to 550°C with automatic range switching and accuracy of ±2°C or ±2%, whichever is greater. Center-spot and three fixed-area analysis, a full-screen temperature threshold alarm, and adjustable emissivity, reflected temperature, and target distance cover routine diagnostic work.

Photos and video record to 16 GB of internal storage as JPG and IRGD files with embedded temperature data. Video streams in real time to the ThermoLink PC application, files share conveniently through the mobile app, and firmware is locally upgradeable.

The camera runs up to 8 hours per charge on its rechargeable lithium-ion battery, charges over USB-C including while operating, and carries an IP54 rating with a 2-meter drop test at 355 g. Each camera ships with a rigid protective case, wrist strap, power adapter with plug adaptors, USB-C cable, quick start guide, and calibration certificate.

Typical applications include domestic, commercial, and industrial electrical circuits, distribution boards and cabling, motor and rotating-machine maintenance, air conditioning and heating systems, solar PV installations, heat-loss surveys and building insulation, IT systems, and air-leak and moisture investigations.

Key Features

• 120 x 90 high-sensitivity VOx infrared detector (7.5 to 14 µm)
• Real-time super-resolution reconstruction to 240 x 180
• IR-Perfclear image enhancement, 4 times better image quality
• -20°C to 550°C auto-switching range; ±2°C or ±2% accuracy
• 2.4-inch color LCD with fusion and picture-in-picture modes
• 2 MP visible-light camera; laser indication
• Photo and video recording with embedded temperature data (JPG and IRGD)
• Video streaming to the ThermoLink PC application
• 16 GB internal storage; USB-C interface; tripod mount
• Up to 8 hours per charge; IP54; 2-meter drop tested; 355 g

The Megger TC120 Thermal Camera # 1016-971 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
