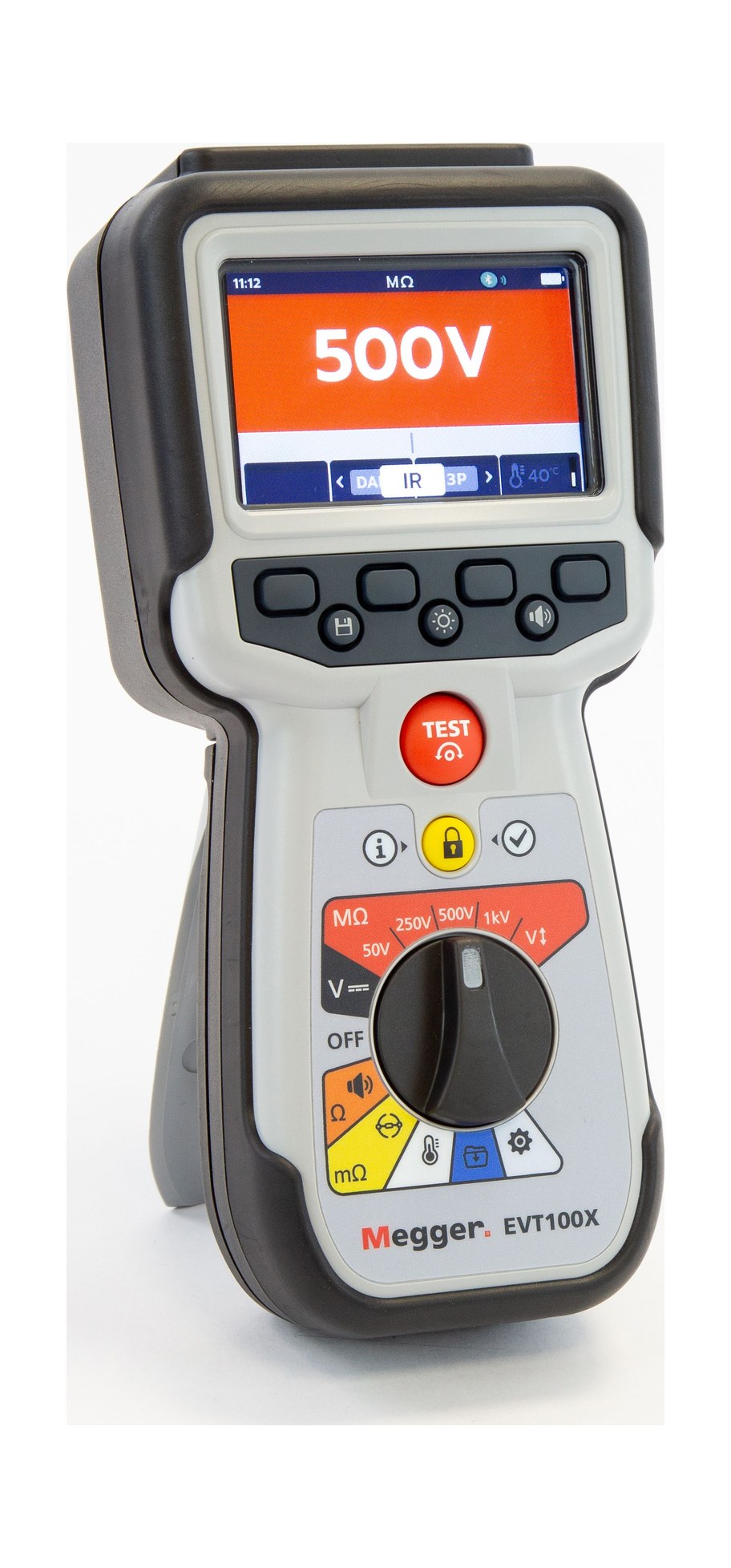

EVT100X Electric Vehicle Tester with Bluetooth

Handheld EV Multi-Tester with Bluetooth Reporting

The Megger EVT100X adds Bluetooth connectivity to the EVT100 electric vehicle tester platform: CertSuite LITE and BLE enable real-time testing and reporting with onboard storage and secure wireless connectivity, streaming live results to CertSuite Asset for data management and detailed reports.

Like the EVT100, it is a handheld multi-testing instrument with dedicated three-wire insulation resistance and four-wire Kelvin low resistance features, bringing more than 8 testing functions to electric vehicle (HEV, PHEV, BEV, FCEV) and photovoltaic testing.

Insulation testing spans the standard 50 V to 1000 V ranges up to 200 gigohms, plus a variable range that lets the exact test voltage be selected from 10 V to 999 V with stabilized output. A guard terminal eliminates surface-leakage errors, and PI, DAR, timed, and temperature-compensated tests are supported. Continuity tests run 0.01 ohms to 1 megohm at 200 mA with lead-null and bi-directional current, and the DLRO four-wire Kelvin function measures 1 milliohm to 10 ohms at 200 mA with accuracy of 0.25% of reading.

A DC voltmeter measures 10 mV to 1000 V with polarity indication, a diode test covers 0.01 V to 3.00 V, and Type T, K, and J thermocouples provide temperature measurement with insulation-test compensation. Results for up to 256 tests store onboard with date and time stamps and download to a USB drive.

Live-circuit detection inhibits testing on energized circuits, with selectable lockout voltage and fuse-failure detection. The instrument meets UN ECE R100 for electric vehicle testing and is rated CAT III 600 V to 3000 m. The rubber over-molded case achieves IP54, and the tester ships in a multipurpose industrial carrycase with a full detachable lead set, SP5 remote probe, temperature probe, Kelvin clip leads, rechargeable batteries, and charger.

Key Features

• Bluetooth with CertSuite LITE live streaming and CertSuite Asset reporting
• Three-wire insulation resistance with guard terminal, 50 V to 1000 V ranges plus 10 to 999 V variable
• Four-wire Kelvin low resistance bonding test, 1 milliohm to 10 ohms at 200 mA
• Two-wire continuity and diode test; DC voltage with polarity to 1000 V
• Temperature measurement and insulation-test compensation (Type T, K, J thermocouples)
• PI, DAR, timed, and temperature-compensated insulation tests
• Storage for 256 date-stamped results with USB download
• Meets UN ECE R100 for electric vehicle testing; CAT III 600 V to 3000 m
• Full color graphic display; guided lead set-up diagrams
• IP54 over-molded housing; multipurpose industrial carrycase included
• Rechargeable batteries and mains charger kit included

The Megger EVT100X Electric Vehicle Tester with Bluetooth # 1017-029 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
