87V MAX TLPV1 MC4 Test Leads Kit
SKU: FLK-87VMAX-TLPV1
87V MAX TLPV1 MC4 Test Leads Kit
List price. Volume pricing available.

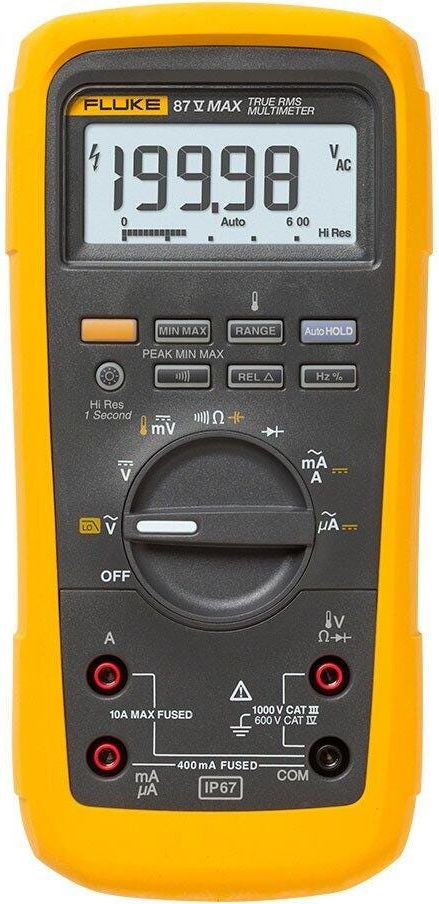

Fluke 87V Industrial Multimeter delivers accurate frequency measurements on adjustable speed drives, captures intermittents as fast 250 µS
Key Features
- Identify complex signal problems fast
- Supports accurate measurements on VFDs using a low-pass filter
- Captures intermittents as fast as 250 µS with Peak Capture
The Fluke 87V MAX TLPV1 MC4 Test Leads Kit # FLK-87VMAX-TLPV1 is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications |
| Maximum voltage | 1000 V |
| Accuracy | ±(0.05% + 1) |
| Maximum resolution | 10 µV |
| AC bandwidth | 20 kHz with low pass filter; 3 dB @ 1 kHz |
| Maximum amps | 10 A (20 A for 30 seconds maximum) |
| Amps accuracy | ±(0.2% + 2) |
| Maximum resistance | 50 MΩ |
| Maximum capacitance | 9,999 µF |
| accuracy | ±(1% + 2) |
| Maximum frequency | 200 kHz |
| Maximum duty cycle | 99.9% |
| Temperature measurement | -200.0 °C to 1090 °C-328.0 °F to 1994.0 °Fexcluding probe |
| 80 BK temperature probe | -40.0 °C to 260 °C-40.0 °F to 500 °F, 2.2 °C or 2% whichever is greater |
| Maximum conductance | 60.00 nS |
| Range | 3 V |
| Resolution | 1 mV |
| Duty cycle range | Accuracy |
| Diode | Environmental Specifications |
| Operating temperature | –20 °C to + 55 °C |
| Storage temperature | –40 °C to + 60 °C |
| Humidity (without condensation) | 0% – 90% (0 °C – 35 °C)0% – 70% (35 °C – 55 °C) |
| Operating Altitude | 2000 m |
| Overvoltage category | EN 61010–1 to 1000 V CAT III, 600V CAT IV |
| Agency approvals | CE, CSA, RCM |
| Size | 201 x 98 x 52 mm (with holster) |
| Weight | 355 g624 g – with holster |
| Digital | 6000 counts updates 4/sec.19,999 counts in high–resolution mode |
| Analog | 32 segments, updates 40/sec |
| Frequency | 19,999 counts, updates 3/sec at > 10 Hz |
| Warranty | Lifetime |
| Battery Life | Alkaline |
| Shock | 1 Meter drop per IEC 61010–1:2001 |
| Vibration | Per MIL–PRF–28800 for a Class 2 instrument |
This product is part of a family with 11 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
FLUKE-87-5 | $579.99 | View Details → |
FLK-87V-TLPV1 | $629.99 | View Details → |
FLUKE-87V/IMSK | $644.99 | View Details → |
FLUKE-87V-MAX | $654.99 | View Details → |
FLK-87VMAX-TLPV1Current | $699.99 | Viewing |
FLK-87VMAX-PVLEAD1 | $699.99 | View Details → |
FLUKE-87V/PRV240 | $789.99 | View Details → |
FLUKE-87V-MAX/E2 KIT | $874.99 | View Details → |
FLUKE-87-5 CAL | $824.99 | View Details → |
FLUKE-87-5/E2 CAL | $1,026.99 | View Details → |
