107 CAT III 600V DMM ESP
SKU: FLUKE-107 ESP
Enhance your toolset with the BK120 breaker finder and 107 digital multimeter (DMM). The perfect pair for circuit identification and electrical measurements.
List price. Volume pricing available.
Enhance your toolset with the BK120 breaker finder and 107 digital multimeter (DMM). The perfect pair for circuit identification and electrical measurements.
Key Features
- Locates the correct breaker quickly and accurately
- Advanced NCV Mode to indicate proximity and detection of voltage on sockets/outlets, supply cords, or terminal strips
- GFCI outlets–with an integrated GFCI test, you can feel secure knowing that your GFCI equipped outlets are functioning properly
- Current and voltage measurements
- Measures resistance and continuity to check for broken wires
The Fluke 107 CAT III 600V DMM ESP # FLUKE-107 ESP is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Safety rating | CAT III 150 V |
| Rated operating voltage | 110 V AC to 125 V AC at 6 mA |
| Rated frequency | 50/60 Hz |
| GFCI test | ✓ |
| Wiring check | ✓ |
| Wiring indication | 1 red, 2 green |
| Breaker finder indication | — |
| NCV detection | — |
| Flashlight | — |
| Auto power off | — |
| Low battery indication | — |
| Power supply | Line powered |
| General | Precision specifications |
| Range | Resolution |
| 6.000 V60.00 V600.0 V | 0.001 V0.01 V0.1 V |
| DC voltage | 6.000 V60.00 V600.0 V |
| Exchange millivolts | 600.0 mV |
| Diode test2 | 2.000 V |
| Resistance(ohm) | 400.0 Ω4.000 kΩ40.00 kΩ400.0 kΩ4.000 MΩ40.00 MΩ |
| Capacitor3 | 50.00 nF500.0 nF5.000 μF50.00 μF500.0 μF1000 μF |
| Frequency4 Hz(10 Hz – 100 kHz) | 50.00 Hz500.0 Hz5.000 kHz50.00 kHz100.0 kHz |
| Duty cycle4 | 1 % to 99 % |
| AC current(40 Hz - 200 Hz) | 4.000 A10.00 A |
| DC | 4.000 A10.00 A |
| Features | Overload protection |
| AC voltage | 600 V 1 |
| AC voltage(40 Hz to 500 Hz)1 | Up to 6 x 105 V HzFor medium voltage (alternating current), the input impedance is approximately 1 MΩ. |
| The highest voltage applied to any terminal and ground | 600 V |
| Display (LCD) | 6000 counts, updated three times per second |
| Type of battery | Two AAA batteries (NEDA 24A, IEC LR03) |
| Battery life | At least 200 hours |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -30 °C to 60 °C |
| Working humidity | No condensation below 10 °C≤ 90 % at 10 °C to 30 °C; ≤ 75 % at 30 °C to 40 °C |
| Working humidity, 40 MΩ range | ≤ 80 % at 10 °C to 30 °C; ≤ 70 % at 30 °C to 40 °C |
| Working elevation | 2000 m |
| Storage altitude | 12,000 m |
| Temperature coefficient | 0.1 X (specified accuracy) / °C (28 °C) |
| Current input fuse protection | 11A, 1000V fast-melting type, must use Fluke designated parts |
| Volume (height x width x length) | 142 mm x 69 mm x 28 mm |
| Weight | 200 g |
| Protection level | IEC 60529: IP 40 |
| Safety | IEC 61010-1: 600 V CAT III, pollution degree 2 |
| Electromagnetic environment | IEC 61326-1: Portable |
| Electromagnetic compatibility | Applicable only in Korea. Class A equipment (industrial broadcasting and communication equipment)1 |
Related Products
789 and 773 Bundle Package
Fluke 789 ProcessMeter is wireless via Fluke Connect & combines a DMM & loop calibrator. Large, bright dual display. Get specs and buy official Fluke here.
107 DMM and BK120 Breaker Finder Bundle
The Fluke BK120 circuit breaker finder tool simplifies electrical troubleshooting. Identify circuits to save time and enhance safety at home or work.
113 Utility Multimeter
The Fluke 113 is an easy-to-use basic multimeter with VCHEK LoZlow impedance measurement function for ghost voltage detection which can measure and display both AC and DC voltages.

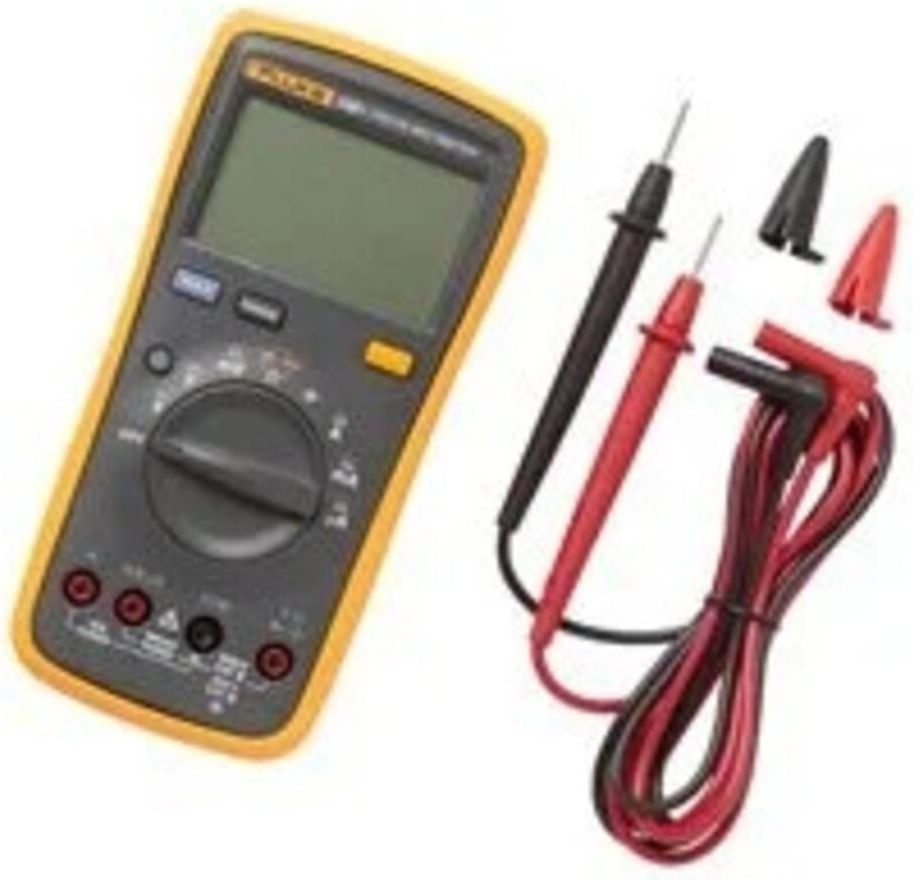

15B+ ESP Basic DMM for ESP, CAT III
