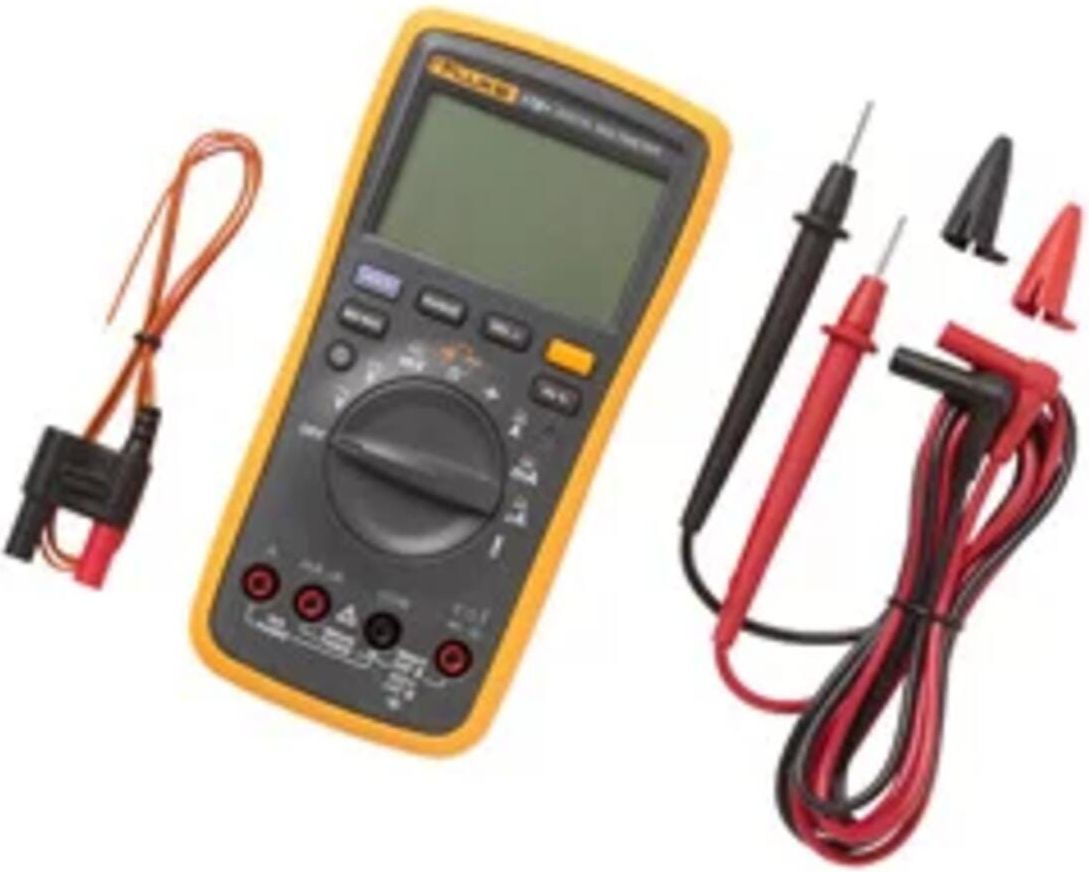

17B+ ESP Basic DMM for ESP with Temperature, CAT III
SKU: FLUKE-17B+ ESP
Basic DMM for ESP w/Temperature, CAT III
List price. Volume pricing available.
The Fluke 15B+ digital multimeter is a compact, easy to use tool that delivers safe, reliable measurements
Key Features
- 600 V Cat III safety rating
- AC/DC voltage measurement up to 1000V
- AC/DC current measurement up to 10A
- Measures voltage, resistance, continuity, capacitance
- Diode test, data hold
- Large easy-to-read display with bright white backlight
The Fluke 17B+ ESP Basic DMM for ESP with Temperature, CAT III # FLUKE-17B+ ESP is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Function | Range |
| AC volts(40 Hz to 500Hz)1 | 4.000 V40.00 V400.0 V1000 V |
| DC volts | 4.000 V40.00 V400.0 V1000 V |
| AC millivolts | 400.0 mV |
| DC millivolts | 400.0 mV |
| Diode test2 | 2.000 V |
| Resistance(Ohms) | 400.0 Ω4.000 kΩ40.00 kΩ400.0 kΩ4.000 MΩ40.00 MΩ |
| Capacitance3 | 40.00 nF400.0 nF4.000 μF40.00 μF400.0 μF1000 μF |
| AC current μA(40 Hz to 400 Hz) | 400.0 μA4000 μA |
| AC current mA(40 Hz to 400 Hz) | 40.00 mA400.0 mA |
| AC current A(40 Hz to 400 Hz) | 4.000 A10.00 A |
| DC current μA | 400.0 μA4000 μA |
| DC current mA | 40.00 mA400.0 mA |
| DC current A | 4.000 A10.00 A |
| Backlight | Yes |
| AC volts | 1000 V 1 |
| General | 1 106 V Hz Max |
| Maximum voltage between any terminal and earth ground | 1000 V |
| Display (LCD) | 4000 counts, updates 3/sec |
| Battery type | 2 AA, NEDA 15A, IEC LR6 |
| Battery life | 500 hours minimum |
| Operating | 0 °C to 40 °C |
| Storage | -30 °C to 60 °C |
| Operating humidity | 40 MΩ range≤80% RH at 10 °C to 30 °C;≤70% RH at 30 °C to 40 °C |
| Temperature coefficient | 0.1 X (specified accuracy) /°C (28 °C) |
| Fuse protection for current inputs | 440 mA, 1000 V Fast Fuse, Fluke specified part only.11A, 1000V Fast Fuse, Fluke specified part only. |
| Size (H x W x L) | 183 x 91 x 49.5 mm |
| Weight | 455 g |
| IP rating | IP 40 |
| Safety | IEC 61010-1, IEC61010-2-030 CAT III 600 V, Pollution Degree 2 |
| Electromagnetic Compatibility | IEC 61326-1: Portable EMC Environment |
