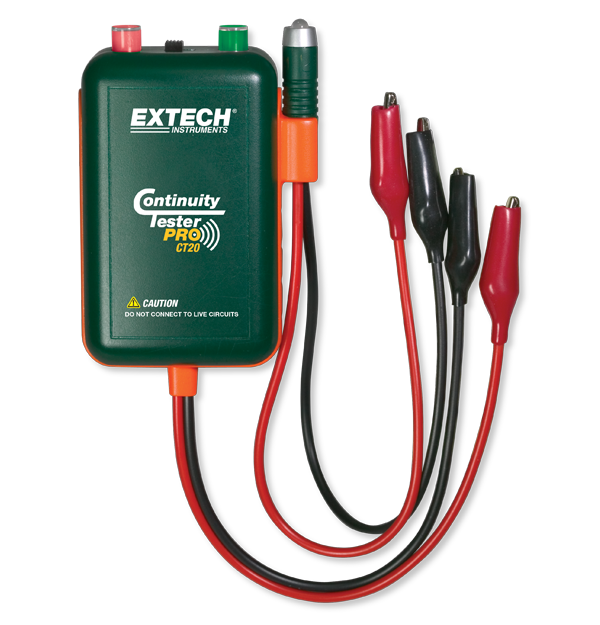

CT20 Continuity Tester
SKU: CT20
The CT20 is an electronic tool for electricians, alarm, cable installers and others who routinely need to check circuits for continuity and also identify cables and wires. It allows a single user to quickly identify and label two wires even when the wire ends are located in different rooms. It can accommodate test wire lengths up to 10,000-feet (3,000 meters), 26-gauge minimum. The CT20’s Remote Continuity mode allows the user to check continuity and to identify two or more cables/wires simultaneously.
List price. Volume pricing available.
The CT20 is an electronic tool for electricians, alarm, cable installers and others who routinely need to check circuits for continuity and also identify cables and wires. It allows a single user to quickly identify and label two wires even when the wire ends are located in different rooms. It can accommodate test wire lengths up to 10,000-feet (3,000 meters), 26-gauge minimum. The CT20’s Remote Continuity mode allows the user to check continuity and to identify two or more cables/wires simultaneously.
The Extech CT20 Continuity Tester # CT20 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Alarm | 85dB beeper |
| Continuity | Equal to or less than 2.0 K Ohms, Driving current Pulsed (2.0 Hz) 20 - 50mA at 10 Ohms and 2.0mA - 8.0mA at 1000 Ohms. |
| Certifications | CE |
| Dimensions | 3.6 × 2.2 × 1.14" (90 × 57 × 29mm ) |
| Power | 1 × 9V Battery |
| Warranty | 2 years |
| Weight | 260g (9.2oz) |
Related Products

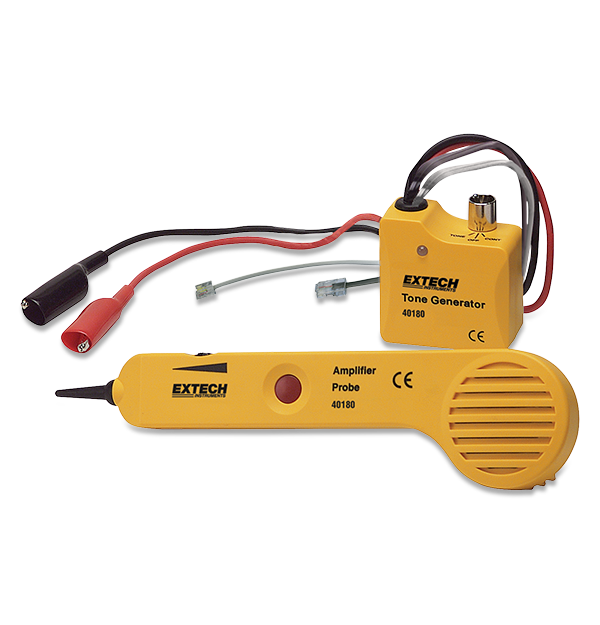

40180 Tone Generator and Amplifier Kit
