380260 Megohmmeter, Autoranging Digital
SKU: 380260
This autoranging megohmmeter measures insulation resistance up to 2000MΩ. Choice of 250,500 or 1000VDC test voltages. The large backlit dual display indicates test voltage output and insulation resistance. Low resistance, continuity and AC/DC voltage measurement functions. Other features include automatic discharge at the end of test, protective holster with stand, power lock on feature and data hold. Complete with test leads, carrying case and 6 AA batteries.
List price. Volume pricing available.
This autoranging megohmmeter measures insulation resistance up to 2000MΩ. Choice of 250,500 or 1000VDC test voltages. The large backlit dual display indicates test voltage output and insulation resistance. Low resistance, continuity and AC/DC voltage measurement functions. Other features include automatic discharge at the end of test, protective holster with stand, power lock on feature and data hold. Complete with test leads, carrying case and 6 AA batteries.
The Extech 380260 Megohmmeter, Autoranging Digital # 380260 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| AC Voltage Test | Yes |
| Insulation Resistance | 200MΩ, 2000MΩ |
| Insulation Resistance Basic Accuracy | ±3% |
| Insulation Resistance Max Resolution | 0.1MΩ |
| Insulation Test Voltage | 250V, 500V, 1000V |
| Low Resistance | Yes |
| Certifications | 380260-NIST_S: CE, NIST / 380260_S: CE |
| Dimensions | 7.8 × 3.6 × 1.9" (200 × 92 × 50mm) |
| Display | Segment LCD with backlighting |
| Power | 6 × AA (1.5V) batteries |
| Safety Category | CAT III-1000V |
| Warranty | 2 years |
| Weight | 24.6oz (700g) |
Related Products

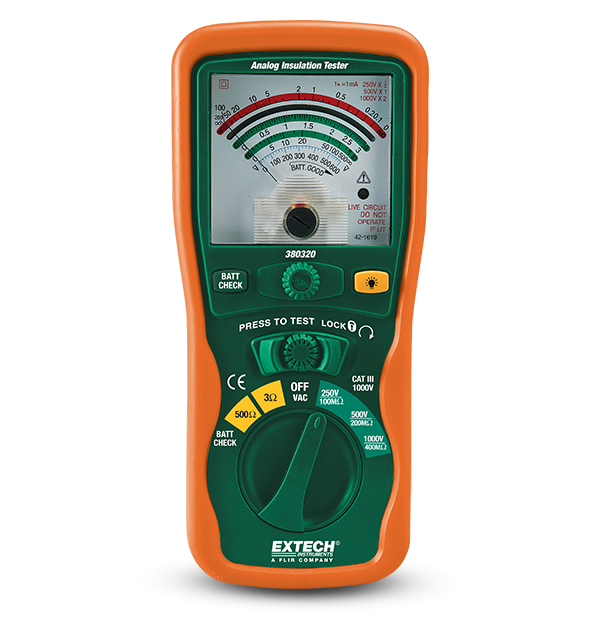

380320 Insulation Tester, Analog
The Extech 380320 is an Analog Insulation Tester with a large, easy to read analog display. It features a live circuit warning which displays the actual AC voltage measurement. It also includes an automatic discharge circuit, lock power on feature for extended test times, and insulation resistance up to 400 MΩ. Complete with heavy duty test leads, alligator clip test lead, 6 AA batteries, hanging strap, and hard carrying case.

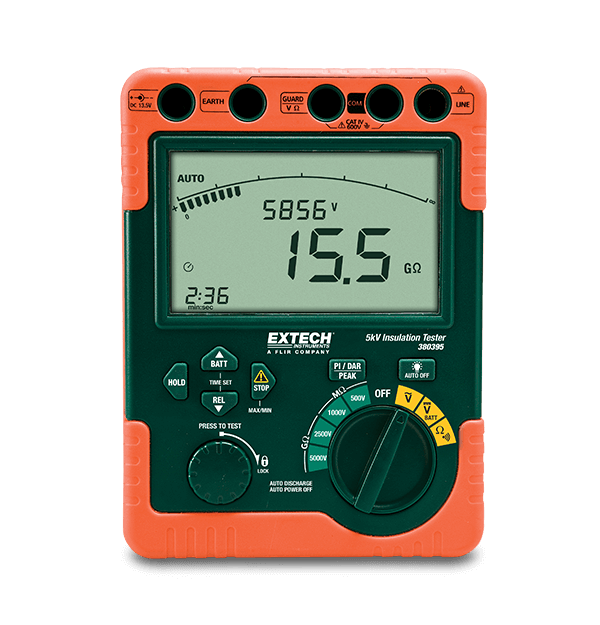

380395 Insulation Tester, High Voltage, 120 VAC
With the Extech 380395, measure insulation resistance up to 60 GΩ with test voltages of 500 V, 1000 V, 2500 V, and 5000 V. Its features include polarization index measurement (PI), dielectric absorption ratio measurement (DAR), AC/DC voltage measurement up to 600 V, peak and relative functions, and a 1 min to 15 min timer function for IR measurements. Comes with test leads, eight C batteries, 120 V AC adaptor, heavy duty carrying case, and a user manual.

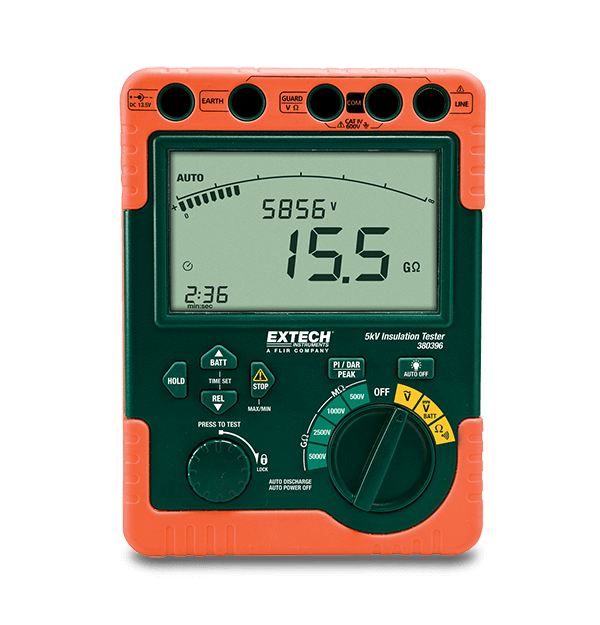

380396 Insulation Tester, High Voltage, 220V
With the Extech 380396, measure insulation resistance to 60 GΩ with test voltages of 500 V, 1000 V, 2500 V, and 5000 V. It features several measurements including polarization index (PI), dielectric absorption ratio (DAR), and AC/DC voltage to 600 V with a min/max function. It also has peak and relative functions, as well as a 1 to 15 minute timer function for IR measurements. Comes with test leads, eight C batteries, 220 V AC adaptor, heavy duty carrying case, and user manual.

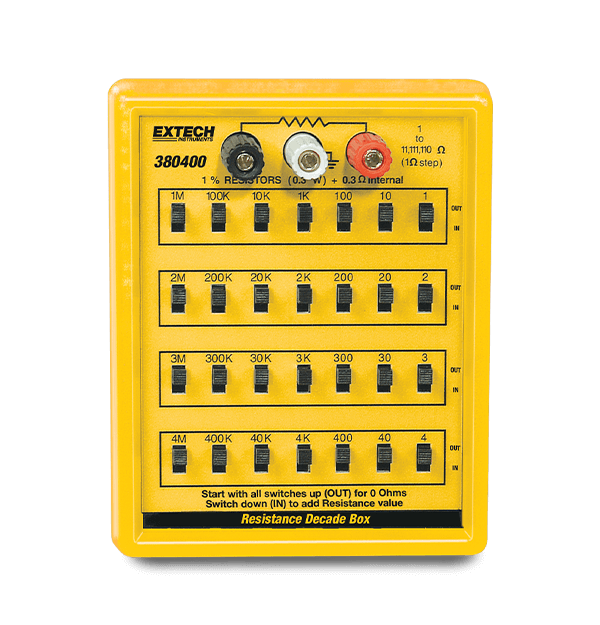

380400 Resistance Substitution Box
