AT-100 Laser Shaft Alignment Tool

SKU: AT-100

Entry-level tablet-based laser shaft alignment tool with guided 5-step workflow, single-axis digital sensors, and PDF reporting for horizontal machine alignment.

Qty:

Dimensional Measurement Process Control & Automation

Factory-Direct Partner

Calibration Available

Nationwide Shipping

Expert Support

The Acoem AT-100 tackles machine misalignment efficiently with a tablet-based horizontal shaft alignment system built for straightforward jobs. Acoem's Horizontal Alignment application uses the GuideU interface to walk the operator through five essential steps, taking the guesswork out of alignment.

After mounting the movable and stationary sensors to the machine shafts, they connect wirelessly to the app over Bluetooth. Set up an alignment by measuring four simple dimensions and selecting the run speed of the machine; results convert to PDF reports on site.

With a 6.5 ft (2 m) measurement distance, line laser, and IP54-rated single-axis digital sensors, the AT-100 is the entry point to Acoem's AT-series. Acoem item number: 100-AT100.

The Acoem AT-100 Laser Shaft Alignment Tool # AT-100 is manufactured by Acoem. Valley Instrument Service partners directly with Acoem to offer factory-direct pricing, sales support, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 6 models. Select a model below to view details.

Model	Description	Measurement Distance	Laser Type	Detector	Detector Resolution	Price
AT-300	Next-generation digital line laser alignment system with 30 mm third-generation CCD sensors, 49 ft range, gyroscope, and cloud-connected apps for responsive maintenance work.	49 ft (15m)	Line Laser	1-axis 30mm 3rd Gen Digital Sensor	0.001mm	Request Quote	View Details →
AT-400	Flagship shaft alignment system with 2-axis PSD sensors, 65 ft measuring distance, dual sweep and dual multipoint methods, built for any alignment scenario including geometric measurement.	65 ft (20m)	Point Laser	2-Axis 20mmx20mm PSD	0.001mm	Request Quote	View Details →
AT-100Current	Entry-level tablet-based laser shaft alignment tool with guided 5-step workflow, single-axis digital sensors, and PDF reporting for horizontal machine alignment.	6.5 ft (2m)	Line Laser	1-axis 20mm Digital Sensor	0.01mm	Request Quote	Viewing
AT-200	Tablet-based laser shaft alignment system for horizontal and vertical machines, with dual wireless sensors, Feet Lock, target values for thermal growth, and on-site PDF reporting.	32 ft (10m)	Line Laser	1-axis 30mm 2nd Gen Digital Sensor	0.001mm	Request Quote	View Details →
EXO	Intrinsically safe shaft alignment system built for hazardous environments, with dual sensors that continually read true shaft position and guided soft foot checking.	16 ft (5m)	Line Laser	1-axis 30mm 2nd Gen Digital Sensor	0.001mm	Request Quote	View Details →
RT-300	Alignment and vibration in one rugged tablet-based tool: Accurex AI machine diagnostics, precise laser shaft alignment, runout measurement, and cloud connectivity for reports and history.	49 ft (15m)	Line Laser	1-axis 30mm 3rd Gen Digital Sensor	0.001mm	Request Quote	View Details →

Measurement Distance	6.5 ft (2m)
Laser Type	Line Laser
Detector	1-axis 20mm Digital Sensor
Detector Resolution	0.01mm
Measurement Accuracy	1% ± 1 digit
Inclinometer Resolution	1°
Inclinometer Accuracy	±3°
Operating Time	11h
Environmental Protection	IP54
Operating Temperature	32° to 122°F (0° to 50°C)

AT-100 Laser Shaft Alignment Tool

Have questions about this product?

Related Products

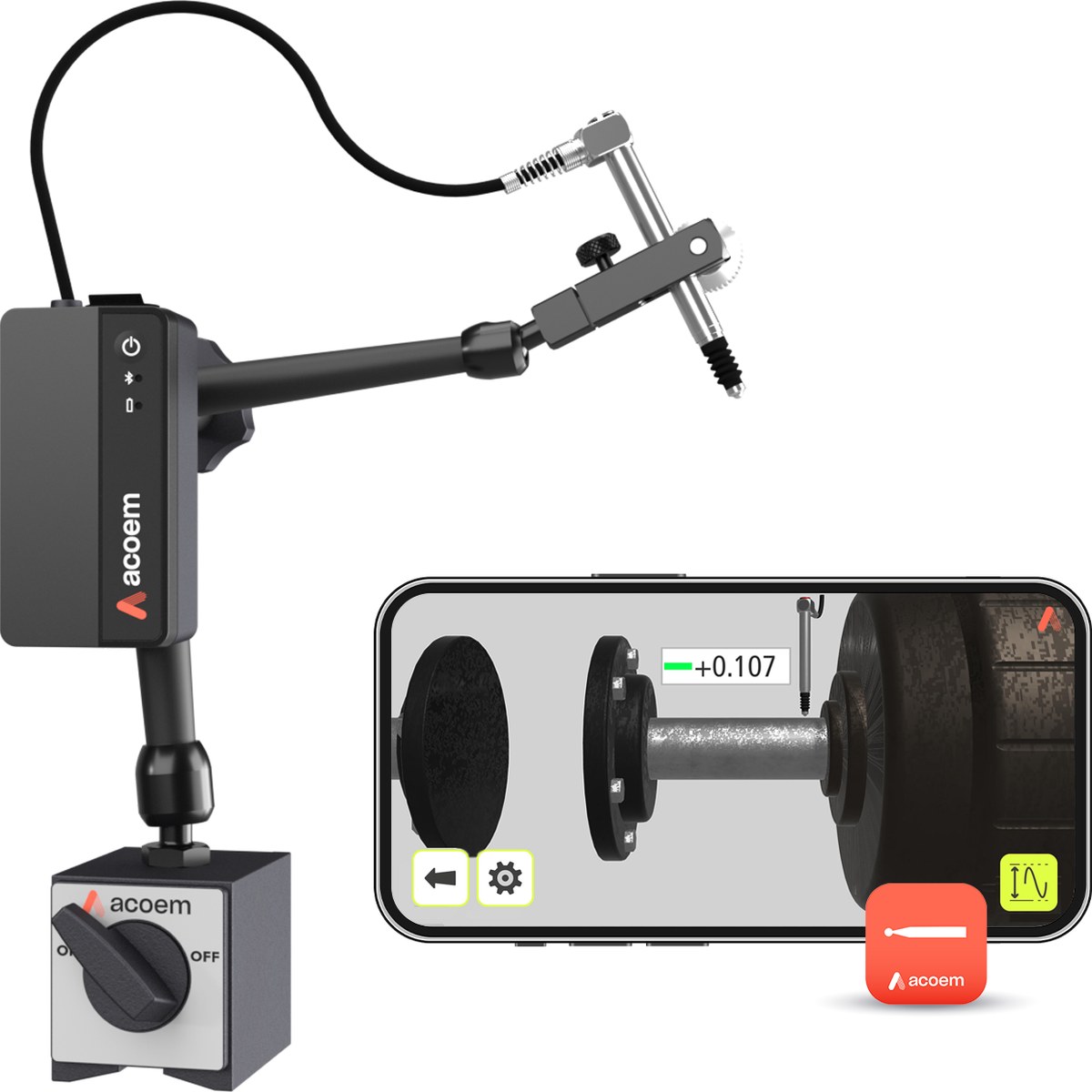

Runout Probe Wireless Pre-Alignment Measurement Probe
