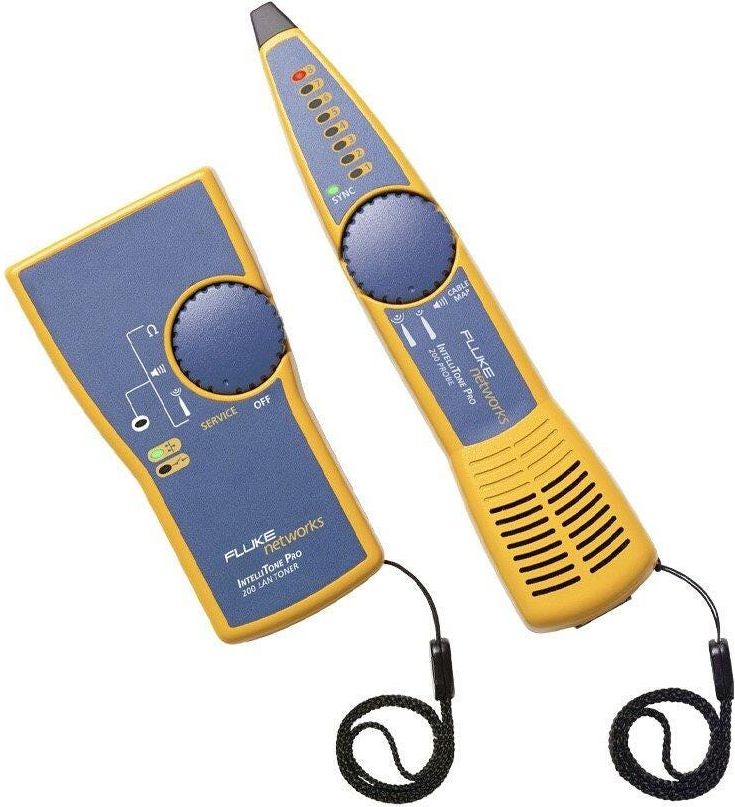

MT-8200-60-KIT IntelliTone Pro 200 LAN Toner and Probe Kit
SKU: MT-8200-60-KIT
Fluke Networks MT-8200-60 Kit is the first network cable toner and probe to offer digital and analog signaling all in one network toner and probe.
List price. Volume pricing available.
Fluke Networks MT-8200-60 Kit is the first network cable toner and probe to offer digital and analog signaling all in one network toner and probe.
Key Features
- Locates cables safely and effectively on active networks
- Kit includes IntelliTone toner, probe, adapters, patch cables, and test leads
- Verifies twisted pair installation with end to end continuity test
- IntelliTone digital toning eliminates noise and false signals
- SmartTone analog toning isolates individual wire pairs
The Fluke MT-8200-60-KIT IntelliTone Pro 200 LAN Toner and Probe Kit # MT-8200-60-KIT is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | General specifications |
| Operating temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage temperature | -4 °F to +140°F (-20 °C to °C) |
| Operating relative humidity (% RH without condensation) | 95 % (50 °F to 95 °F; 10 °C to 35 °C)75 % (95 °F to 104 °F; 35 °C to 40 °C) Uncontrolled < 50 °F (< 10 °C) |
| Vibration | Random, 2 g, 5 Hz-500 Hz |
| Shock | 1 m drop test |
| Safety | EN 61010-1, Category: None |
| Altitude | 3000 m |
| EMC | EN 61326-1, FCC Part 15 B |
| Battery type and life | 9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical |
| Applications | Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200. |
| Dimensions | 5.54 in x 2.94 in x 1.25 in (14.1 cm x 7.5 cm x 3.2 cm) |
| Display | LED |
| Control | Thumbwheel switch |
| Toner interface | Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) - two conductor wiring |
| Toner frequency | IntelliTone™ signal: encoded digital signalAnalog SmartTone signal: 500 - 1200Hz, 4 songs |
| Ouptut power | 5 V p-p |
| Auto power down | Turns off automatically after 2 1/2 hours of inactivity |
| Audio | IntelliTone: Microprocessor controlled audio filesAnalog: Detected toner signal |
| Tone detection | Detects IntelliTone™ digital signal for Locate, Isolate, and Cable MapDetects analog SmartTone signal (500-1200Hz) and other analog toners. |
