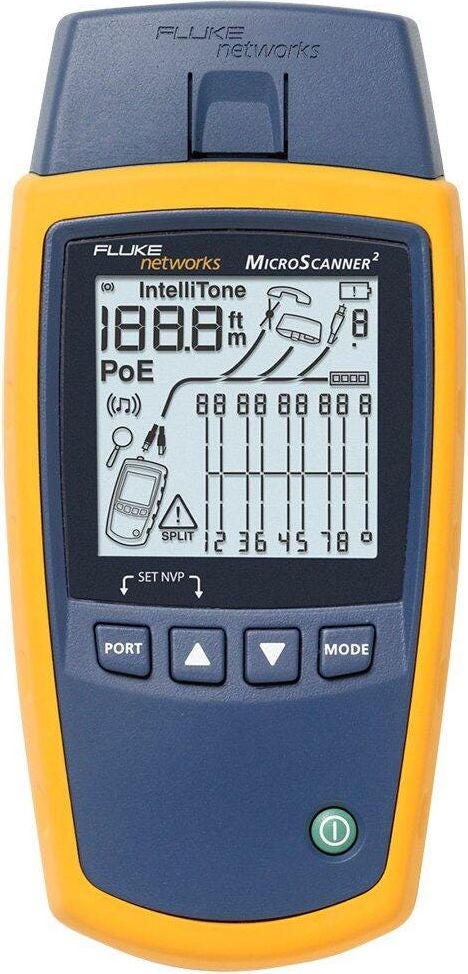

MS2 Industrial Ethernet Tester
SKU: MS2-100-IE
The MicroScanner2 Cable Verifier helps find common errors by displaying graphical wiremap, pair lengths, distance to fault, and far end device.
List price. Volume pricing available.
The MicroScanner2 Cable Verifier helps find common errors by displaying graphical wiremap, pair lengths, distance to fault, and far end device.
Key Features
- Wire map, length, cable ID, distance to fault on one screen
- Tests common media types, such as RJ11, RJ45, and coax, without adapters
- VDV Service Detection verifies 10/100/1000 Ethernet, POTS, and PoE
The Fluke Networks MS2 Industrial Ethernet Tester # MS2-100-IE is manufactured by Fluke Networks. Valley Instrument Service is an authorized Fluke Networks dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Environmental specifications |
| Operating temperature | 32 °F to 113 °F (0 °C to 45 °C) |
| Storage temperature | -4 °F to +140 °F (-20 °C to +60 °C) |
| Operating relative humidity (% RH without condensation) | 90 % (50 °F to 95 °F 10 °C to 35 °C)75 % (95 °F to 113 °F 35 °C to 45 °C) |
| Shock and Vibration | Random, 2 g, 5 Hz-500 Hz (Class 2)1 m drop test with and without wiremap adapter attached |
| Safety | IEC 61010-1 3rd Edition |
| Altitude | 4,000 m; Storage: 12,000 m |
| EMC | IEC 61326-1 |
| Test connectors | Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. MicroScanner2: F-connector for coaxial cable. |
| Power | Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteriesBattery life: 20 hours of typical useOther compatible battery types: 2 AA photo lithium, NIMH, NICAD |
| Dimensions and weight (with batteries installed and wiremap adapter attached) | 3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm)MicroScanner2: 10.6 oz (300 g) |
| Display | Monochrome LCD with backlight |
| Cable test | Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScanner PoE also shows HIGH Ω when the resistance of the cable is more than 12.5 Ω. Displays results on one screen. |
| Tone | Generates Intellitone™ and normal analog toning signals |
| PoE | MicroScanner2: Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices |
| Cable types tested | Twisted pair: UTP, FTP, SSTPCoaxial (MicroScanner2): 75 Ω, 50 Ω, 93 Ω |
| Length test | Range: 460 m (1500 ft)Resolution: 0.3 m (1 ft)Typical accuracy: ± 4% or 0.6 m (2 ft) whichever is greater. NVP uncertainty is an additional error.Calibration: User-settable NVP for twisted pair and coax (MicroScanner2). Can determine actual NVP with known length of cable. |
| Wiremap test | Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults. |
| Ethernet port detection | MicroScanner2: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, and 1 Gbps. |
| Tone generator | Supports toning and cable mapping with a Fluke Networks digital IntelliTone™ probe. Generates four tones compatible with typical analog probes. SmartTone™ feature gives positive identification of cables in bundles when using an IntelliTone or an analog probe. |
This product is part of a family with 3 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
MS-POE-IE | $1,930.23 | View Details → |
MS-POE-IE-KIT | $2,200.63 | View Details → |
MS2-100-IECurrent | $1,754.47 | Viewing |
