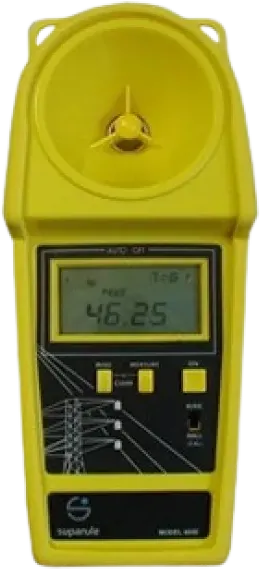

CHM 600E Cable Height Meter (50 ft, Power Application)
SKU: 659600E
Cable height meter for measuring overhead conductor clearance — 50 ft maximum height, calibrated for power-distribution conductors.
List price. Volume pricing available.
Power Cable Height Meter, 75 ft (23 m)
The CHM Series of Cable Height Meters utilize ultrasonic techniques to determine the height of up to six overhead cables and wires. The instruments are designed to address specific measuring requirements on cables up to 75 feet (23 m). The CHM600 (C/N 659600) and CHM600E (C/N 659600E) are designed primarily for power cable applications, while the CHM2000 is designed for telecommunication applications.
Megger 659600 / 659600E Cable Height Meters are designed primarily for power cable applications. The Cable Height Meters emit short bursts of sound which originate from the cone shaped transmitter. The microprocessor in the instruments calculates the elapsed time for the bursts of sound to be reflected from the cable back to the instruments. The result can be displayed in either feet and inches or meters. However, before the final measurement can be displayed, the air temperature must be measured because the speed of sound varies at approximately 0.2 percent per degree Celsius.
A temperature sensor, mounted at the front of the instruments, senses the actual air temperature. This information is sent to the microprocessor and incorporated into the algorithm. The distance is then displayed in meters or feet and inches depending on which was selected.
Key Features
- Simple, three button operation ensures fast, effective measurements with a minimum of operator training.
- Lightweight and hand-held portability
- No physical connection to cables or wires required to obtain measurement.
- Battery condition indicator
- Automatic power off
- Calibration and maintenance free operation
- Pre-selectable measuring modes
- Six cable measurement capability
- Quicker measurement of cable height
The Megger CHM 600E Cable Height Meter (50 ft, Power Application) # 659600E is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681This product is part of a family with 3 models. Select a model below to view details.
