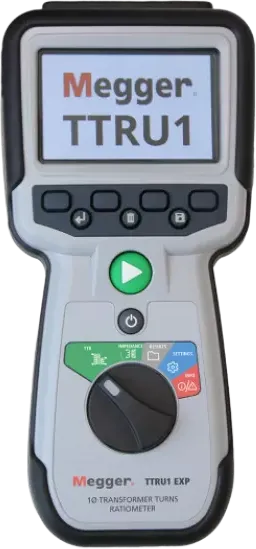

TTRU1-ADV Single-Phase Handheld Turns Ratiometer (62.5 V AC)

Handheld Transformer Turns Ratiometer (62.5V Max Induced Voltage)

Power through transformer electromechanical tests with the new TTRU1, the latest handheld transformer turns ratiometer from Megger. Perform routine polarity validation and turn ratio tests on power, distribution, and instrument transformers.

When compared to other single-phase turns ratio test instruments, the TTRU1 is easier to use as you don't need to know the proper test voltage to obtain a valid test result.

The TTRU1 uses the latest technological advancements, providing safe, repeatable, and reliable results.

Additive/Subtractive polarity recognition

Key Features

• Designed to test distribution, instrument (CTs and PT/VTs), and power transformers
• Perform routine polarity validation and turns ratio tests
• Easy-to-follow setup ensures the right result the first time
• Click start and perform over 1000 turns ratio tests on a single NiMH AA battery charge
• Maximum induced voltage: 62.5V
• Maximum current: 1A
• Maximum turns ratio: 50,000 down
• PowerDB import
• Go/No Go short circuit, open circuit, inductance
• Customizable transformer vector list and voltages

The Megger TTRU1-ADV Single-Phase Handheld Turns Ratiometer (62.5 V AC) # TTRU1-ADV is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
