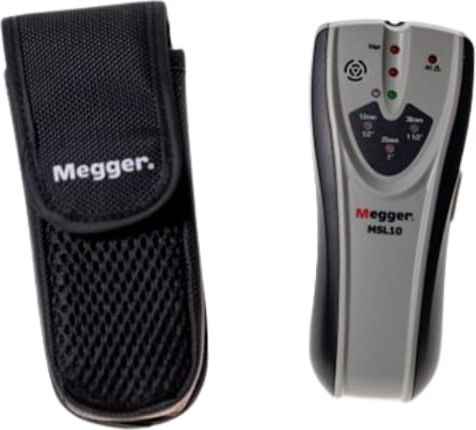

MSL10 Stud Locator

SKU: 1013-547

Locates wooden studs, metal joists, or live AC cables behind drywall and other building materials. Three depth ranges, LED + audible indication, and live-cable detection. Ships with protective carry pouch.

$65.10

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

The Megger MSL10 is a simple-to-use instrument designed to help locate the edges of wooden studs, metal joists or live AC cables through drywall or other common building materials. With clear LED and audible indication, the center of studs or joists can be located by scanning from either side to locate each edge. With three depth ranges available, the sensitivity can be adjusted to ensure accurate indication. The MSL10 will also indicate the presence of live AC cables.

The unit is supplied with a protective carry pouch that helps protect the wall contact pads and avoid marking or damaging any finished surface being scanned.

Key Features

Locate wooden joists or studs
Locate metal joists or studs
Locate live AC cables
Adjustable depth range
Audible and visual indication
Simple to use
Carry case included
Power source: 9V battery

The Megger MSL10 Stud Locator # 1013-547 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 8 models. Select a model below to view details.

Model	Description	Price
MFL205 Fuse and Circuit Breaker Locator 1013-835	Identifies the individual fuse or circuit breaker feeding a circuit. Transmitter connects via 4 mm leads or supplied crocodile clips; receiver auto-tunes sensitivity and pinpoints the breaker with LED + audible indication.	$140.70	View Details →
VF-T5 Non-Contact AC Voltage Detector with IR Temperature 1016-151	Non-contact AC voltage detector with built-in IR temperature measurement — Megger's first to combine both. Red LED tip, audible sounder, and vibration alert across 12-1000 V (low) and 100-1000 V (medium) ranges, plus white LED torch.	$66.15	View Details →
VF5 Non-Contact AC Voltage Detector with Flashlight 1013-098	Non-contact AC voltage detector with bright LED tip, audible sounder, and vibration alert. Two ranges (12-1000 V low, 100-1000 V medium) plus integrated white LED torch for poorly-lit work.	$472.50	View Details →
VF6 EX Hazardous Area Non-Contact AC Voltage Detector with Flashlight 1013-097	EX-rated non-contact AC voltage detector for hazardous-area work (gas platforms, petrochemical environments). Indicates AC presence with red LED, audible alert, and vibration; includes white LED torch. Low (12-1000 V) and medium (100-1000 V) voltage ranges.	$630.00	View Details →
TPT420 Two-Pole Voltage and Continuity Tester 1013-189	CAT IV 1000 V, IP64 two-pole voltage tester with LCD + LED display. Measures 12-1000 V AC and 0-1500 V DC plus continuity to 500 kΩ. Phase rotation test, single-pole indication, integrated torch, and warning behavior even with depleted batteries.	$149.10	View Details →
MPU690 Multi-Function Proving Unit 1001-561	Multi-function proving unit for verifying that voltage detectors, two-pole testers, and multimeters respond correctly across AC and DC ranges before use.	$168.00	View Details →
MSL10 Stud LocatorCurrent 1013-547	Locates wooden studs, metal joists, or live AC cables behind drywall and other building materials. Three depth ranges, LED + audible indication, and live-cable detection. Ships with protective carry pouch.	$65.10	Viewing
PSI410 Phase Sequence Indicator 1001-612	Three-phase rotation indicator showing phase sequence direction (L1-L2-L3) for verifying motor and supply phasing on three-phase circuits.	$257.25	View Details →

Accessories, replacement sensors, and parts for this product family.

Model	Description	Price
TPT GS38 Probe Tips, Pack of 10 1013-365	CAT IV 1000 V GS38-compliant finger-guard probe tips for the Megger TPT320 / TPT420 two-pole voltage testers. Pack of 10.	$21.00	View Details →
MSL10 Carry Pouch 1013-548	Protective carry pouch for the Megger MSL10 stud locator. Shields wall-contact pads from damage during transport.	$13.65	View Details →
PSI410 Probe Tip and Crocodile Clip Set 1007-289	Replacement probe tip and crocodile clip set for the Megger PSI410 phase sequence indicator.	$86.10	View Details →
TPT320/TPT420 Carry Pouch 2005-536	Carry pouch for the Megger TPT320 and TPT420 two-pole voltage testers.	$35.70	View Details →
