TI480-PRO 60HZ Thermal Imager, 640x480, 60 Hz

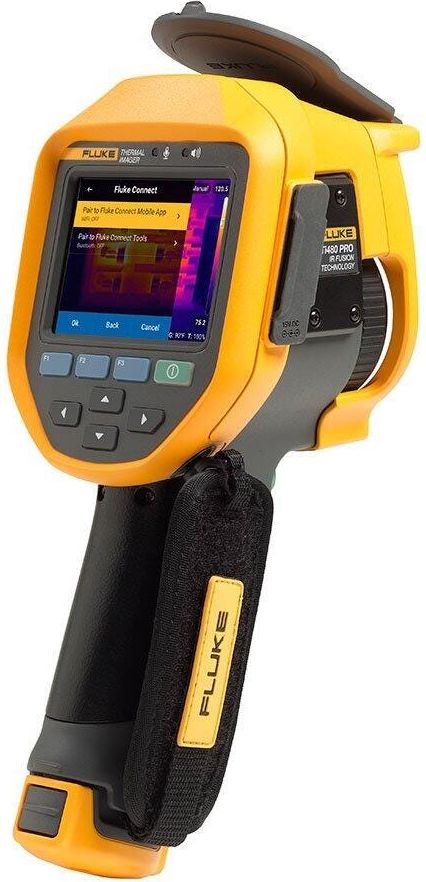

The Fluke Ti480 PRO is a professional-grade thermal imager built around a 640 x 480 infrared detector (307,200 pixels) capturing at 60 Hz, delivering the high-resolution imagery that thermographers and maintenance teams need to find and document small temperature differences. Its SuperResolution mode captures and combines four times the data to produce a 1280 x 960 (614,400 pixel) image, while a multi-mode focusing system keeps targets sharp: MultiSharp Focus rapidly captures and merges multiple images into one in-focus result across the entire field of view, LaserSharp Auto Focus and an on-board laser distance meter lock focus on the intended target, and an advanced manual focus is available when needed.

Designed for one-handed field use, the Ti480 PRO pairs a 3.5 inch landscape 640 x 480 LCD touchscreen with a rugged, ergonomic body. IR-Fusion technology blends visible-light detail from the built-in 5 MP camera with the infrared image to add context, and on-screen emissivity, reflected-background-temperature, and transmission corrections support accurate readings. WiFi connectivity and Fluke Connect compatibility let captured images upload automatically for saving, sharing, asset assignment, and work-order creation. The camera also accepts interchangeable Fluke infrared smart lenses (macro, telephoto, and wide-angle) that swap between compatible cameras without recalibration.

Key Features

• 640 x 480 infrared detector (307,200 pixels) capturing at 60 Hz for high-resolution thermal imaging
• SuperResolution mode captures and combines 4x the data to create a 1280 x 960 (614,400 pixel) image
• Multi-mode focus system: MultiSharp Focus for near-and-far in-focus images, LaserSharp Auto Focus, an on-board laser distance meter, and advanced manual focus
• 3.5 inch landscape 640 x 480 LCD touchscreen in a rugged, ergonomic body for one-handed use, with 2x and 4x digital zoom
• Temperature measurement up to 1000 C (1832 F) with +/-2 C or 2% accuracy and thermal sensitivity (NETD) of <=0.05 C at 30 C
• On-screen emissivity, reflected-background-temperature, and transmission correction for accurate readings
• IR-Fusion technology with AutoBlend and Picture-In-Picture, combining a built-in 5 MP visible-light camera with the infrared image
• WiFi connectivity and Fluke Connect compatibility for automatic image upload, sharing, asset assignment, and work orders; accepts interchangeable macro, telephoto, and wide-angle infrared smart lenses

The Fluke TI480-PRO 60HZ Thermal Imager, 640x480, 60 Hz # FLK-TI480-PRO 60HZ is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
