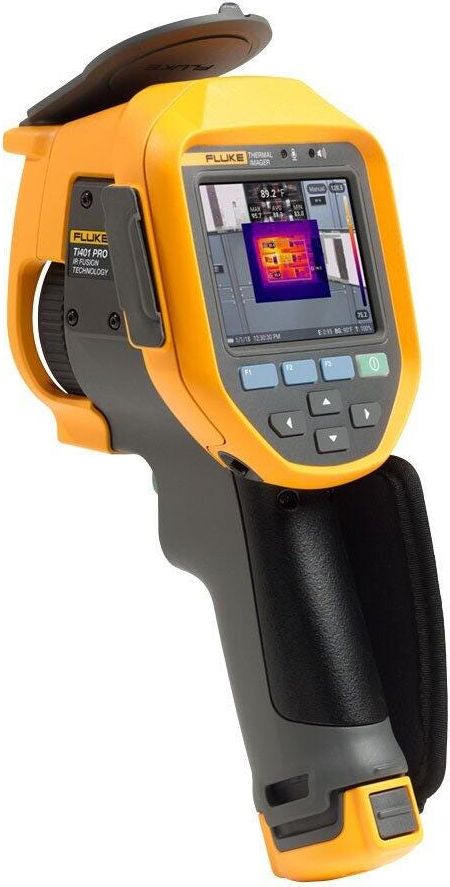

TI401-PRO 60HZ Thermal Imager, HS1, 60 Hz

The Fluke Ti401 PRO is a rugged, handheld thermal imaging camera built for industrial preventive maintenance, electrical and mechanical inspection, and building diagnostics. It pairs 640 x 480 infrared resolution (307,200 pixels) with a wide field of view, giving even novice thermographers the detail and flexibility to capture critical issues in tight spaces or from a distance before they become failures. This is the 60 Hz (high-speed) version, suitable for certified and uncertified thermographers across most industrial environments.

LaserSharp Auto Focus uses a built-in laser distance meter to calculate the distance to a target and lock in a sharp, in-focus image in seconds, while patented IR-Fusion technology blends infrared and visible-light detail for clearer context. With temperature measurements up to 650 C, a 3.5-inch ruggedized touchscreen, and one-handed pistol-grip operation, the Ti401 PRO is engineered for everyday field use. Captured images and full radiometric data flow into Fluke Connect software for asset tagging, trend analysis, and professional reporting.

Key Features

• 640 x 480 infrared resolution (307,200 pixels) for fine detail and faster anomaly detection, plus a 5 MP built-in visible-light camera
• 60 Hz (high-speed) frame rate for capturing fast-changing thermal events
• LaserSharp Auto Focus with built-in laser distance meter delivers consistently in-focus images; advanced manual focus also available
• Patented IR-Fusion technology blends infrared and visible light, with nine standard and nine Ultra Contrast color palettes
• Temperature measurement range of -20 C to +650 C (-4 F to +1,202 F) with +/-2 C or 2% accuracy and thermal sensitivity of <=0.075 C (75 mK)
• 3.5-inch ruggedized touchscreen with smooth auto/manual level and span; rugged pistol-grip design for one-handed use
• Fluke Connect software and app compatibility for radiometric data capture, asset tagging, trend analysis, and report generation
• Field-tested durability: IP54 rating, engineered to withstand a 2 meter (6.5 ft) drop, two field-replaceable lithium-ion batteries, and a two-year warranty

The Fluke TI401-PRO 60HZ Thermal Imager, HS1, 60 Hz # FLK-TI401-PRO 60HZ is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
