Detex Voltage Detector, 3.6-36.5 kV (Indoor, White LED)
SKU: 514440-3
Indoor non-contact voltage detector for grounded AC systems, 3.6-36.5 kV operating range. Bright white LED indicator (no audible beeper) for clear visibility in poor indoor lighting. Integrated 48 in (1219 mm) telescopic pole retracts to 34 in for storage. Self-test pushbutton verifies operation before use. Vinyl carrying case included.
List price. Volume pricing available.
DETEX Voltage Detector, White LED Indicator

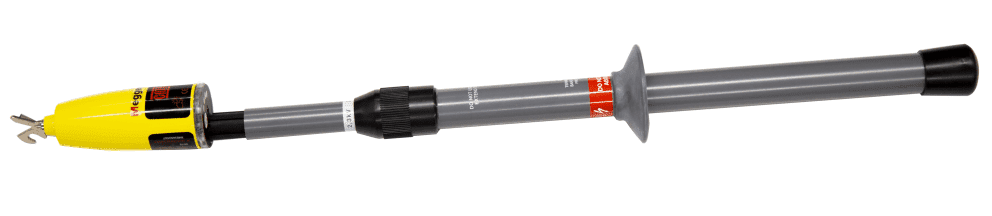

The Megger 514440-3 is a DETEX white LED indicating voltage detector designed for use in indoor testing of grounded AC systems. The detector is equipped with a 48-inch telescopic pole that retracts to 34 inches for convenient storage in the included vinyl carrying case.
The bright LED indicator provides easy visibility in poor lighting conditions. During testing, the presence of voltages within the detector's operating range (3.6 to 36.5 kV) will illuminate the bright LED lamp.
A built-in piezoelectric voltage source provides a test feature to ensure that the detector is operative before use. The self-test is activated by a pushbutton.
DETEX Voltage Detectors are available in seven models that cover a range from distribution class to transmission line voltages up to 550 kV. Megger offers six electronic “beeper” models and one model with a white LED indication for greater visibility when testing indoors.
Key Features
- White LED indicating voltage detector for greater visibility
- Operating voltage range: 3.6 to 36.5 kV
- Minimum voltage (phase to ground): 2.1 kV
- Nominal system voltage range, 50/60 Hz (phase to phase): 4.16 to 34.5 kV
- 48-inch telescopic pole
- Designed for indoor testing of grounded AC systems
- Self-test feature ensures the detector is operative before use
- Pole retracts to 34-inches for convenient storage
- Vinyl carrying case included
The Megger Detex Voltage Detector, 3.6-36.5 kV (Indoor, White LED) # 514440-3 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681This product is part of a family with 7 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
2.3-7.2 kV (Hot-Stick Mount) 514360-8 | $2,305.00 | View Details → |
3.6-36.5 kV (Indoor, White LED)Current 514440-3 | $2,100.00 | Viewing |
4.0-14.5 kV (Hot-Stick Mount) 514360-5 | $2,280.00 | View Details → |
11.7-36.2 kV (Hot-Stick Mount) 514360-6 | $2,290.00 | View Details → |
24.3-72.5 kV (Hot-Stick Mount) 514360-7 | $2,290.00 | View Details → |
67-235 kV (Hot-Stick Mount) 514242-1 | $3,415.00 | View Details → |
200-550 kV (Hot-Stick Mount) 514242-2 | $3,415.00 | View Details → |
