154 US/CAN HART Calibration Assistant, US, Canada
SKU: FLUKE-154 US/CAN
The Fluke 154 HART Communicator is a standalone tablet based tool that wirelessly connects to the HART transmitter. See the specs or talk with an engineer.
List price. Volume pricing available.
The Fluke 154 HART Communicator is a standalone tablet based tool that wirelessly connects to the HART transmitter. See the specs or talk with an engineer.
Key Features
- Full HART Device Description (DD) support of all HART devices
- Configure HART devices
- Perform HART trim on HART devices when used with a Fluke 750 or 720 series calibrator
- Monitor device PV, SV, TV, QV and other measured HART variables
- Convenient wireless connectivity to HART modem
- Easy to use, fast connect and view HART data
- Store HART device configurations
- Long range wireless communication up to 250 feet
The Fluke 154 US/CAN HART Calibration Assistant, US, Canada FLUKE-154 US/CAN is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Operating system | Android 5.0 or newer |
| Processor | ARM or Atom |
| Memory RAM | 1 GB |
| Memory ROM | 2 GB |
| Screen | 960x540 qHD |
| Communication port | Bluetooth |
| Material | High strength ABS Plastic |
| Dimensions | 10.16 x 2.5 x 6.9 cm (4 x 1 x 2.75 in) |
| Total unit weight | 0.16 kg (0.36 lbs) |
| HART cable length | 4 ft (1.2 m) |
| HART cable connectors | Mini-Grabber |
| General | HART Interface |
| Interface | Capacitive coupling |
| Output | 600 mVpp |
| Leakage | < 10 uA |
| Connections | Across loop resistor or HART field device |
| Specifications | HART 4, HART 5, HART 6, HART 7 |
| HART physical layer spec | HCF_SPEC-54 |
| Specification | Bluetooth v2.0 |
| Frequency | 2.4 GHz |
| Class 1 master distance | 275 ft (83.8 m) |
| Type | Rechargeable Li-Ion |
| Life | 19 hours continuous use |
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage temperature | -10 °C to 45 °C (-14 °F to 113 °F) |
| Humidity | 0% to 90% (non-condensing) |
Related Products

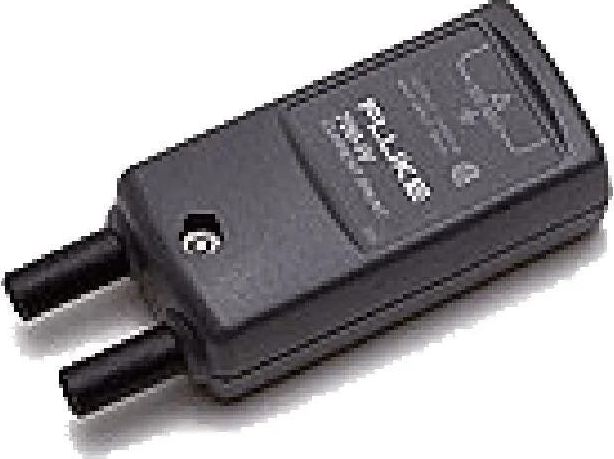

700-IV Current Shunt
Very accurate current shunt to use for verification and calibration of process control loops.
700TLK Process Calibration Deluxe Test Lead Kit
Deluxe test lead kit for Fluke process calibrators: three stackable lead sets, three alligator clip sets, mini-clips and a carrying case.

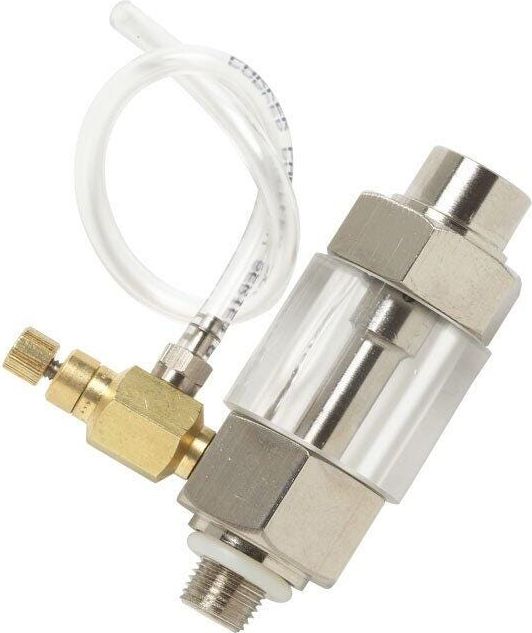

71X-TRAP Trap, Liquid Dirt, Generic
Fluke Calibration 71XTrap Liquid-Dirt Trap Shields 718, 719 & 729 Pressure Calibrators from Moisture; Protects the Pump and Hose from Contamination

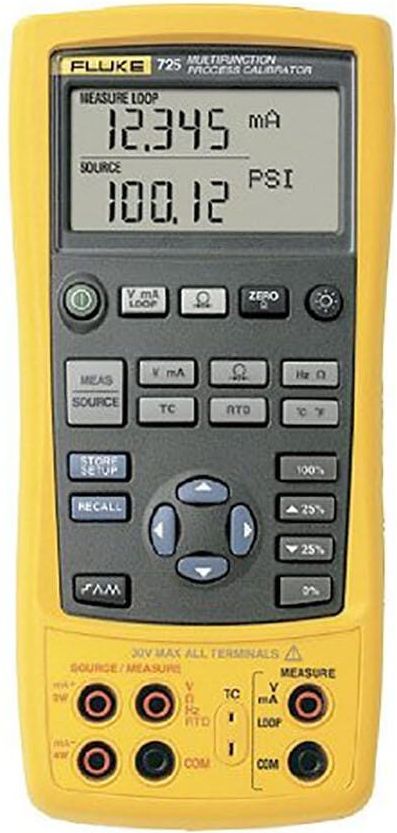

725 US Multifunction Process Calibrator
