PS4550 Power Quality Analysis System, eFX6000 Probes
SKU: PK4564-PRO
PS4550 system with four eFX6000 flexible probes, plus the LDCm line-to-DC converter, USB communications cable, and Bluetooth adapter. Includes PSM-A software and 1-year Deluxe Warranty.
List price. Volume pricing available.
PS4550 system with four eFX6000 flexible probes, plus the LDCm line-to-DC converter, USB communications cable, and Bluetooth adapter. Includes PSM-A software and 1-year Deluxe Warranty.
The PowerSight PS4550 Power Quality Analysis System, eFX6000 Probes # PK4564-PRO is manufactured by PowerSight. Valley Instrument Service is an authorized PowerSight dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Size | 3.89″ (9.86 cm) W x 7.72″ (19.61 cm) L x 1.58″ (4.01 cm) Deep at bottom end; 2.14″ (5.44 cm) Deep at top end |
| Weight | 1.1 lbs (0.5 kg) |
| Operating Range | 32 - 122 degrees F (0 - 50 degrees C) Relative humidity to 70% (non-condensing) |
| Power Requirement | 12V DC @ 500 mA |
| Battery Life | 8-10 hours after 4 hour charge |
| Battery Type | Li-ion |
| Sampling Rate | 8 microseconds for Voltage and Current |
| Safety | 600V CAT IV, 1000V CAT III |
| SD Card Slot | Accepts SD Cards to 32GB |
| Logging Period (Resolution) | 1 Second - 99 Minutes |
| Logging Duration (Length of session) | up to 2 years according to memory allocation |
| Communications | Bluetooth Wireless and USB at 460.8 kbps, Wi-Fi optional |
| Voltage Range | 1-1000 Vrms Steady-State (direct input) |
| Voltage Display Range | 1-6000 kV (using input ratios) |
| Voltage Accuracy | ±0.1% of reading ±0.3 Vrms |
| Current Range | Depends on probes |
| Current Display Range | 1 mA - 6 Megamps (using input ratios) |
| Current Accuracy | ±0.1% of reading plus accuracy of probes |
| Frequency Range | DC, 22 - 200 Hz, 360 - 440 Hz Fundamental |
| Frequency Accuracy | ±0.25% |
| Harmonics Range | 22 - 3000 Hz (50th Harmonic @ 50/60 Hz) |
| Harmonics Accuracy | ±0.25% |
| Trigger Swell/Sag (Dip)/Inrush | 1/2 Cycle RMS |
| Trigger Transient Detection | 8 microseconds, instantaneous |
| Trigger Harmonics Accuracy | ±0.25% |
This product is part of a family with 4 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
PK4514 | $6,370.00 | View Details → |
PK4564 | $7,285.00 | View Details → |
PK4564-PROCurrent | $7,635.00 | Viewing |
PK4564-PRO+ | $8,310.00 | View Details → |
Related Products
PS2500 Power Logging System, HA1000 Probes
PS2500 power logging system with four HA1000 clamp-on current probes (to 1,000 A), voltage leads, SCAS4 soft carrying case, and PSM-A software.

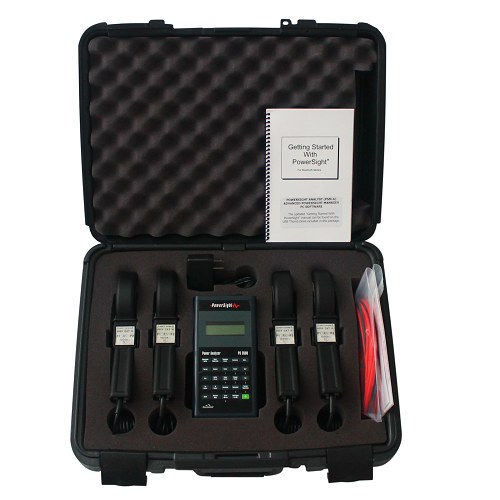

PS3550 Power Analysis System, HA1000 Probes
