PS3550 Power Analysis System, eFX6000 Probes
SKU: PK3564

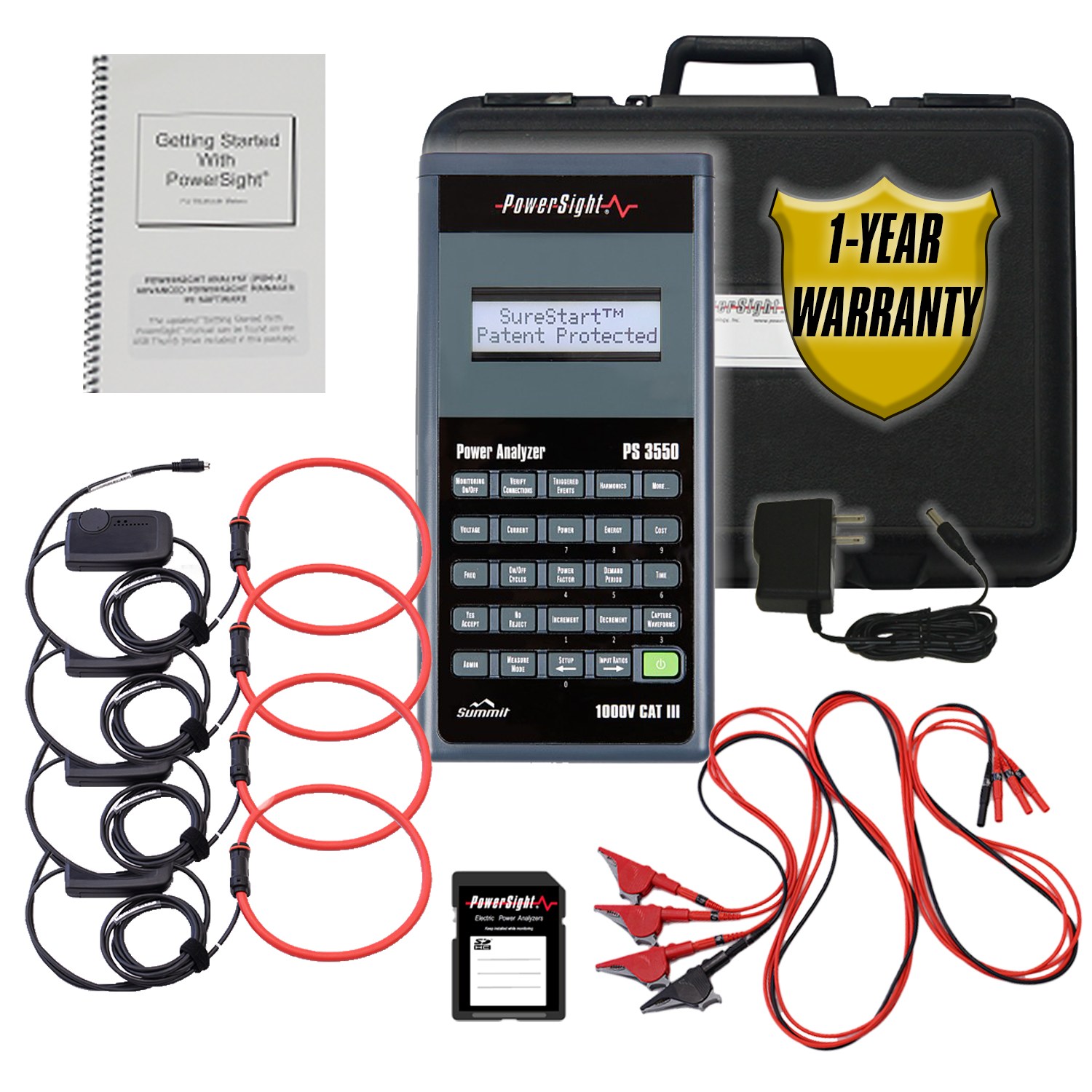

PS3550 power analysis system with four eFX6000 flexible current probes (1 to 6,000 A), deluxe voltage leads, hard shell case, SD card, wall charger, PSM-A software, and 1-year Deluxe Warranty.
List price. Volume pricing available.
PS3550 power analysis system with four eFX6000 flexible current probes (1 to 6,000 A), deluxe voltage leads, hard shell case, SD card, wall charger, PSM-A software, and 1-year Deluxe Warranty.
The PowerSight PS3550 Power Analysis System, eFX6000 Probes # PK3564 is manufactured by PowerSight. Valley Instrument Service is an authorized PowerSight dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Size | 3.88″ (9.86 cm) W x 7.72″ (19.61 cm) L x 1.58″ (4.01 cm) Deep at bottom end; 2.14″ (5.44 cm) Deep at top end |
| Weight | 1.1 lbs (0.5 kg) |
| Operating Range | 32 - 122 degrees F (0 - 50 degrees C) Relative humidity to 70% (non-condensing) |
| Power Requirement | 12V DC @ 500 mA |
| Battery Life | 8-10 hours after 4 hour charge |
| Battery Type | Li-ion |
| Measurement Rate | 8 microseconds for Voltage and Current |
| Safety | 600V CAT IV, 1000V CAT III |
| SD Card Slot | Accepts SD Cards to 32GB |
| Logging Period (Resolution) | 1 Second - 99 Minutes |
| Logging Duration (Length of session) | up to 2 years according to memory allocation |
| Internal Data Retention | 8 years |
| Other Features | Crest Factor, K Factor, Peak Demand Period, Peak Demand of Peak, Demand Period. Duty Cycle, On/Off Cycle %, Avg. On Time, Avg Off Time |
| Voltage Display Range | 1-6000 kV (using input ratios) |
| Voltage Meter Resolution | 0.1V (to 400 V), 1V (to 4 kV) |
| Voltage Accuracy | 0.5% of reading ±0.3 Vrms |
| Current Display Range | 1 mA - 6 Megamps (using input ratios) |
| Current Meter Display Resolution | 0.1A |
| Current Accuracy | ±0.5% of reading plus accuracy of probes |
| Current Phasor Diagram | via PC |
| Current Imbalance | via PC |
| Frequency Range | DC: 45-66 Hz, 360-440 Hz fundamental |
| Frequency Meter Display Resolution | 0.1 Hz (to 66.0 Hz) |
| Frequency Accuracy | ±0.5% |
This product is part of a family with 4 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
PK3514 | $4,160.00 | View Details → |
PK3564Current | $4,440.00 | Viewing |
PK3564-PRO | $4,790.00 | View Details → |
PK3564-PRO+ | $5,465.00 | View Details → |
