1673FC Installation Tester with Fluke Connect & TruTest Software (Schuko)
SKU: 1673FC SCH FTT
Multifunction installation tester with Fluke Connect wireless and TruTest reporting software. Insulation resistance, earth ground, loop/line resistance, voltage, frequency, and polarity. Schuko (CEE 7/7) plug.
List price. Volume pricing available.

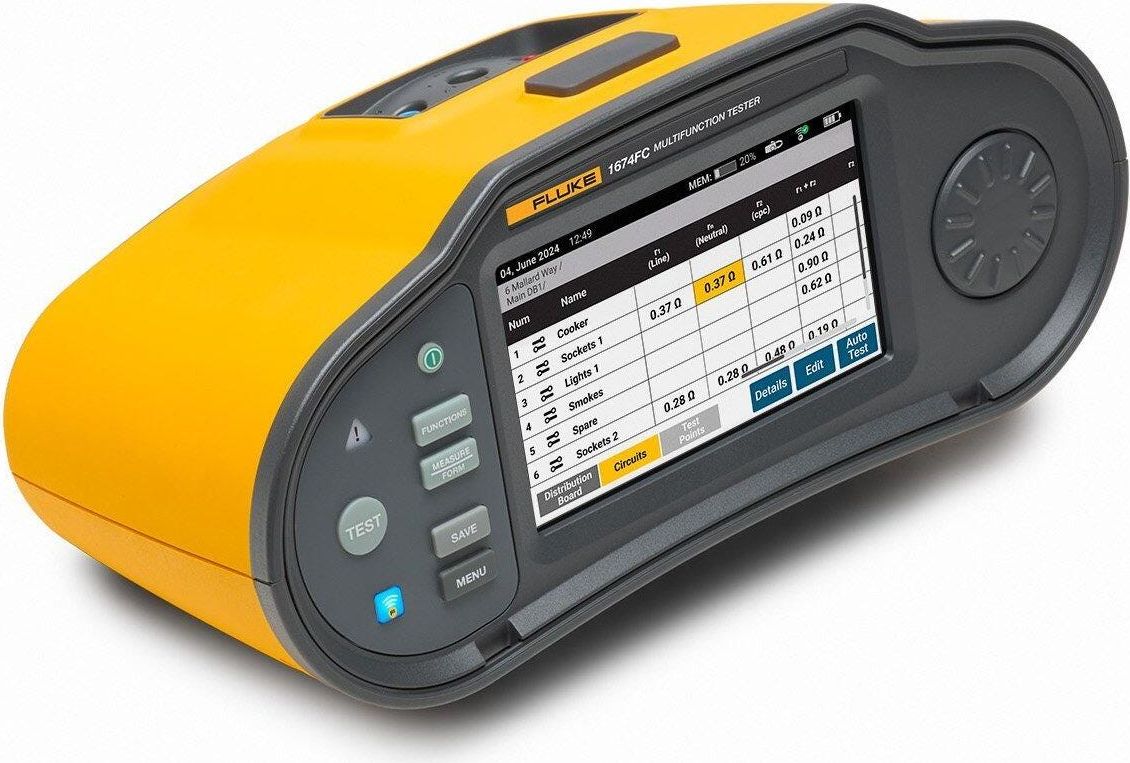

The 1670 Series features a touchscreen interface, integrated data management, wireless connectivity, and comprehensive reporting for electrical standards testing.
Key Features
- Simple bidirectional user interface eliminates complex multi-level menus
- Easy setup with the full-color touch screen
- Fast, accurate testing with Auto Test and Automatic Measurement Validation
- Fluke Connect compatibility eliminates tedious data entry
- Preview results and generate certificates on site with Fluke TruTest software
The Fluke 1673FC Installation Tester with Fluke Connect & TruTest Software (Schuko) # 1673FC SCH FTT is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Specification | Characteristic |
| Size | 26.25 cm x 14.19 cm x 11.93 cm (10.3 in x 5.6 in x 4.7 in) |
| Weight (incl. batteries) | 1.6 kg (3.5 lb) |
| Battery size, quantity | BP290, Li-ion, 10.8 V, 2500 mAh, 27 Wh |
| Ingress Protection | IEC 60529: IP40 |
| Safety | Complies with IEC/EN 61010-1, IEC 61010-2-030, IEC 61010-2-034 |
| Safety rating | CAT III 600 V, CAT IV 300 V |
| Performance | IEC 61557-1 to IEC/EN 61557-8 and IEC 61557-10 |
| Range | Resolution |
| 600 V | 0.1 V |
| 45-66 Hz | 0.1 Hz |
| Range (Auto ranging) | Resolution |
| 20 Ω/200 Ω/2000 Ω | 0.01 Ω/0.1 Ω/1 Ω |
| 1672 | 100-250-500-1000 V |
| 1673 FC/1674 FC | 50-100-250-500-1000 V |
| Test Voltage | Insulation Resistance Range |
| 50 V | 10 kΩ to 50 MΩ |
| 100 V | 10 kΩ to 20 MΩ20 MΩ to 100 MΩ |
| 250 V | 10 kΩ to 20 MΩ20 MΩ to 200 MΩ |
| 500 V | 10 kΩ to 20 MΩ20 MΩ to 200 MΩ200 MΩ to 500 MΩ |
| 1000 V | 100 kΩ to 200 MΩ200 MΩ to 1000 MΩ |
| Insulation safety pretest | Connections from the Tester to L, N, and PE are required. |
| 1 kΩ | > 1 MΩ only available with voltages >100 V |
| 10 kΩ to 100 kΩ | 10 kΩ |
| 100 Ω to 3 MΩ | 100 kΩ |
| Range Setting | Resolution |
| 10 Ω[2] | 0.001 Ω |
| 20 Ω | 0.01 Ω |
| 200 Ω | 0.1 Ω |
| 2000 Ω | 1 Ω |
| 0 kA to 50 kA | IK IK ≥ 1000 A |
| 0.0-99.9% | 0.1% |
| RCD Type[1] | 1672 |
| AC[2] | G[3] |
| AC | S[4] |
| A[5], F[6] | G |
| A, F | S |
| B, B+[7] | G |
| B, B+ | S |
| 10 mA | 30 mA |
| x½, 1 | • |
| x5 | • |
| Ramp | • |
| Auto | • |
| Step Size | Dwell Time |
| Type G | Type S |
| 30 % to 110 % of RCD-rated current[1] | 10 % of IΔN [2] |
| 200 Ω/2000 Ω | 0.1 Ω/1 Ω |
| Phase Sequence indicator is active | 185 V to 600 V |
This product is part of a family with 4 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
1673FC SCH FTTCurrent | $2,869.99 | Viewing |
1673FC US FTT | $2,869.99 | View Details → |
FLUKE 1673FC SCH | $2,499.99 | View Details → |
FLUKE 1673FC US | $2,499.99 | View Details → |
