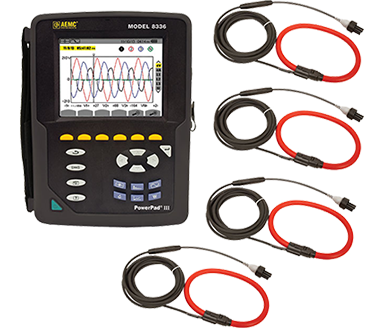

PowerPad AmpFlex III Model 8336 w/4 193-24-BK Sensors (replaces 8335 Series)

Cat. #2136.31 bundles the PowerPad III Model 8336 with four 193-24-BK AmpFlex flexible current sensors — well-suited for measuring large conductors and switchgear where rigid clamps don't fit.

The PowerPad III Model 8336 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600 V CAT IV. The Model 8336 has 2 GB of memory available for storing trend data. Additional internal memory is used to let you store alarms, transients, and snapshot data. The user can store up to 50 screen snapshots, up to 210 captured transients that contain four cycles for each active input, and 10,000 alarm events from up to 40 different parameters. Trend data can also be recorded for days, weeks or even months. Inrush current can also be captured and stored. IMPORTANT WARRANTY NOTE: By registering online within 30 days from the date of purchase, your warranty will be extended to 3 years.

The AEMC Instruments PowerPad AmpFlex III Model 8336 w/4 193-24-BK Sensors (replaces 8335 Series) # 2136.31 is manufactured by AEMC Instruments. Valley Instrument Service is an authorized AEMC Instruments dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
