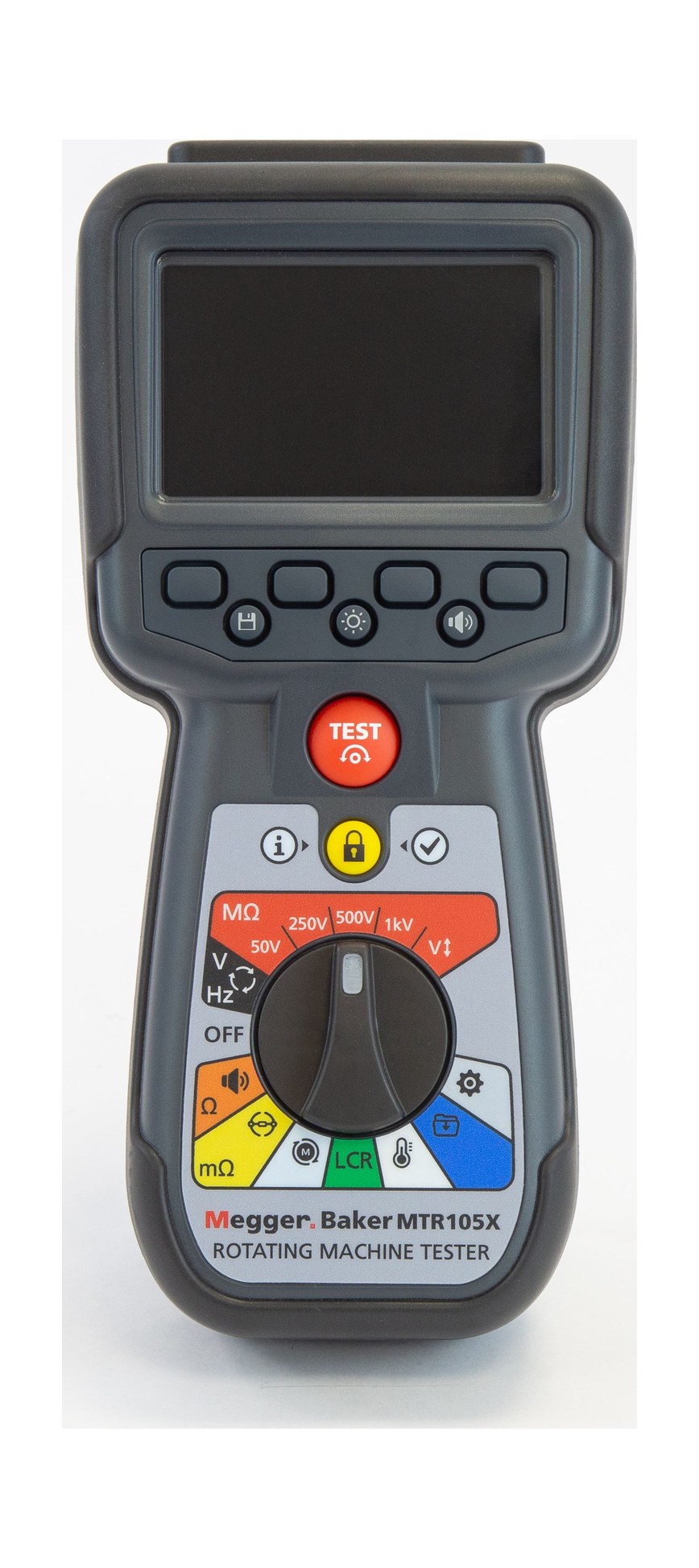

MTR105X Rotating Machine Tester with Bluetooth
SKU: 1017-030
Bluetooth version of the MTR105 static motor tester: insulation resistance with guard terminal, DLRO four-wire Kelvin low resistance, inductance and capacitance tests, temperature compensation, and motor direction plus supply phase rotation. CertSuite live streaming, IP54.
List price. Volume pricing available.
Handheld Rotating Machine Tester with Bluetooth Reporting
The Megger MTR105X is the Bluetooth-connected version of the MTR105 dedicated static motor tester: CertSuite LITE and BLE enable real-time testing and reporting with onboard storage and secure wireless connectivity.
The instrument combines Megger insulation resistance testing with a DLRO four-wire Kelvin low resistance test plus inductance and capacitance measurement, packaged as a versatile handheld motor tester. Temperature measurement with compensation for insulation tests, motor direction of rotation, and supply phase rotation tests round out real-world motor diagnostics.
A guard terminal eliminates surface-leakage error, detachable test leads take interchangeable clips and probes, and results for up to 256 motors store onboard for USB download. The rotary dial and full graphic display keep operation simple, and the rubber over-molded case achieves an IP54 weatherproof rating.
Key Features
- Bluetooth with CertSuite LITE real-time testing and reporting
- Insulation resistance suite with guard terminal
- DLRO four-wire Kelvin low resistance test
- Inductance and capacitance measurement
- Temperature measurement and insulation-test compensation
- Motor direction of rotation and supply phase rotation tests
- Stores results for 256 motors with USB download
- Rotary dial control with full graphic display
- IP54 over-molded housing; detachable lead sets with interchangeable clips and probes
The Megger MTR105X Rotating Machine Tester with Bluetooth # 1017-030 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Test Functions | Insulation resistance, DLRO 4-wire Kelvin low resistance, inductance, capacitance |
| Motor Tests | Direction of rotation; supply phase rotation |
| Temperature | Measurement with insulation-test compensation |
| Wireless | Bluetooth: CertSuite LITE |
| Data Storage | 256 motors, USB download |
| Ingress Protection | IP54 |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
MTR105 Handheld Motor Tester 1010-361 | $2,730.00 | View Details → |
MTR105X Rotating Machine Tester with BluetoothCurrent 1017-030 | $2,940.00 | Viewing |
Accessories, replacement sensors, and parts for this product family.
| Model | Price | |
|---|---|---|
Temperature Probe - T Type, CAT III 600V 1012-067 | $109.20 | View Details → |
Grabber Clip Leadset 1012-069 | $69.30 | View Details → |
Test Probe Set - Long Reach - CAT II 1012-065 | $23.10 | View Details → |
Test Probe Set - Long Reach - CAT IV 1012-066 | $23.10 | View Details → |
Related Products

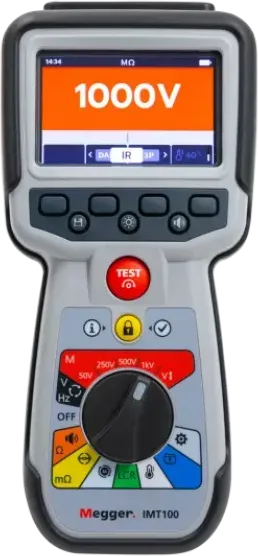

IMT100 Industrial Multifunction Tester
