PVK350 Photovoltaic Kit

Photovoltaic Test Kit (irradiance meter, solar clamp meter and specialist PV test leads kit)

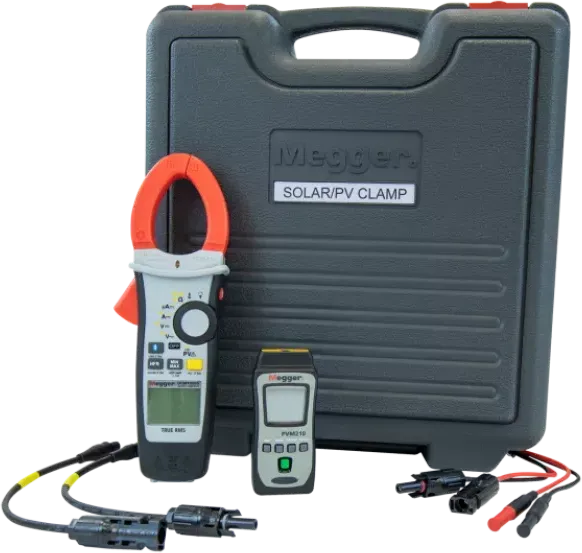

The Megger PVK350 is a photovoltaic test kit. When installing, commissioning and testing a photovoltaic installation, additional instrumentation is required to accompany the usual electrician’s test equipment. The PVK350 photovoltaic kit offers the additional equipment needed combining the DCM1500S AC/DC solar clamp meter, PVM210 irradiance meter and a range of specialist PV test leads, supplied in a single protective hard carry case.

The PVM210 is a pocket size instrument that works as both a solar detector and meter combined in one unit. It permits single handed use, ideal for working at height and on sloping roofs.

The meter has a 3-3/4-digit display and a maximum range of 1999 W/m2. The hold function allows easy measurements of solar power. The measured result can be displayed in W/m2 or BTU (British Thermal Unit).

The DCM1500S clamp meter provides measurements up to 2000 VDC and 1500 VAC on non-mains connected circuits (using the PVHV leads), as well as 1500 A AC or DC. In addition to voltage and current measurement the DCM1500S can measure resistance, diodes, capacitance, temperature and frequency.

Key Features

• Photovoltaic kit for installation, commissioning and testing of photovoltaic systems
• DCM1500S AC/DC solar clamp meter measures up to 2000 VDC and 1500 VAC
• PVM210 irradiance meter for optimal incident angle and positioning of solar panels
• PVHV1 (4 mm) test leads
• PVHV2 (PV) test leads
• PV solar connectors to 4 mm test leads
• PV conversion adaptor test leads
• TP100 K-Type Thermocouple probe

The Megger PVK350 Photovoltaic Kit # 1014-805 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
