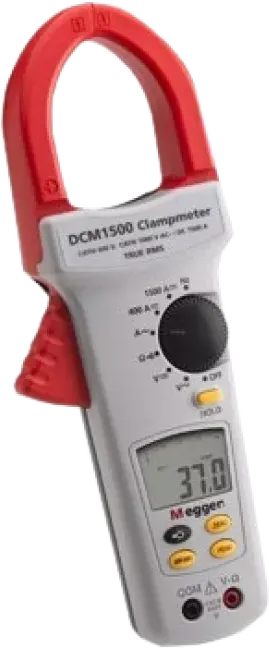

DCM1500S Solar 1500 A Clamp Meter

Measuring up to 2000 V DC and 1500 V AC (using the PVHV Leads), as well as 1500A AC or DC, the DCM1500S is ideal for use in the installation, maintenance, monitoring and testing of photovoltaic systems as well standard AC or DC electrical equipment.

The meter is supplied with both standard 4mm leads as well as the new PVHV1 (4mm) and PVHV2 (MC4PV) HV lead sets. It has a large clear backlit display and an automatic torch in the jaw to assist use in poorly lit areas.

Using the free Megger Link App, the measurement value can be remotely monitored on a smart device using the built-in Bluetooth. This will give a live trend graph and offer the ability to sample and log the values for later analysis.

The smart data-hold expands the standard hold function by giving the operator an audible warning if the “held” reading increases by 50 counts or above. Min/Max hold provides the ability to measure the maximum and minimum values over a period of time, with each value selectable in turn.

Other features include a High Frequency Rejection Filter, inrush current measurement, internal data logging, a non-contact volt seek mode and manual DC Amp zeroing.

Key Features

• 2000 V DC
• TRMS 1500 V AC
• 1500 A AC/DC
• Smart Hold
• Auto ranging
• MIN/MAX Hold
• Inrush Current
• Megger Link app compatible
• CAT IV 600V / CAT III 1000V
• Data logger
• PV test leads with MC4PV plugs

The Megger DCM1500S Solar 1500 A Clamp Meter # 1013-357 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
