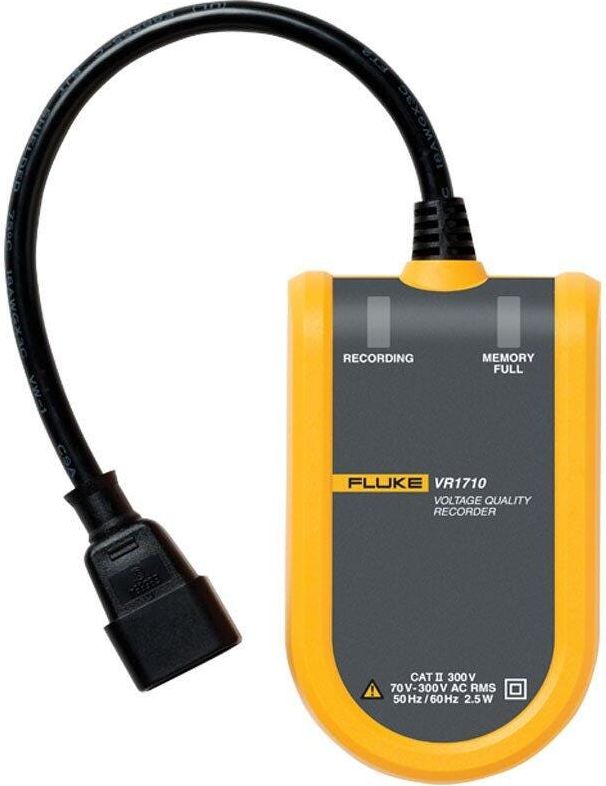

VR1710 Voltage Quality Recorder
SKU: FLUKE-VR1710
Detect and record parameters including RMS average, transients, flicker, and harmonics with the Fluke VR1710, a single phase voltage recorder.
List price. Volume pricing available.
Detect and record parameters including RMS average, transients, flicker, and harmonics with the Fluke VR1710, a single phase voltage recorder.
Key Features
- Single-phase, plug-in voltage quality recorder for detecting and recording power quality problems
- Records voltage trends, dropouts, and power quality to pinpoint the root cause
- Plugs directly into the mains power socket to capture data
- Presents a clear graphical summary of data and a quick overview of key power quality parameters
The Fluke VR1710 Voltage Quality Recorder # FLUKE-VR1710 is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications |
| Operating voltage | 70 V to 280 V |
| Min/Max/Avg RMS value | Resolution 0.125 V |
| Number of events | 175,000 |
| Dips/interruptions | Yes |
| Time resolution | 5 ms |
| Voltage resolution | 0.125 V |
| Over-voltages | Yes |
| Frequency | Yes |
| Harmonics measurement | EN 61000-4-7 (up to 32nd) |
| Flicker measurement | EN 61000-4-15and Delta V/V% |
| Number of recording channels | 2 Phase/Neutral to Ground |
| Recording time | 1 day to 339 days depending on average time from 1 second to 20 minutes |
| Transients | Yes |
| Frequency range | 50 Hz ±1 Hz and 60 Hz ±1 Hz |
| Safety category rating | CAT II 300 V |
