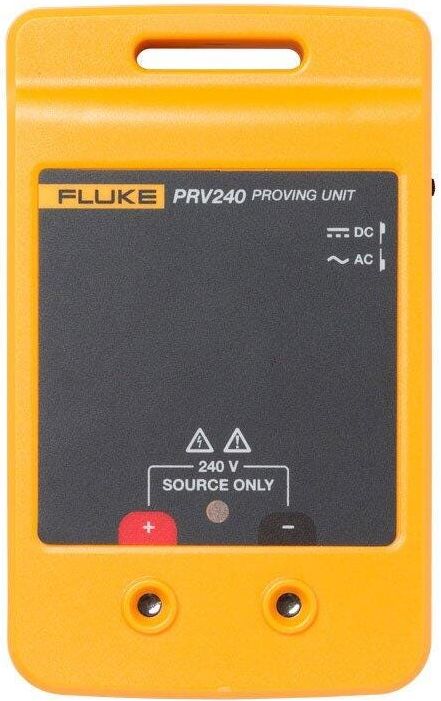

PRV240 Proving Unit
SKU: PRV240
The Fluke PRV240 is pocket-size proving unit that allows you to easily and safely verify that your multimeters, clamp meters and voltage testers are functioning correctly for AC and DC voltage measurements.
List price. Volume pricing available.
The Fluke PRV240 is pocket-size proving unit that allows you to easily and safely verify that your multimeters, clamp meters and voltage testers are functioning correctly for AC and DC voltage measurements.
Key Features
- Validate test tool functionality outside of hazardous zones
- Supplies 240 V, both DC and AC
- Compatible with both high or low impedance test tools
The Fluke PRV240 Proving Unit # PRV240 is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | General Specifications |
| Output voltage | 240 V ac rms or dc |
| LED power indicator | Turns on when output voltage is present |
| Battery | 4 AA Alkaline batteries NEDA |
| Battery life | 5000 (5-second duration) test cycles with >1 MΩ load, 300 tests minimum with >3 kΩ load |
| Operating temperature | -10 °C to +50 °C |
| Operating humidity | 0 % to 90 % (0 °C to 35 °C)0 % to 70 % (35 °C to 55 °C) |
| Operating altitude | 2000 m |
| Dimensions | 11.7 cm x 7.4 cm x 2.8 cm (4.6 in x 2.9 in x 1.1 in), Pollution Degree 2 |
| Weight | 0.23 kg (8 oz) includes batteries |
| Safety | IEC61010-1, IEC61010-2-030 |
| Warranty | One-year |
| IEC 61326-1 | Portable EM environment; CISPR 11, Group 1, Class A |
| US (FCC) | 47 CFR 15 subpart B, this product is considered an exempt device per clause 15.103 |
| Korea (KCC) | Class A Equipment (Industrial Broadcasting & Communication Equipment) |
