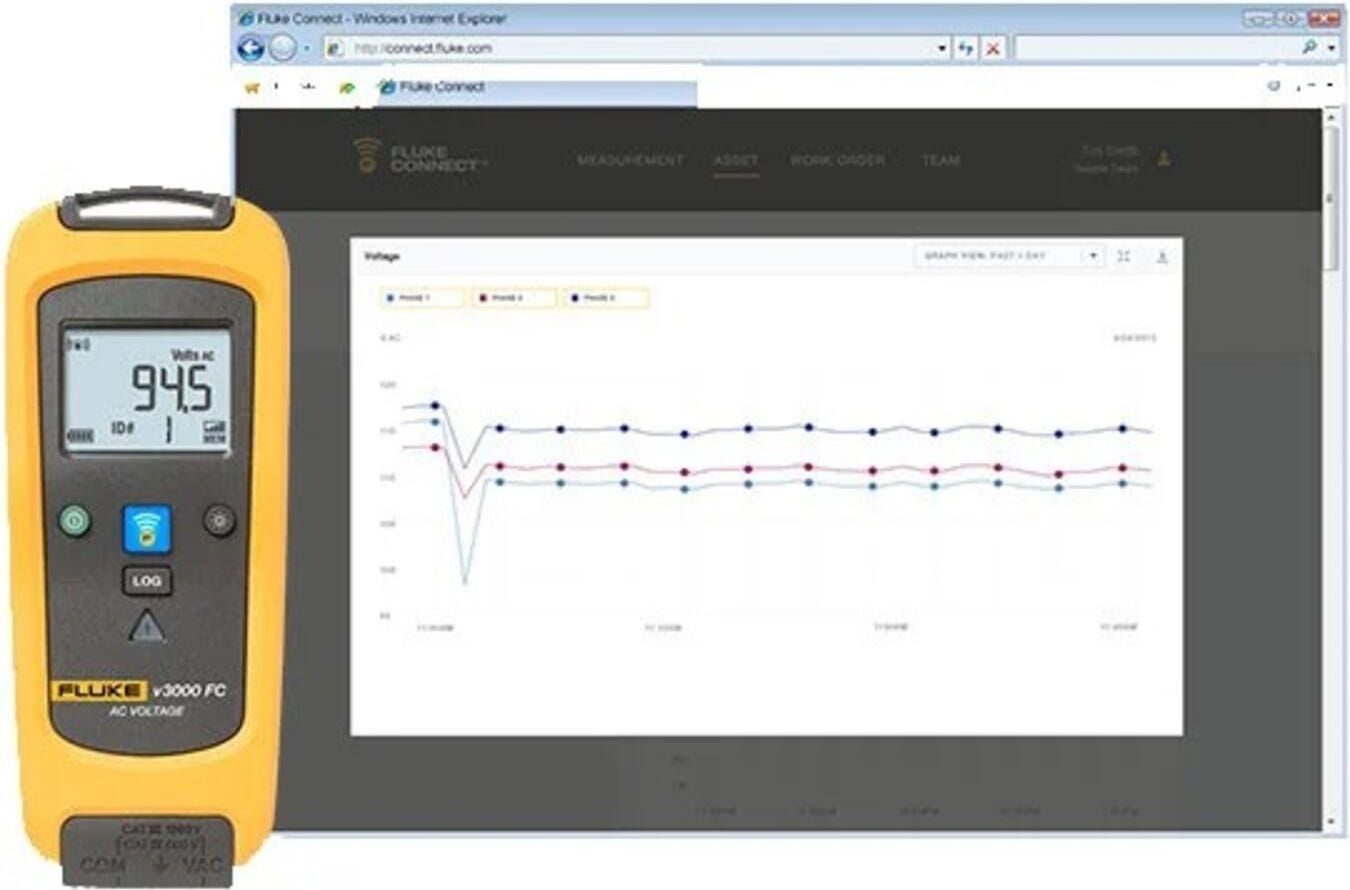

V3000FC Wireless AC Voltage Module FC
SKU: FLK-V3000FC
A fully functional AC voltage meter that wirelessly relays AC voltage measurements to other Fluke Connect enabled master units
List price. Volume pricing available.
A fully functional AC voltage meter that wirelessly relays AC voltage measurements to other Fluke Connect enabled master units
Key Features
- Fluke 3000 FC DMM
- Fluke Ti200/300/400 Infrared Camera
- PC via optional pc3000 FC Adapter
- Fluke Connect Mobile app
The Fluke V3000FC Wireless AC Voltage Module FC # FLK-V3000FC is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications |
| Range¹ / Resolution | 6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V1000 V / 1 V |
| 45 Hz to 500 Hz | 1.0% + 3 |
| 500 Hz to 1 kHz | 2.0% + 3 |
| Accuracy234 | General Specifications |
| LCD w/backlight | 3½ digits, 6000 counts, updates 4/sec |
| Battery type | 2 AA, NEDA 15 A, IEC LR6 |
| Battery life | 400 Hours |
| Memory | Record up to 65000 readings |
| RF communications | 2.4 GHZ ISM Band |
| Open air, unobstructed | Up to 20 m |
| Obstructed, sheetrock wall | Up to 6.5 m |
| Obstructed, concrete wall or steel electrical enclosure | Up to 3.5 m |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -40°C to +60°C |
| Temperature coefficient | 0.1 X (specified accuracy)/°C ( 28°C) |
| Operating humidity | 90% at 35°C, 45% at 40°C, 45% at 50°C |
| Operating | 2,000 m |
| Storage | 12,000 m |
| EMC | EN 61326–1:2006 |
| ANSI/ISA 61010–1 / (82.02.01) | 3rd edition |
| CAN / CSA–C22.2 No 61010–1–12 | 3rd edition |
| UL 61010–1 | 3rd edition |
| IEC/EN 61010–1 | 2010 |
| Safety rating | CAT IV 600 V, CAT III 1000 V |
| Certifications | CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE |
| Ingress Protection (IP) rating | IP42 |
| Pollution Degree | 2 |
| Size (HxWxD) | 16.5 x 6.35 x 1.4 cm (6.5 x 2.5 x 1.4 in) |
| Weight | .22 kg (8 oz) |
| Warranty | Three years |
| Safety compliance | Note: Not compatible with Fluke CNX test tools |
