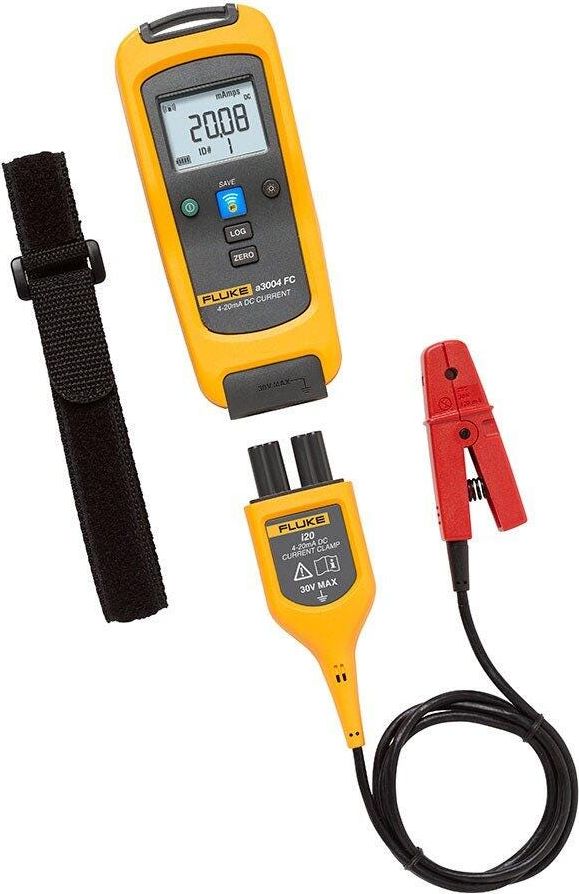

a3004FC Wireless 4-20 Milliamp DC Clamp Meter
SKU: FLK-A3004FC
The a3004 FC Wireless DC Current Clamp Meter is a fully functional current clamp meter that wirelessly relays measurements to other Fluke Connect enabled master units.
List price. Volume pricing available.
The a3004 FC Wireless DC Current Clamp Meter is a fully functional current clamp meter that wirelessly relays measurements to other Fluke Connect enabled master units.
Key Features
- Fluke 3000 FC DMM
- Fluke Ti200/300/400 Infrared Camera
- PC via optional pc3000 FC Adapter
- Fluke Connect Mobile app
- TiX560 and TiX520
The Fluke a3004FC Wireless 4-20 Milliamp DC Clamp Meter # FLK-A3004FC is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | DC Current Function |
| Range | 0.05 mA to 20.99 mA DC21.0 mA to 99.9 mA DC |
| Resolution | 0.01 mA0.1 mA |
| Accuracy | 0.2% ± 5 digits1.0% ± 5 digits |
| LCD w/backlight | 3 ½ digits |
| Log rate/Interval | 1 sec minimum/adjustable by PC or front pannel |
| Battery type | 2 AANEDA 15 AIEC LR6 |
| Battery life | 45 hours |
| Memory | Record up to 65,000 readings |
| RF communications | 2.4 GHz ISM Band |
| RF communication range | Open air, unobstructed: Up to 20 mObstructed, sheetrock wall: Up to 6.5 mObstructed, concrete wall or steel electrical enclosure: Up to 3.5 m |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -40°C to +60°C |
| Temperature coefficient | Add 0.1 X (specified accuracy) /°C ( 28°C) |
| Operative humidity | 90% at 35°C75% at 40°C45% at 50°C |
| Altitude | Operating 2,000 mStorage 12,000 m |
| EMC | EN 61326-1:2013 |
| Maximum voltage between terminal and earth ground (module) | 30 V DC or AC rms |
| Certifications | CSA C-USCEFCC: T68-FBLEIC: 6627A-FBLE |
| Ingress Protection (IP) rating | IP42 |
| Jaw opening | 4.5 mm |
| Size (HxWxD) | 16.5 mm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in) |
| Weight | 0.299 kg (0.8 lb) |
