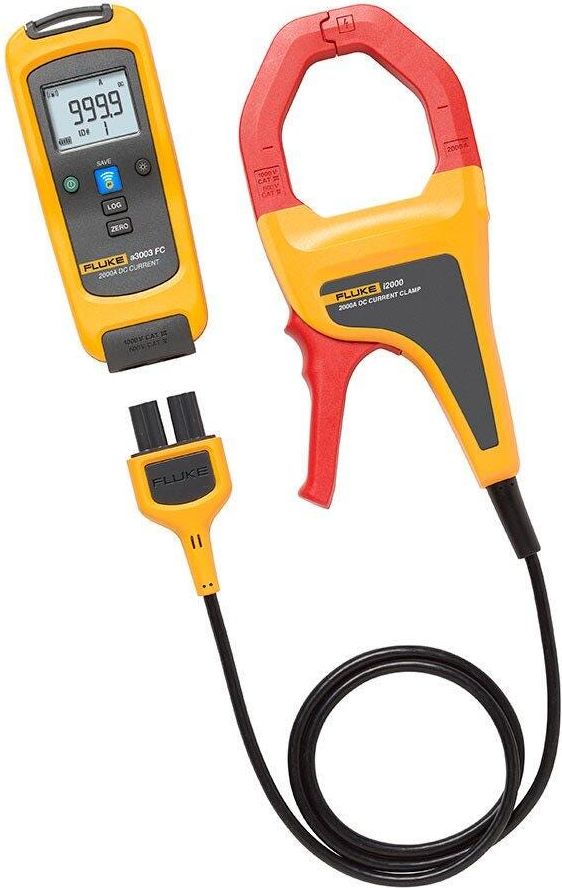

a3003FC Wireless 2000 amp DC Clamp Meter
SKU: FLK-A3003FC
The a3003 FC wirelessly relays measurements from current clamp accessories to other Fluke Connect enabled master units.
List price. Volume pricing available.
The a3003 FC wirelessly relays measurements from current clamp accessories to other Fluke Connect enabled master units.
Key Features
- Fluke 3000 FC Digital Multimeter
- Fluke Ti200/300/400 Infrared Camera
- PC via optional pc3000 FC Adapter
- Fluke Connect Mobile app
- TiX560 and TiX520
The Fluke a3003FC Wireless 2000 amp DC Clamp Meter # FLK-A3003FC is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | DC Current Function |
| Range | 1.0A to 999.9 A DC1000 A to 2000 A DC |
| Resolution | 0.1 A1 A |
| Accuracy | 2% ± 5 digits2.5% ± 5 digits |
| LCD w/backlight | 3 ½ digits |
| Log rate/Interval | 1 sec minimum/adjustable by PC or front pannel |
| Battery type | 2 AANEDA 15 AIEC LR6 |
| Battery life | 120 hours |
| Memory | Record up to 65,000 readings |
| RF communications | 2.4 GHz ISM Band |
| RF communication range | Open air, unobstructed: Up to 20 mObstructed, sheetrock wall: Up to 6.5 mObstructed, concrete wall or steel electrical enclosure: Up to 3.5 m |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -40°C to +60°C |
| Temperature coefficient | Add 0.1 X (specified accuracy) /°C ( 28°C) |
| Operative humidity | 90% at 35°C75% at 40°C45% at 50°C |
| Altitude | Operating 2,000 mStorage 12,000 m |
| EMC | EN 61326-1:2013 |
| Safety compliance | IEC 61010-1600 V CAT IV / 1000 V CAT III3rd edition |
| Certifications | CSA C-USCEFCC: T68-FBLEIC: 6627A-FBLE |
| Ingress Protection (IP) rating | IP42 |
| Jaw opening | 64 mm |
| Size (HxWxD) | 16.5 mm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in) |
| Weight | .65 kg (1.75 lb) |
