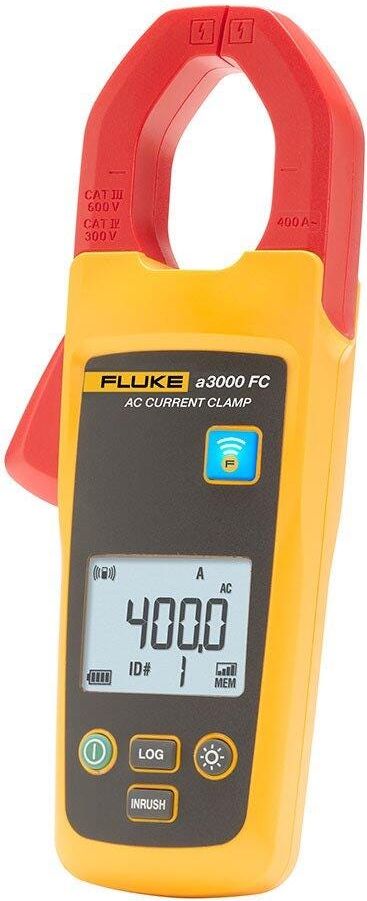

a3000FC Wireless AC Current Clamp FC
SKU: FLK-A3000FC
A fully functional true-rms current clamp meter that wirelessly relays measurements to other Fluke Connect enabled master units
List price. Volume pricing available.
A fully functional true-rms current clamp meter that wirelessly relays measurements to other Fluke Connect enabled master units
Key Features
- Fluke 3000 FC DMM
- Fluke Ti200/300/400 Infrared Camera
- PC via optional pc3000 FC Adapter
- Fluke Connect Mobile app
The Fluke a3000FC Wireless AC Current Clamp FC # FLK-A3000FC is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications |
| Range | 0.5 A to 400.0 A |
| Resolution | 0.1 A |
| Accuracy | 400.0 A: 2% ± 5 digits (10 Hz to 100 Hz), 2.5% ± 5 digits (100 Hz to 500 Hz) |
| Inrush | Max displayed reading |
| Crest factor (50 Hz/60 Hz) | 3 at 500 A2.5 at 600 A1.42 at 1000 AAdd 2 % for C.F. > 2 |
| LCD w/backlight | 3½ digits |
| Log rate/interval | 1 sec minimum/adjustable by PC |
| Battery type | 2 AA, NEDA 15 A, IEC LR6 |
| Battery life | 400 hours |
| Memory | Record up to 65,000 readings |
| RF communications | 2.4 GHZ ISM Band |
| Open air, unobstructed | Up to 20 m |
| Obstructed, sheetrock wall | Up to 6.5 m |
| Obstructed, concrete wall or steel electrical enclosure | Up to 3.5 m |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -40°C to +60°C |
| Temperature coefficient | Add 0.1 x (specified accuracy) / °C ( 28°C) |
| Operating humidity | 90% at 35°C75% at 40°C45% at 50°C |
| Operating | 2,000 m |
| Storage | 12,000 m |
| EMC | EN 61326-1:2006 |
| Safety compliance | IEC 61010-1, 600 V CAT III, 3rd edition Pollution Degree 2 |
| Safety rating | CAT III 600 V |
| Certifications | CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE |
| Ingress Protection (IP) rating | IP30 |
| Pollution Degree | 2 |
| Jaw opening | 34 mm (1.33 in) |
| Size (HxWxD) | 20.3 cm x 7.49 cm x 3.55 cm (8 in x 2.95 in x 1.4 in) |
| Weight | .22 kg (8 oz) |
| Warranty | Three years |
| Altitude | Note: Not compatible with Fluke CNX test tools |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
FLK-A3000FCCurrent | $304.99 | Viewing |
FLK-A3000FC KIT | $639.99 | View Details → |
