1AC-II VoltAlert Non-Contact Voltage Tester, 90-1000V AC
SKU: FLUKE-1AC-A1-II

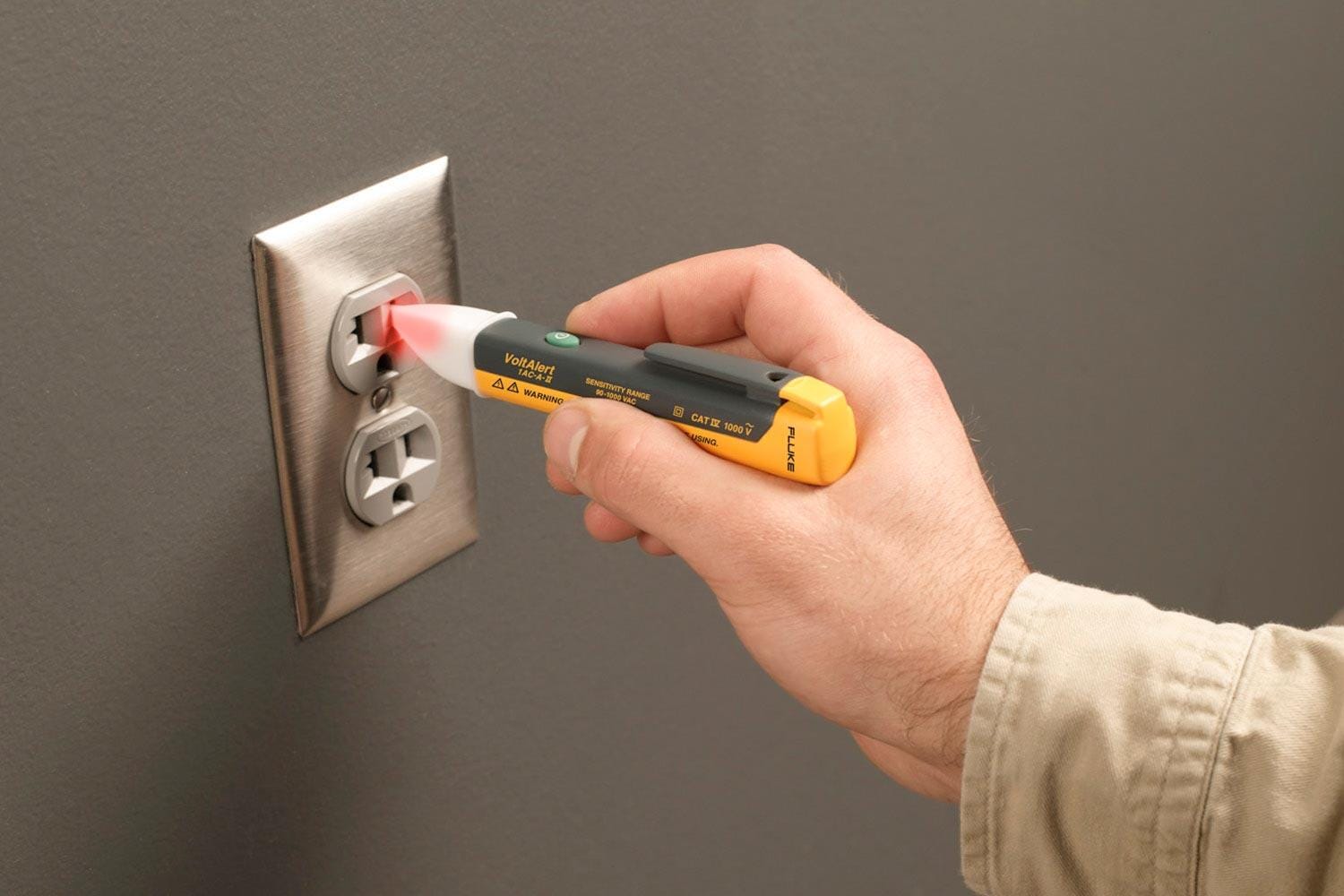

The Fluke 1AC-II VoltAlert is a non-contact voltage tester for quickly testing energized circuits from 90 to 1000V AC. Pen-style form factor with visual glow tip indicator.
List price. Volume pricing available.
Safely test for energized circuits with the easy to use non-contact voltage tester Fluke 1 AC II electrical tester pen or tic tracer. Even detect miss-wires of an electrical outlet.
Key Features
- Be aware of voltage easily - the tip glows red and a beeper sounds when voltage is detected
- Continuous self-test so you always know it’s working
- Voltage detection range for wide application use - 90 V to 1000 V AC or 200 V to 1000 V AC
- Audible/Silent mode for added convenience
The Fluke 1AC-II VoltAlert Non-Contact Voltage Tester, 90-1000V AC # FLUKE-1AC-A1-II is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications |
| Operating Principles | Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage. |
| Voltage sensing ranges | Nominally, 90 V AC to 1000 V AC |
| Detector tip style | Flat-tip |
| Light source | One high intensity red LED |
| Agency Approvals | |
| Safety | IEC 61010-1: Pollution Degree 2, IEC 61010-2-030: CAT IV 1000 V |
| EMC | IEC 61326-1: Portable |
| IP Rating | IP 40 |
| Operating Temperature | -10°C to 50°C (-14°F to 122°F) |
| Operating Humidity Ranges | 0% to 75% (30°C to 40°C) |
| Operating Altitude | 3000 m |
| Cleaning | Clean with damp cloth |
| Batteries | 2 AAA alkaline batteries included |
| Battery Life | Typical battery life of greater than 1 year |
| Warranty Period | Two years |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
FLUKE-1AC-A1-IICurrent | $44.99 | Viewing |
FLK-1AC-A1-II-5PK | $205.99 | View Details → |
