DM286 Industrial Thermal Imaging Multimeter with Datalogging/METERLiNK App and IGM
SKU: DM286
The Flir DM286 industrial imaging multimeter is the ultimate tool for electrical inspectors seeking a safe, accurate, and efficient way to identify, document, and share findings. With IGM (Infrared Guided Measurement) and MSX (Multi-Spectral Dynamic Imaging), you can safely identify where hazards might be before contact is ever made. The powerful multimeter can capture and store up to 30,000 images and 100 log files, with the ability to record thermal and visual video clips. Stream live data in real time from the DM286 to your mobile device. Use the Meterlink app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing.
List price. Volume pricing available.
The FLIR DM286 industrial imaging multimeter is the ultimate tool for electrical inspectors seeking a safe, accurate, and efficient way to identify, document, and share findings. With IGM (Infrared Guided Measurement) and MSX (Multi-Spectral Dynamic Imaging), you can safely identify where hazards might be before contact is ever made. The powerful multimeter can capture and store up to 30,000 images and 100 log files, with the ability to record thermal and visual video clips. Stream live data in real time from the DM286 to your mobile device. Use the Meterlink app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing.
The FLIR DM286 Industrial Thermal Imaging Multimeter with Datalogging/METERLiNK App and IGM DM286 is manufactured by FLIR. Valley Instrument Service is an authorized FLIR dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| IR Resolution | 160 × 120 (19,200 pixels) |
| Display Counts | 6000 |
| AC/DC Voltage | 1000 V AC RMS ±(1.0％＋3) 1000 V DC ±(0.09%+3) |
| AC/DC Amps | 10.00 A AC RMS ±(1.5%+3) 10.00 A DC ±(1.0%+3) |
| Connectivity | Bluetooth BLE |
| Color Palettes | Iron, rainbow, arctic, white hot, and black hot |
| Field of view - visual | 71° × 56° |
| Focus | Fixed |
| Frame Rate | 9 Hz |
| Image Modes | Thermal MSX (Multi Spectral Dynamic Imaging) / Thermal Camera only / Digital Camera only / |
| IR Sensitivity | 150 mK (0.15°C) |
| Spectral Response | 8–14 µm |
| Thermal Imaging Detector | FLIR Lepton® microbolometer |
| Visual Focus and FOV | Fixed focus, 71° × 56° FOV |
| Visual Resolution | 2 MP (1600 × 1200 pixels) |
| AC/DC LoZ V | 1000 V AC RMS or 1000 V DC ±(1.3%+4) |
| AC/DC mVolt | AC 600.0 mV ±(1.0％＋3) DC 600.0 mV±(0.2%+3) |
| Calibration Cycle | Once per year, recommended |
| Capacitance | 10.00 mF ±(4.0%+5) |
| Contact Temperature Type K thermocouple | -40°C to 400°C DMM ± (1.0% + 3°C) / IGM ± (1.0% + 5°C) / (-40°F to 752°F DMM ± (1.0% + 5.4°F) / IGM ± (1.0% + 9°F) |
| Continuity check threshold | 10–100Ω |
| Diode Test | 1.500 V ± 0.9% |
| Frequency Counter | 100.00 kHz ±(0.1%+5) |
| Measuring Rate | 3 samples per second |
| Resistance | 6.000 MΩ ±(0.9%+5), 60.00 MΩ ±(3.0%+5) |
| Temperature Accuracy | ±3°C (5.4°F) or ± 3% of the reading (whichever is greater) for temperatures > 25°C (77°F) ±5°C for temperatures -10°C to 25°C (14°F to 77°F) |
| Temperature Range | –5°C to 300°C (23°F to 572°F) |
| Temperature Resolution | 0.1°C (0.1°F) |
| Thermal Sensitivity | 150 mK (0.15°C) |
| VFD | AC V: 1000 V AC RMS, ±(1.3%+4) at 45∽65 Hz |
| Communication Protocol | METERLiNK |
| Image File Format | Radiometric |
| Storage | 40,000 readings per memory set |
| Storage Media | eMMC 4GB |
| Stored Image Capacity | up to 30,000 |
| Video Recording | 50 minutes maximum duration / 20 seconds max duration for file transmission |
| Display | 2.8" |
| Display Brightness | High, Medium, Low |
| Auto Power Off | For Meter: set to OFF, 2, 5, or 10 minutes / For Worklight only: set to OFF, 5, 15, or 30 minutes |
| Battery | TA04, Lithium Polymer Rechargeable, 3050 mAh. Two supplied. |
| Battery Life | Approx. 6.5 hours in IGM mode with display brightness set to medium. / Approx. 10 hours in Multimeter mode (medium brightness) |
| Non_Contact Voltage Detector [NCV] | Yes |
| Dimensions (L x W x H) | 20 cm × 9.6 cm × 5.6 cm (7.9 in × 3.8 in × 2.2 in) |
| Included | 1 x DM286 Industrial Thermal Imaging Multimeter / 1 set of CATIV 600V Test Lead / 1 set of CATIV 600V Alligator Clip / 1 x Type-A to Micro-USB Cable (with Data transfer capability) / 1 x K-type Thermocouple (-30°C to 260°C) / 1 x Soft-sided carrying case / 1 x FLIR Quick Start Guide / 1 x FLIR Warranty Card / 2 x TA04 Rechargeable Battery Cell / |
| Scanning Mode | Continuous scan. Crosshairs and laser pointer targeting. |
| Weight | 569 g (1.25 lb) without battery (approx.) |
| Worklights | x1 LED |
| Certifications | ETL, FCC, CE, RCM, UKCA, FDA, EN60825, EN50689 |
| Drop test | 2 m (6.6 ft) |
| EMC | EN61326-1 |
| Emissivity Settings | 0.10 to 1.00 (default is 0.95); select from four presets or set manually. |
| IP Rating | IP40 |
| Laser Pointer Power | ≤0.39 mW |
| Laser Type | Class I (red) |
| Laser Wavelength | 640 nm to 660 nm |
| Operating Altitude | 2000 m (6560 ft) |
| Operating Temp & Humidity | -10°C to 30°C (14°F to 86°F), <85% RH / 30°C to 40°C (86°F to 104°F), <75% RH / 40°C to 50°C (104°F to 122°F), <45% RH / |
| Pollution Degree | 2.0 |
| Safety | IEC 61010-1 CAT IV - 600 V, CAT III - 1000 V |
| Storage temperature and relative humidity [RH] | -20°C to 60°C (-4°F to 140°F), 0–80% RH (without batteries) |
| Software | FLIR METERLiNK® app |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
DM286Current | $1,200.00 | Viewing |
DM286-NIST | $1,400.00 | View Details → |
Related Products
DM266 Compact Thermal Imaging Multimeter with METERLiNK
The FLIR DM266 is a compact and intuitive True RMS multimeter with IGM (Infrared Guided Measurement) to quickly and safely pinpoint electrical issues. Its MSX (Multi-Spectral Dynamic Imaging) enhancement blends visible details with thermal images for clearer, faster diagnostics. Designed for portability, it supports safe charge-and-use capability for continuous operation. A remote control attached to the test leads lets you capture measurements and inspection scenes simultaneously, ideal for tight spaces and one-handed operation. Built-in tilt stand with a magnetic mount enables hands-free work. Super Resolution boosts thermal images from 160 × 120 to 320 × 240 for superior details. With the METERLiNK app, you can capture readings, review images and videos, and generate reports directly from your mobile device.

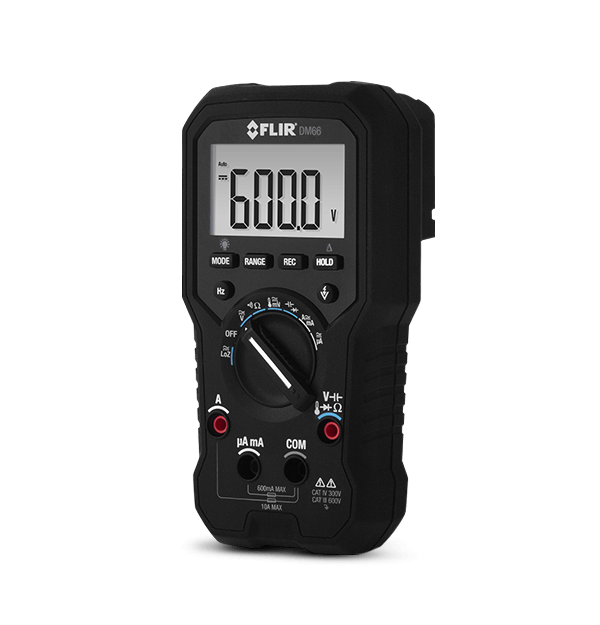

DM66 Electrical and Field Service TRMS Multimeter with Vfd Mode
The DM66 digital multimeter is ideal for automation field service or electronics technicians, providing a comprehensive feature set including low impedance (LoZ) mode, frequency, diode, capacitance, and a Type K thermocouple input for temperature measurement. The multimeter combines rich features, precise measurements, and quality construction into a tool of exceptional value. Easy to use and built to last, the DM66 offers long-term stability for everyday use.

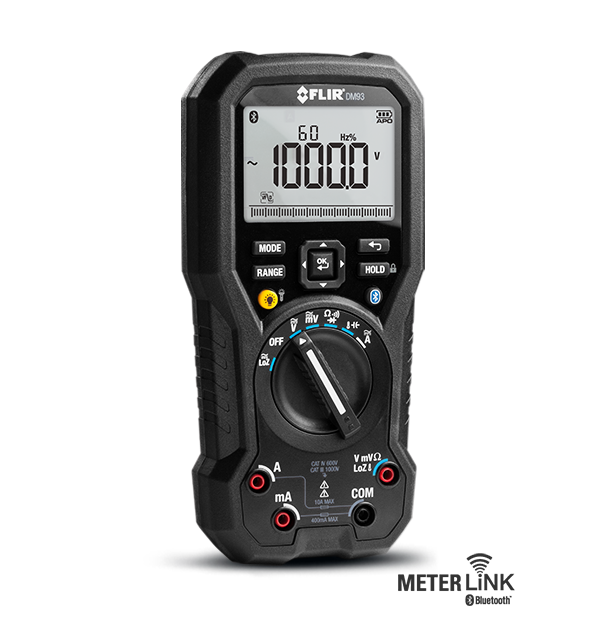

DM93-2 TRMS Industrial Multimeter
